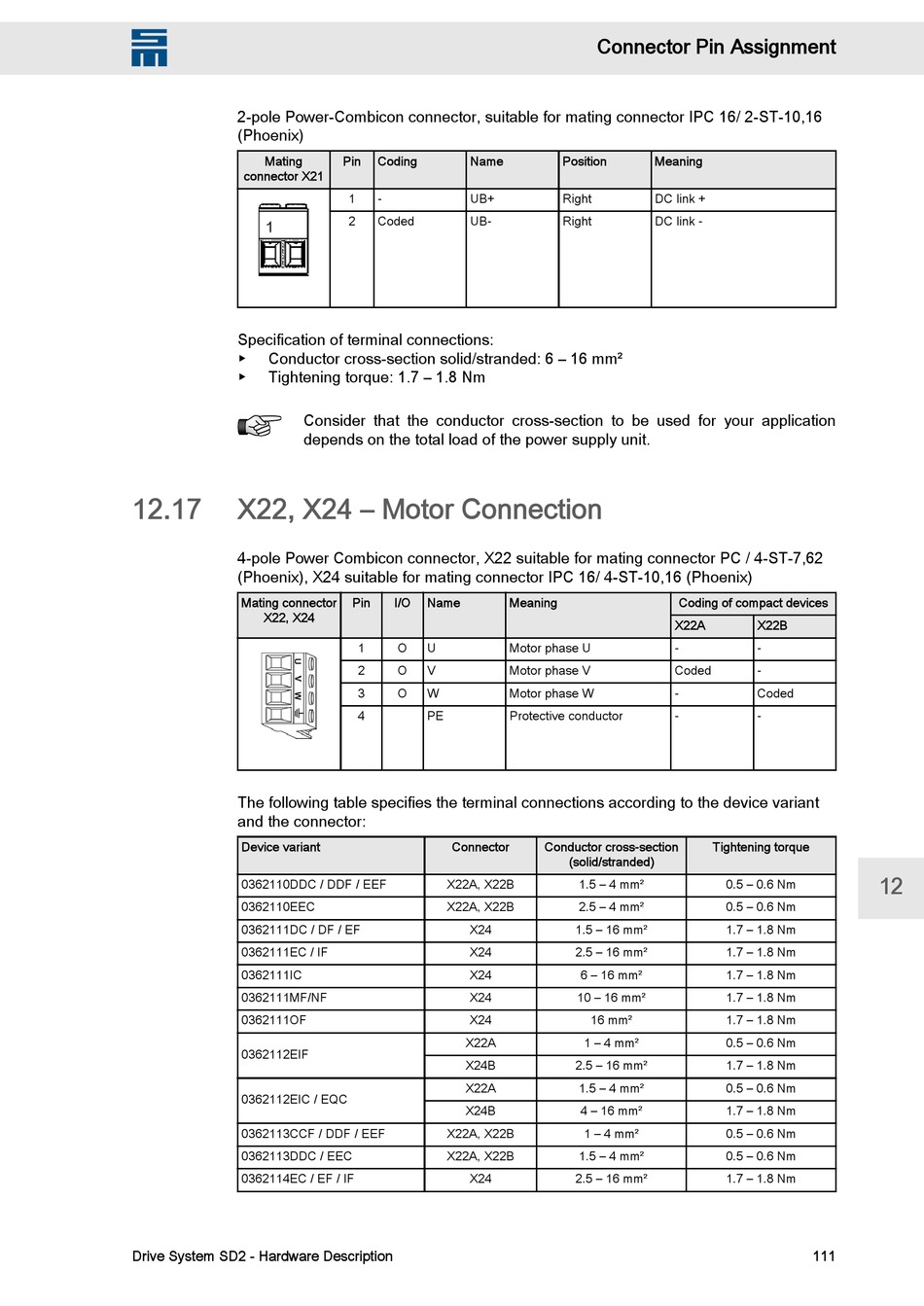

X22, X24 - Motor Connection - SIEB & MEYER SD2 Hardware Description

W
2-pole Power-Combicon connector, suitable for mating connector IPC 16/ 2-ST-10,16
(Phoenix)
Mating
connector X21
Specification of terminal connections:
▶ Conductor cross-section solid/stranded: 6 – 16 mm²
▶ Tightening torque: 1.7 – 1.8 Nm
Consider that the conductor cross-section to be used for your application
depends on the total load of the power supply unit.
12.17 X22, X24 – Motor Connection
4-pole Power Combicon connector, X22 suitable for mating connector PC / 4-ST-7,62
(Phoenix), X24 suitable for mating connector IPC 16/ 4-ST-10,16 (Phoenix)
Mating connector
X22, X24
The following table specifies the terminal connections according to the device variant
and the connector:
Device variant
0362110DDC / DDF / EEF
0362110EEC
0362111DC / DF / EF
0362111EC / IF
0362111IC
0362111MF/NF
0362111OF
0362112EIF
0362112EIC / EQC
0362113CCF / DDF / EEF
0362113DDC / EEC
0362114EC / EF / IF
Drive System SD2 - Hardware Description
Pin Coding Name
1 - UB+
2 Coded UB-
Pin I/O Name Meaning
1 O U Motor phase U
2 O V Motor phase V
3 O W Motor phase W
4 PE Protective conductor
Connector
X22A, X22B
X22A, X22B
X24
X24
X24
X24
X24
X22A
X24B
X22A
X24B
X22A, X22B
X22A, X22B
X24
Connector Pin Assignment
Position Meaning
Right DC link +
Right DC link -
Coding of compact devices
X22A
-
Coded
-
-
Conductor cross-section Tightening torque
(solid/stranded)
1.5 – 4 mm²
2.5 – 4 mm²
1.5 – 16 mm²
2.5 – 16 mm²
6 – 16 mm²
10 – 16 mm²
16 mm²
1 – 4 mm²
2.5 – 16 mm²
1.5 – 4 mm²
4 – 16 mm²
1 – 4 mm²
1.5 – 4 mm²
2.5 – 16 mm²
X22B
-
-
Coded
-
12
0.5 – 0.6 Nm
0.5 – 0.6 Nm
1.7 – 1.8 Nm
1.7 – 1.8 Nm
1.7 – 1.8 Nm
1.7 – 1.8 Nm
1.7 – 1.8 Nm
0.5 – 0.6 Nm
1.7 – 1.8 Nm
0.5 – 0.6 Nm
1.7 – 1.8 Nm
0.5 – 0.6 Nm
0.5 – 0.6 Nm
1.7 – 1.8 Nm
111
