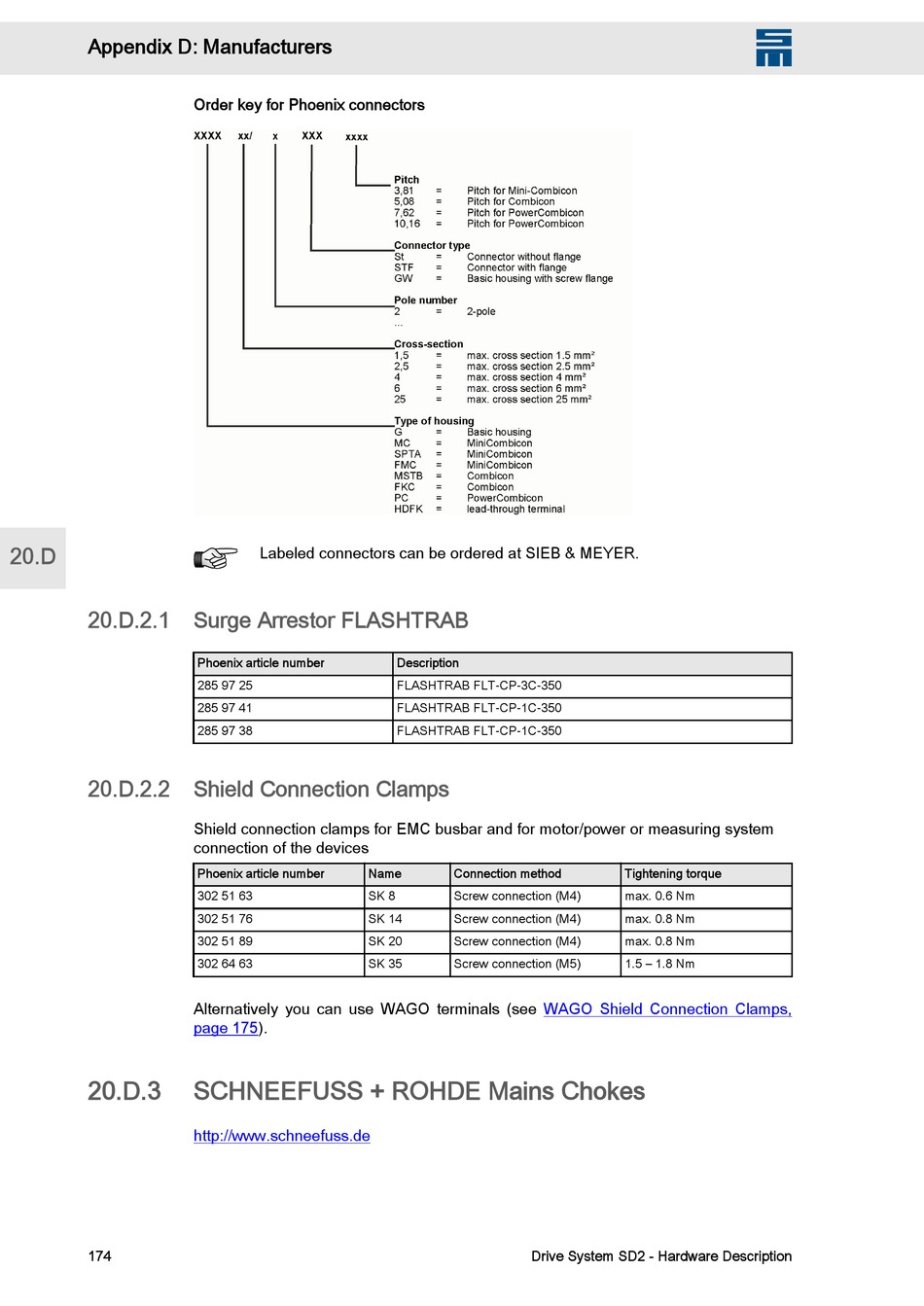

Order key for Phoenix connectors
Labeled connectors can be ordered at SIEB & MEYER.

Surge Arrestor FLASHTRAB

Phoenix article number
285 97 25
285 97 41
285 97 38

Shield Connection Clamps

Shield connection clamps for EMC busbar and for motor/power or measuring system
connection of the devices
Phoenix article number Name
302 51 63 SK 8
302 51 76 SK 14
302 51 89 SK 20
302 64 63 SK 35
Alternatively you can use WAGO terminals (see
page 175).

SCHNEEFUSS + ROHDE Mains Chokes

http://www.schneefuss.de
Description
FLASHTRAB FLT-CP-3C-350
FLASHTRAB FLT-CP-1C-350
FLASHTRAB FLT-CP-1C-350
Connection method
Screw connection (M4)
Screw connection (M4)
Screw connection (M4)
Screw connection (M5)
WAGO Shield Connection Clamps,
Drive System SD2 - Hardware Description
W
Tightening torque
max. 0.6 Nm
max. 0.8 Nm
max. 0.8 Nm
1.5 – 1.8 Nm
