Power Supply Unit PS2
9.3.3

Connectors

9

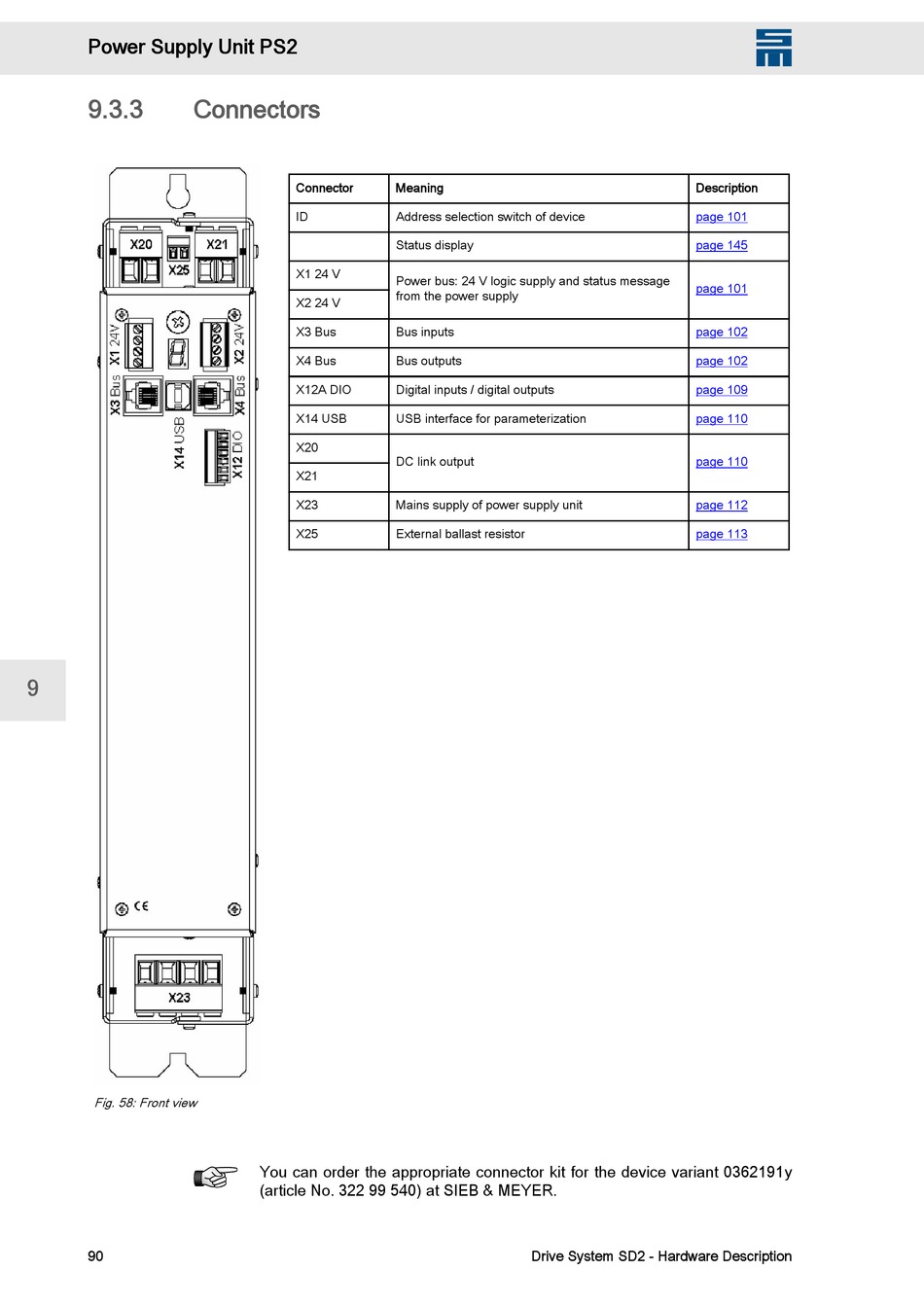

Fig. 58: Front view
90
Connector Meaning
ID Address selection switch of device
Status display
X1 24 V
Power bus: 24 V logic supply and status message
from the power supply
X2 24 V
X3 Bus Bus inputs
X4 Bus Bus outputs
X12A DIO Digital inputs / digital outputs
X14 USB USB interface for parameterization
X20
DC link output
X21
X23 Mains supply of power supply unit
X25 External ballast resistor
You can order the appropriate connector kit for the device variant 0362191y
(article No. 322 99 540) at SIEB & MEYER.
Description
page 101
page 145
page 101
page 102
page 102
page 109
page 110
page 110
page 112
page 113
