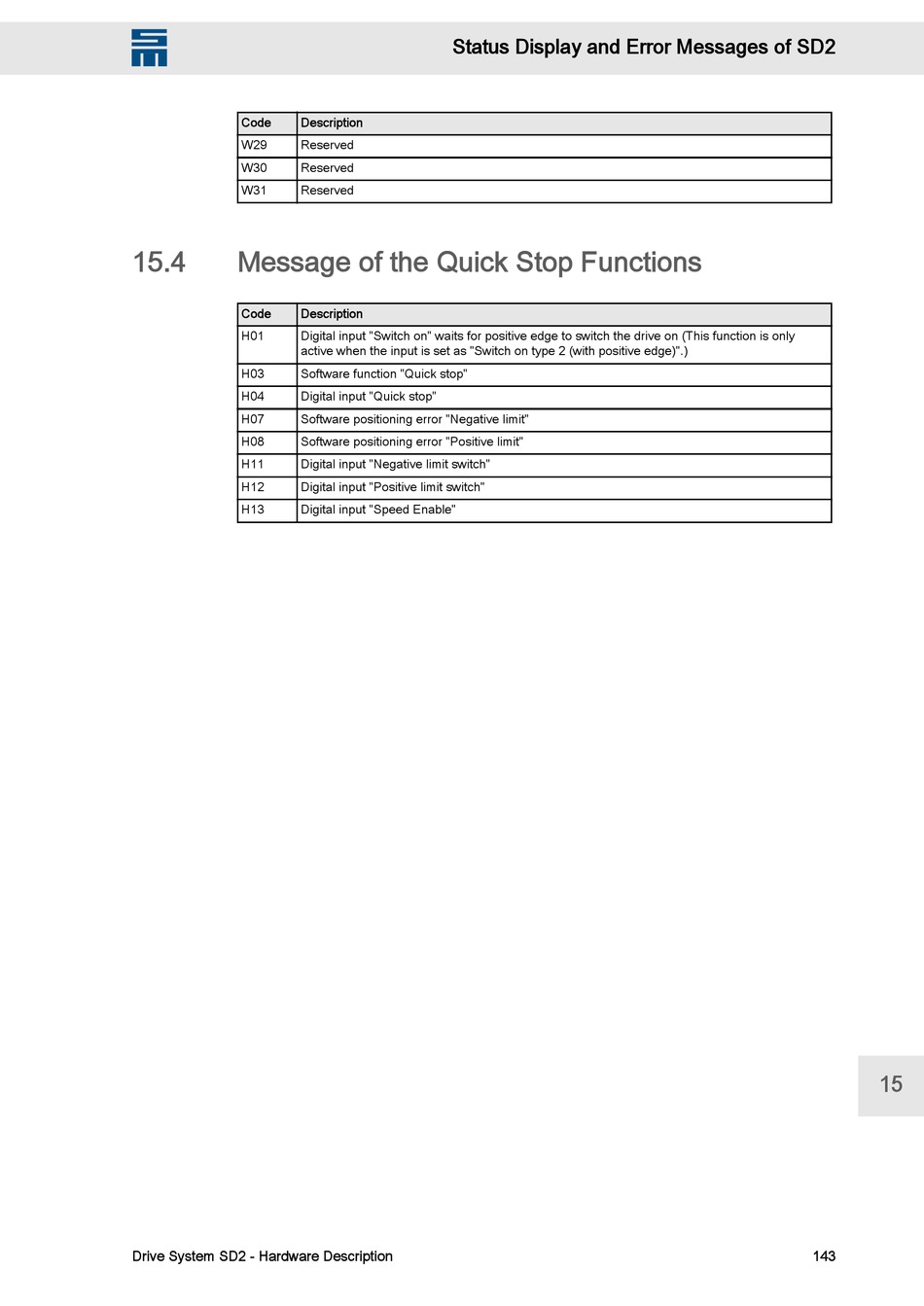

Message Of The Quick Stop Functions - SIEB & MEYER SD2 Hardware Description

W
Code Description
W29 Reserved
W30 Reserved
W31 Reserved
15.4

Message of the Quick Stop Functions

Code Description
H01 Digital input "Switch on" waits for positive edge to switch the drive on (This function is only
active when the input is set as "Switch on type 2 (with positive edge)".)
H03 Software function "Quick stop"
H04 Digital input "Quick stop"
H07 Software positioning error "Negative limit"
H08 Software positioning error "Positive limit"
H11 Digital input "Negative limit switch"
H12 Digital input "Positive limit switch"
H13 Digital input "Speed Enable"
