Commissioning
The Sensor Configuration Screens – Page 5
6.5
The Next button displays the fifth screen as shown in Figure 33.
This screen shows information about the sensor reading which can be used for diagnostic
purposes.
7 Recipe Parameters
From the main screen, pressing the menu button
will display the Recipe Overview screen.
The Recipe Overview Screen
7.1
46 Hydro-Control VI Installation Guide HD0455 Rev 1.9.0

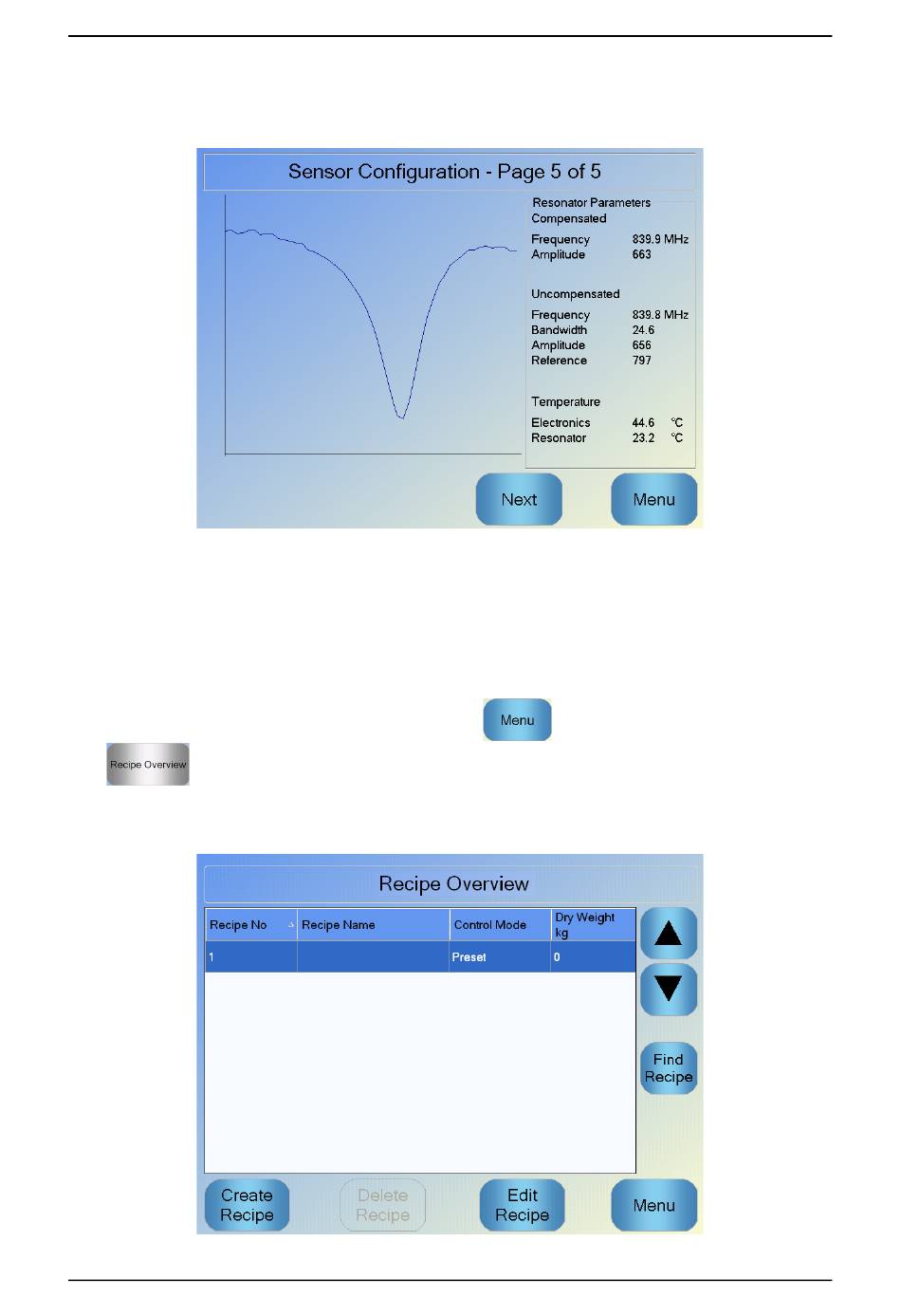

Figure 33: The sensor configuration screen - Page 5
Figure 34: The recipe overview screen
and then the recipe overview button
