Chapter 2
1 Weight and Dimensions
Fascia:
Panel Cut out:
Max Panel Thickness:
Depth:
Depth behind Fascia:
Weight:
NOTE:
I/O connections are made to the base so access needs to be allowed for the cables and
connectors.
Space should be allowed for memory cards (Not applicable to HC06 v2) to be installed through
the access plate on the top of the unit.
USB connections are made on the right hand side of the unit (viewed from the rear). Sufficient
space should be left to allow insertion and removal of a USB memory stick, if required.
A minimum of 100mm of space should be allowed around the unit for cooling air circulation.
A ground stud is positioned at the bottom right of the unit (viewed from the rear).

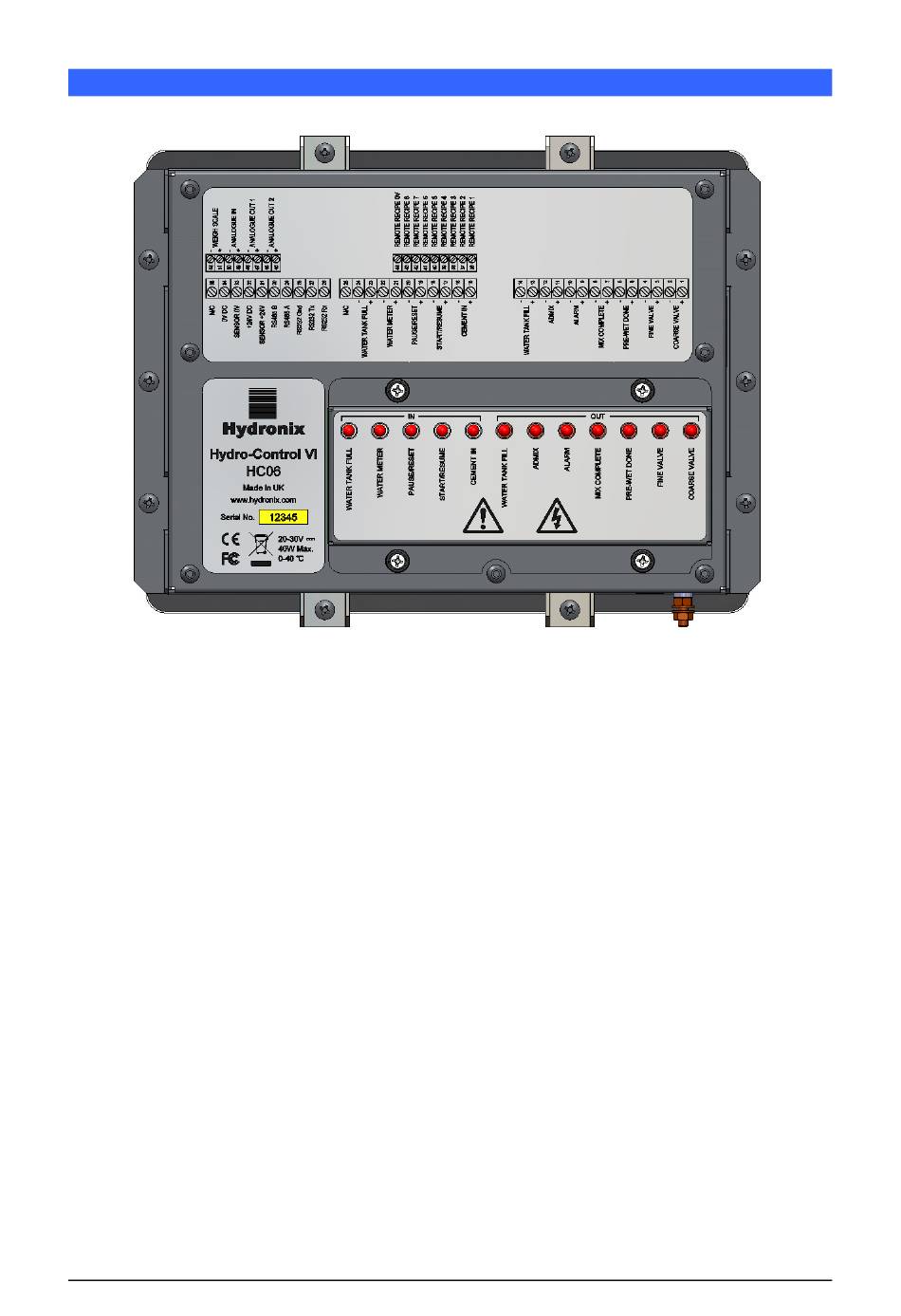

Figure 4: The rear view of the Hydro-Control VI
246 mm (W) x 190 mm (H); (9.69" (W) x 7.48" (H))
232 mm (W) x 178 mm (H); (9.14" (W) x 7.00" (H))
8 mm
84 mm (3.54")
78 mm (3.31")
3.5 Kg (7.75 lb)
