Chapter 4
The Sensor Configuration Screen – Page 2
6.2
The Next button displays the second screen as shown in Figure 29.
Signal Processing
This section allows the signal processing options in the sensor to be adjusted. It may be
necessary to adjust these depending on the mixer being used to improve the stability and
response of the sensor reading.
Digital Inputs/Outputs
This section allows the digital input/output options to be set.
If any settings are changed then they should be downloaded to the sensor using the 'Write To
Sensor' button.

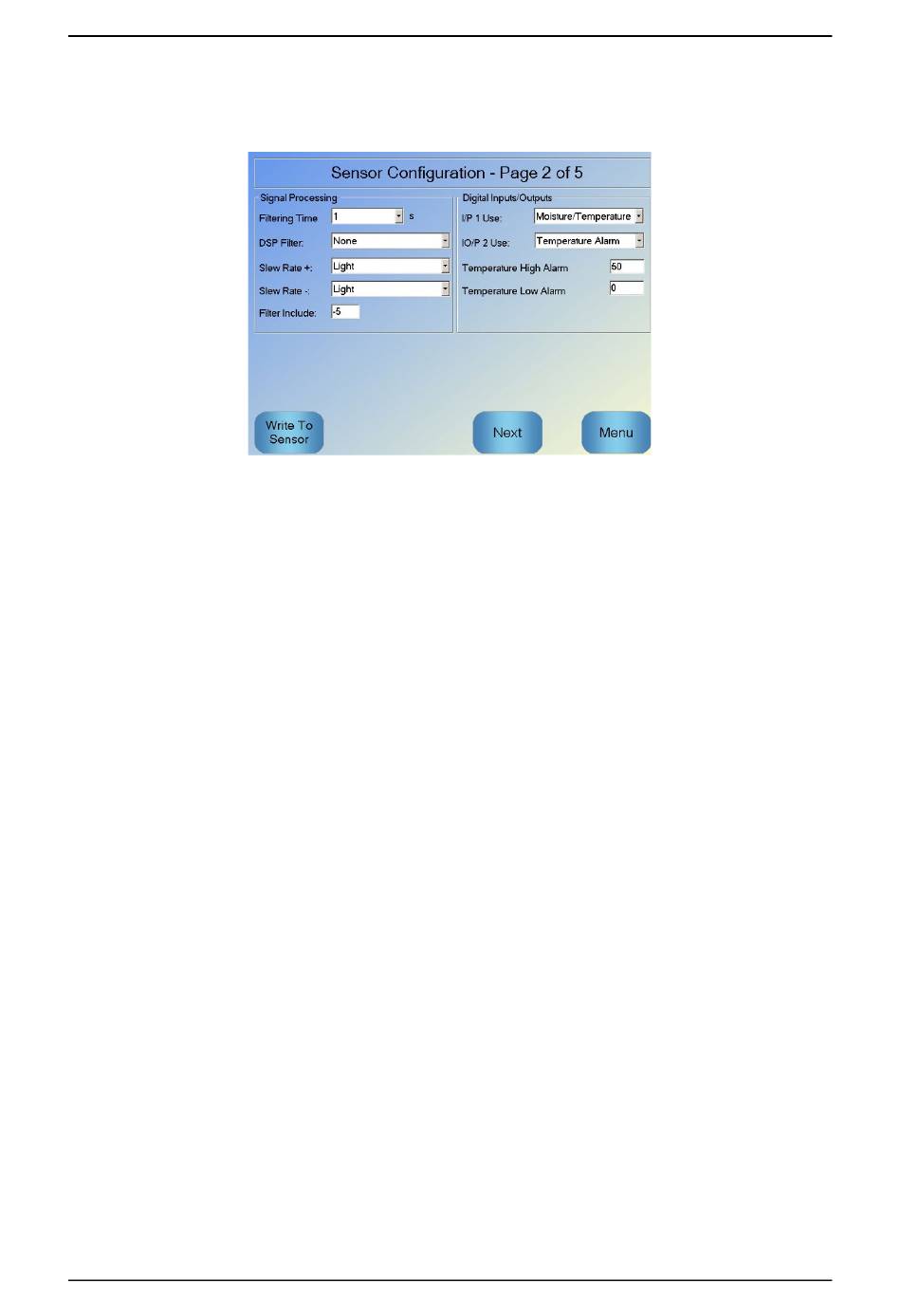

Figure 29: The sensor configuration screen - Page 2
Hydro-Control VI Installation Guide HD0455 Rev 1.9.0
Commissioning
43
