Mechanical Installation
HC06 v1

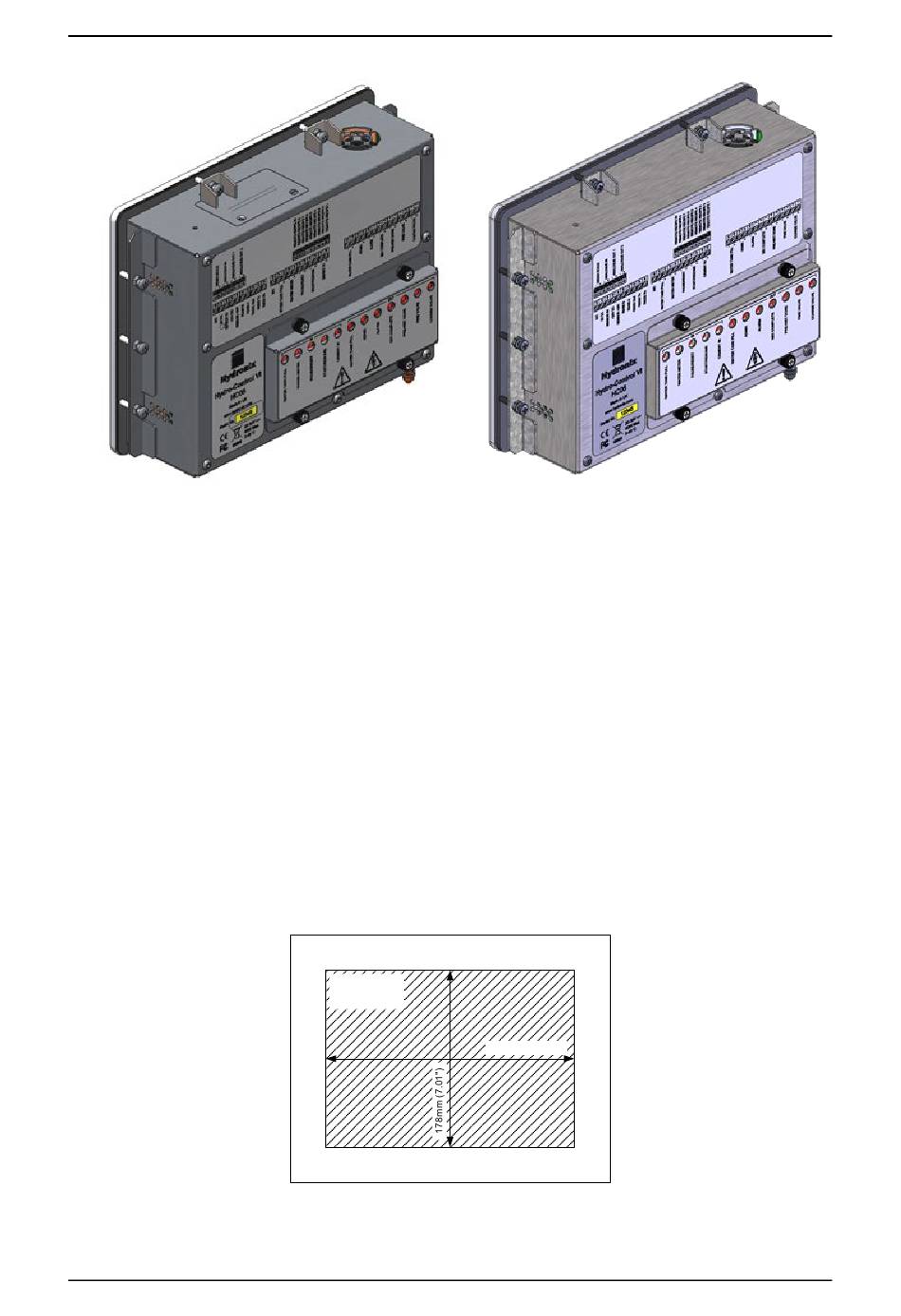

Figure 5: View of the Hydro-Control VI showing the mounting brackets
2 Mounting and installation
The unit should be mounted in a control panel (maximum thickness 8mm) using a bracket on each
side, two brackets on the top and two brackets on the bottom. To fit the side brackets, locate the
bracket in the slots on the side of the unit and slide it down until the top and bottom of the bracket
are level with the case. To fit the top and bottom brackets, insert the bracket into the slot and
tighten the bolt.
To install the Hydro-Control
• Cut out an aperture in the panel of the correct size. See Figure 6 for a template.
• Remove the mounting brackets from the body of the unit by releasing the screws and then
unhooking the brackets.
• Insert the Hydro-Control through the prepared hole.
• Re-fit the mounting brackets to the unit and tighten the screws evenly to pull the fascia
towards the control panel.
18 Hydro-Control VI Installation Guide HD0455 Rev 1.9.0
Panel or Enclosure
Cut-out for
Hydro-Control
Figure 6: The panel cut-out for the Hydro-Control VI
HC06 v2
232mm (9.14")
Chapter 2
