Command access MLRK1 Series Insert Instructions page 8

16

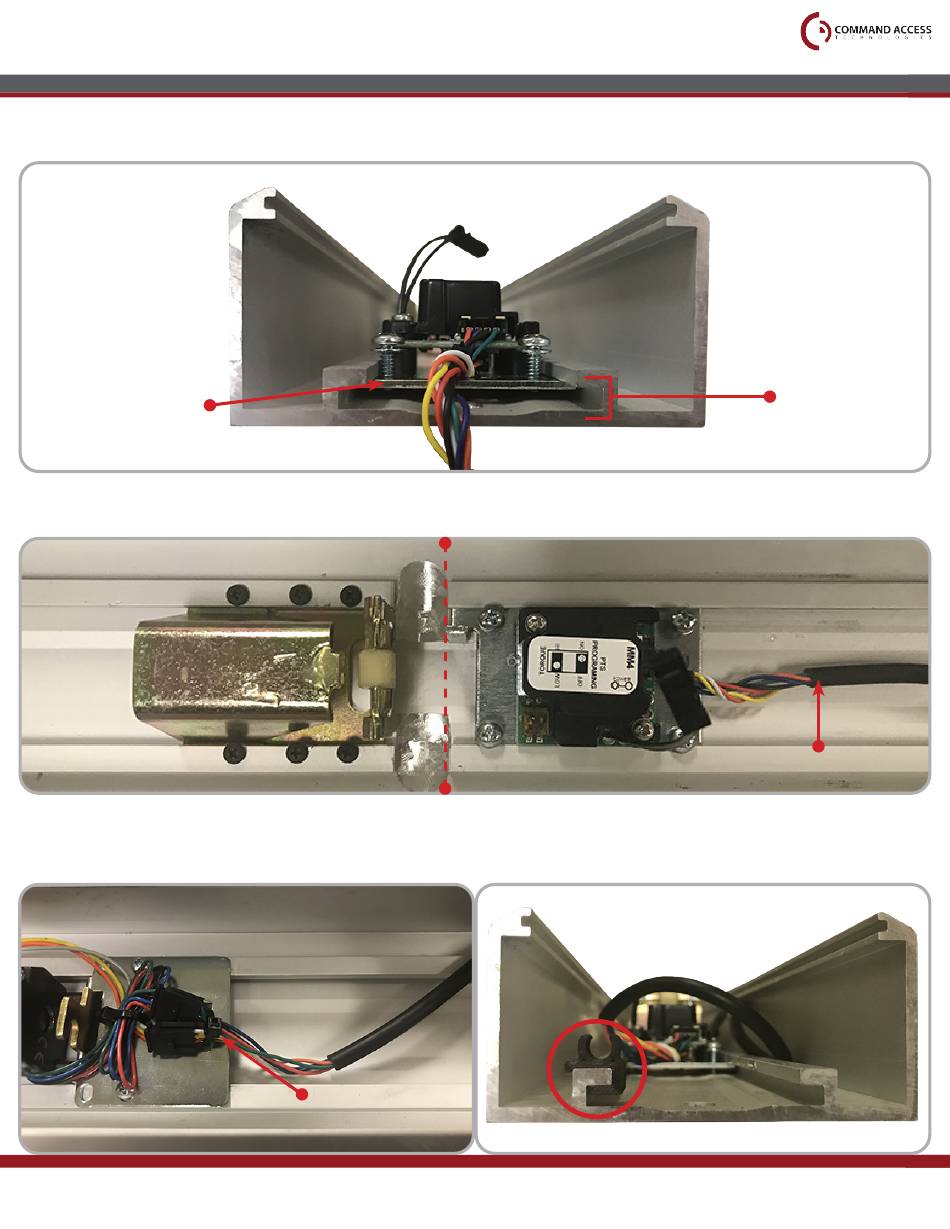

Next, slide the Module Bracket into the Channel at the bottom of the Base Rail.
Module Bracket
17
Line up the edge of the Module Bracket to the machining mark on the Base Rail, then tighten all four
screws. (The Module Harness should be running out the back of the Base Rail)
Plug the other end of the Module Wiring Harness into the the MLRK1 and secure it with the Zip Tie.
18
You will use the three provided Cable Guides to finish installing the Module Wiring Harness, which will
be installed on the Channel as shown below.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
installation instructions
(Back of Base Rail)
Zip Tie
Cable Guide Installation
8
Channel
Module Harness
Correct
# 2 0 3 7 9 _ L
