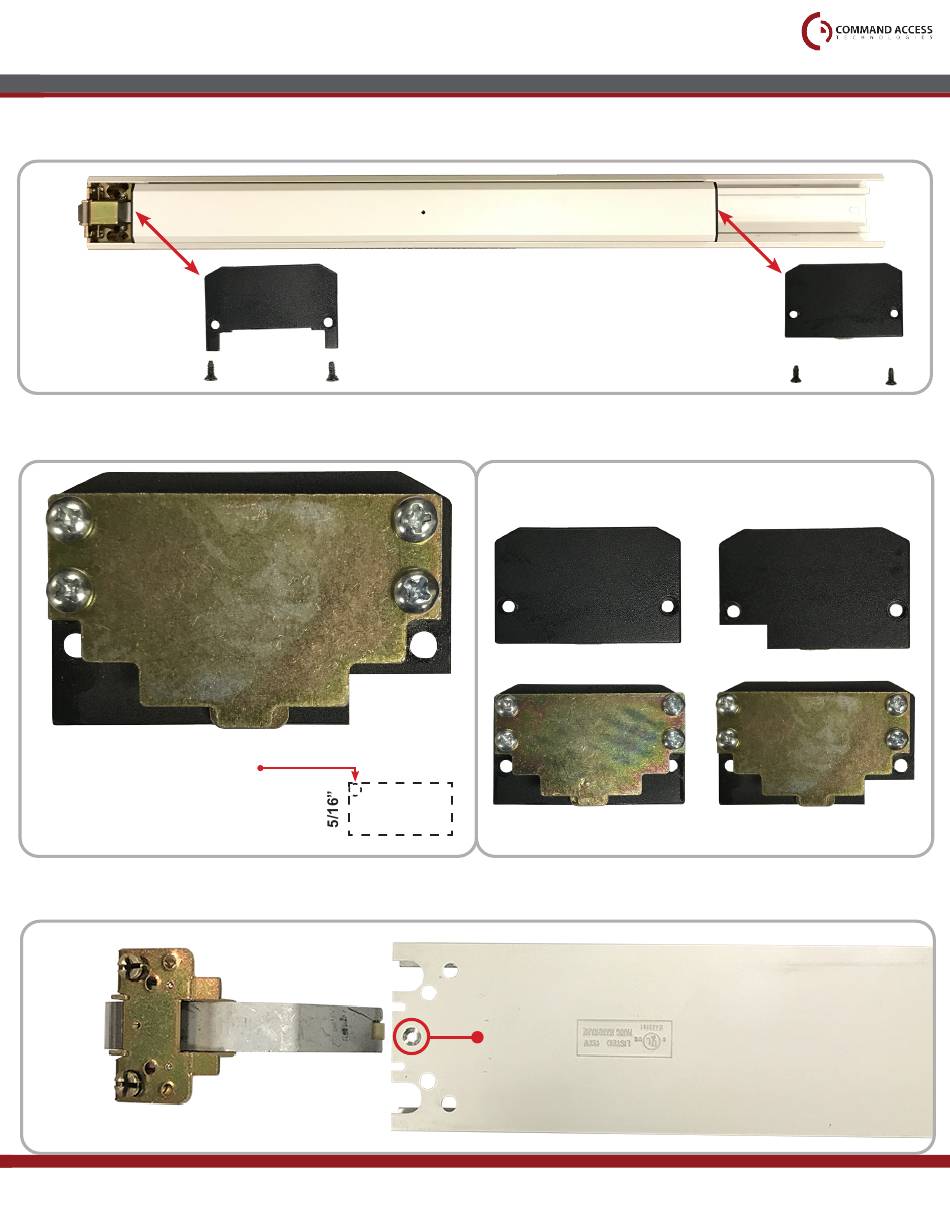

Command access MLRK1 Series Insert Instructions page 3

1
Remove the Front and Back End Caps, which are held on by four screws (two each).
Front End Cap
2
Material will need to be removed from the Back End Cap.
Drill pilot hole on top corner
3
Flip the bar over to remove Head Assembly. RIM devices will be held in by 1 screw, CVR devices by 2.
Head Assembly
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
installation instructions
5/8"
Back End Cap
Before:
Screw
3
After:
(RIM device shown)
# 2 0 3 7 9 _ L
