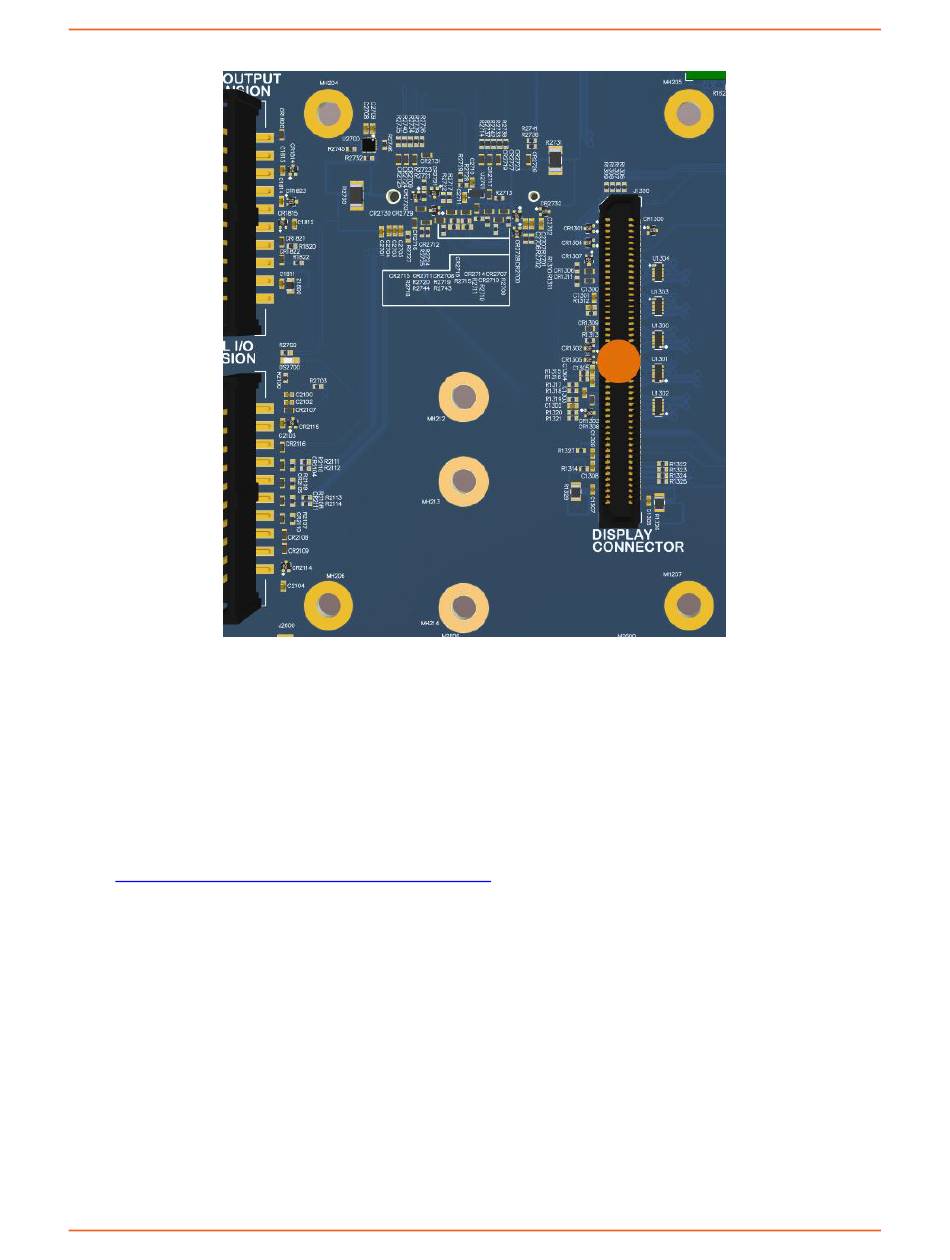

Camera Connectors J1000 (15), J1100 (16), J1200 (17); Figure 9. Display Connector J1300 - Lantronix Intrinsyc Open-Q 865XR SOM User Manual

Table of Contents

3.7.14

Camera Connectors J1000 (15), J1100 (16), J1200 (17)

The Open-Q 865XR SOM Development Kit includes three camera interface connectors, J1000, J1100

and J1200 allowing users to connect multiple camera adapters to the development kit. See items 15

through 17 in Figure 1 for the carrier board locations of the camera connectors.

Lantronix offers compatible camera module accessories for the Open-Q 865XR SOM Development Kit

here:

https://shop.intrinsyc.com/collections/accessories

Exposed on each camera connector are the following interfaces:

•

One 4-lane MIPI CSI high speed camera interface

•

Camera Control Interface (CCI) I2C bus for camera and actuator control

Additional GPIOs for general purposes available

•

Various power rails for powering the camera adapter

•

For details on the signal list provided on the camera connectors, see the development kit schematic (R-3)

and the camera adapter design guide technical note document (R-5).
