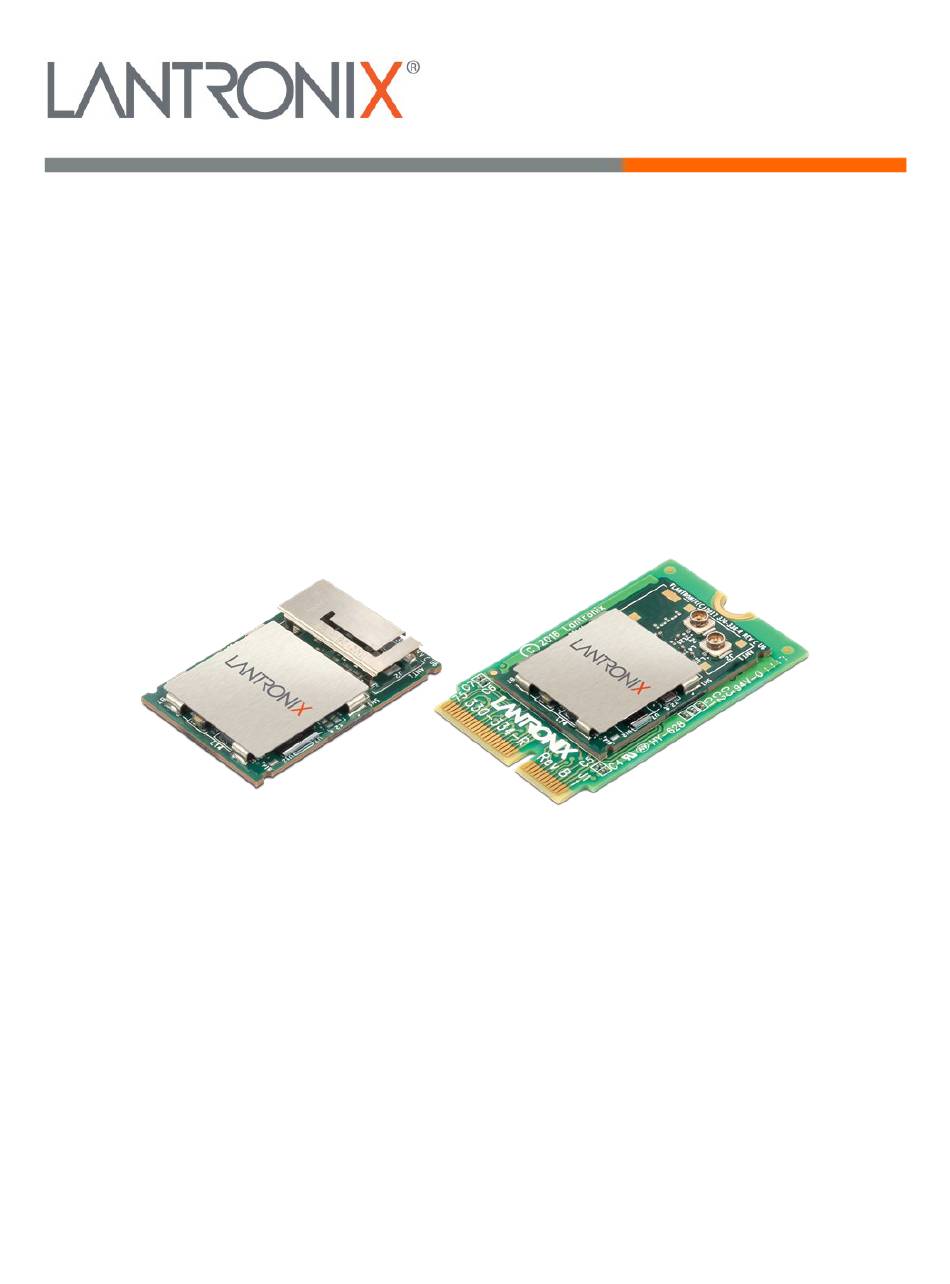

- Page 1 Application Note: xPico 200 Series – JTAG Programming Part Number APP-0120 Revision A November 2021...
- Page 2 Technical Support Online: www.lantronix.com/support Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact Disclaimer All information contained herein is provided “AS IS.” Lantronix undertakes no obligation to update the information in this publication. Lantronix does not make, and specifically disclaims,...
- Page 3 For the latest revision of this product document, please check our online documentation at www.lantronix.com/support/documentation. Contents Overview ......................4 Hardware and Software Requirements ..............4 JTAG Programming Hardware Checklist .................. 4 JTAG Hardware Setup ..................5 Software Instructions .................... 6 xPico 200 Series - JTAG Programming...
- Page 4 Hardware and Software Requirements The JTAG Programming Hardware Checklist below contains the hardware required to perform JTAG programming of the xPico 200 series modules. This application note uses Olimex and Tag- Connect hardware and adapters. There are numerous JTAG programmers available – other brands and adapter types may also work.
- Page 5 2. Using the xPico 200 Series Eval Kit, plug the Tag-Connect grey cable JTAG connector into J1 of the Evaluation Kit as shown below. This is a keyed (2-pins on one end and 1 on the other end) connection to ensure that mistakes are not made.
- Page 6 6. From the Zadig application, install Win-USB on Olimex Interface 0; see the image below. 7. Click Install Driver. Once complete, the message "Driver Installation: SUCCESS" will appear as shown in the image below. xPico 200 Series - JTAG Programming...
- Page 7 14. Type make download to install the firmware. 15. Type make run to run the firmware. 16. You may combine Steps 14 & 15 as make download run to install and run with a single command. xPico 200 Series - JTAG Programming...
