3.7.13

Display Connector J1300 (38)

The 100-pin display connector, J1300, allows for an optional display adapter to be connected to the
development kit. Lantronix offers a compatible LCD panel accessory for the Open-Q 865XR SOM
Development Kit. It can be purchased by contacting sales: http://www.lantronix.com/about-us/contact/.
Exposed on the display connector are the following interfaces:
• Two 4-lane MIPI DSI high speed display interfaces
LCD backlight control signals
•
I2C bus for touch panel support
•
• Additional GPIOs for general purposes available
Various power rails for powering the display adapter
•
For details on the signal list provided on the display connector, see the development kit schematic (R-3)
and the display adapter design guide technical note document (R-4).
Open-Q 865XR SOM Development Kit User Guide

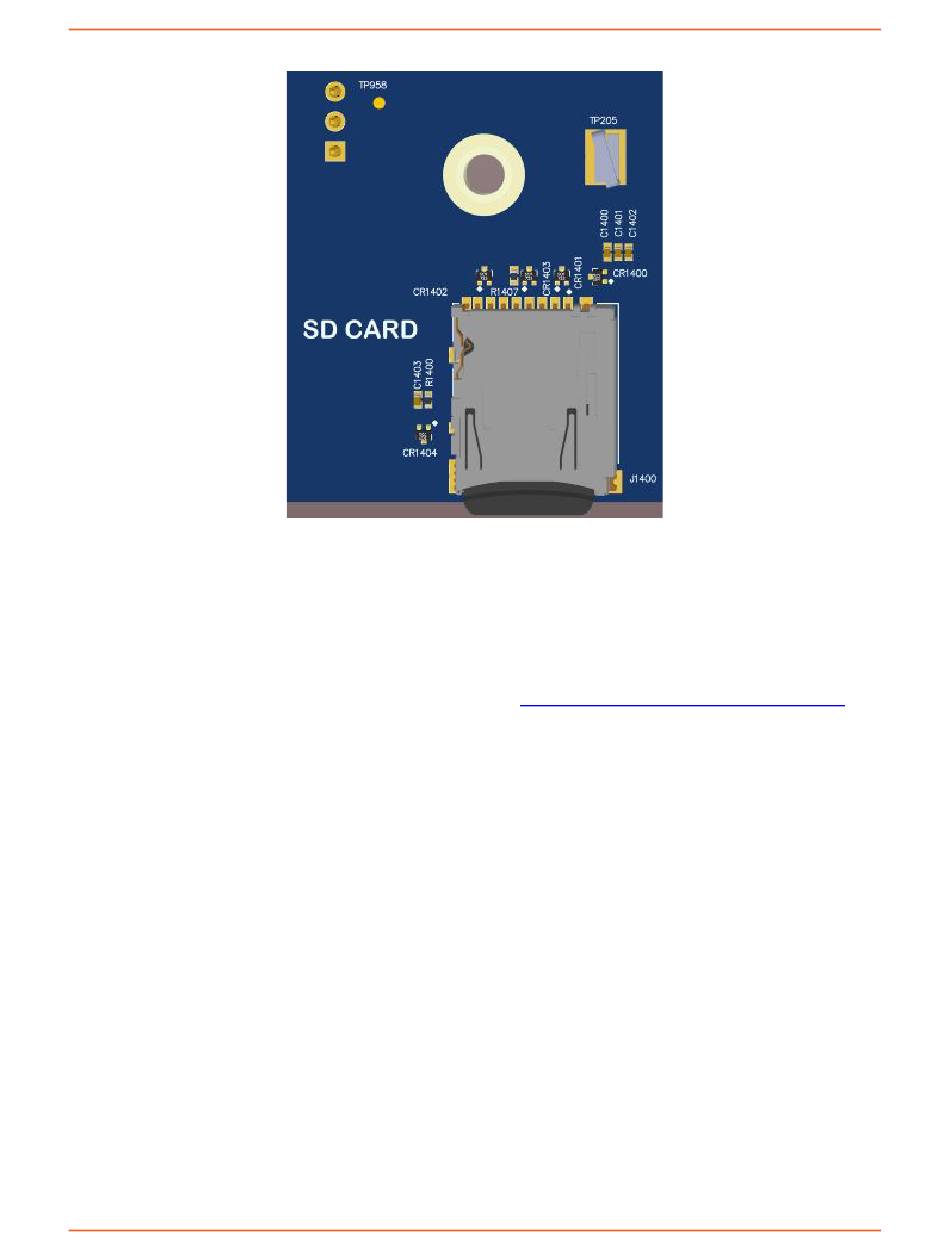

Figure 8. Micro SD Card Socket J1400

3: Open-Q 865XR SOM Development Kit
28
