Lantronix Open-Q 865 Quick Start Manual

Package Contents
1. Open-Q 865 Carrier Board compatible with Open-Q 865 family of
System-on-Modules (SOM)
2. AC Power Adapter (not shown)
3. CPU Heatsink (not shown)
4. ST Micro Sensor Board (not shown)
SOM SOLD SEPARATELY

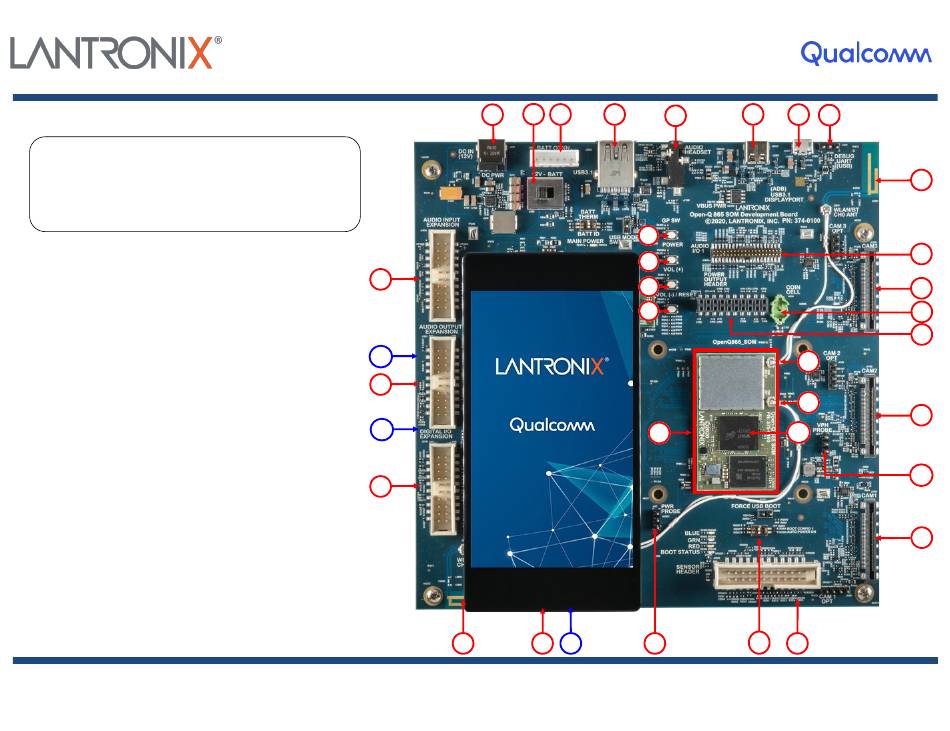

1. 12V DC power jack 23. SOM current sense header
2. Power source switch (DC/Batt) 24. Micro SD socket*
3. Battery connector 25.
4. USB 3.0 Type-A Connector
26. WLAN Channel 1 Antenna (PCB trace)
5. Power button
27. Digital I/O connector
6. Volume +
28. SIM Card connector*
7. Volume - / Reset button
29. Audio Output expansion header
8. General Purpose Button
30. M.2 PCIe Socket (B-key) *
9. Audio Headset Jack
31. Audio Input expansion header
10. USB 3.0 Type-C connector
32. WLAN Channel 1 U.FL Antenna Con-
11. USB debug UART Micro B
12. Debug UART Header
33. WLAN/BT Channel 0 U.FL Antenna
13. WLAN/BT Channel 0 Antenna (PCB
trace)
34. Qualcomm System-on-Chip (SoC)
14. Audio I/O expansion header
15. MIPI Camera 3 Connector
35.
16. Coin Cell Battery Holder
17. Power Header
* On Bottom side
18. MIPI Camera 2 Connector
19. VPH_PWR current sense header
20. MIPI Camera 1 Connector
21. Sensor expansion header
22. System configuration switches
Specifications are subject to change - 895-0047-00
Your use of this document is subject to and governed by those terms and conditions in the LICENSE AND PURCHASE TERMS AND CONDITIONS FOR INTRINSYC DEVELOPMENT PLATFORM KITS, which you or the legal entity you represent, as the case may be, accept-
ed and agreed to when purchasing a Development Kit from Intrinsyc Technologies Corporation ("Agreement"). You may use this document, which shall be considered part of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of
the Development Kit under the Agreement. Distribution of this document is strictly prohibited without the express written permission of Intrinsyc Technologies Corporation and its respective licensors, which they can withhold, condition or delay in its sole discretion. Lantronix is a
trademark of Lantronix, Inc., registered in the United States and other countries. Intrinsyc is a trademark of Intrinsyc Technologies Corporation, registered in Canada and other countries. Qualcomm® is a trademark of Qualcomm® Incorporated, registered in the United States and other
countries. Other product and brand names used herein may be trademarks or registered trademarks of their respective owners.
Open-Q
Quick Start Guide
31
Open-Q LCD Touch Panel (Sold Sepa-
rately)
30
29
nector
28
Connector
with PoP DDR memory on top
27
Open-Q System on Module (Sold
separately)
Rev. B
™
865 Development Kit
2
1 3
26 25 24
4 10
9
8
5
6
7
35
22
23
11 12
13
14
15
16
17
33
32
18
34
19
20
21
