HP MSA 1040 Quick Start
Instructions

Abstract

These instructions provide an overview of planning,
installation, and configuration steps.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
HP Part Number: 759126-001
Published: March 2014
Edition: 1
*759126-001*
This document is for the person who installs,
administers, and troubleshoots servers and storage
systems. HP assumes that you are qualified in servicing
and installing computer equipment, and are trained
in recognizing hazards in products and hazardous
energy levels.

Feature overview

The HP MSA 1040 is available in six models:
FC Dual Controller LFF Storage
FC Dual Controller SFF Storage
1G iSCSI Dual Controller LFF Storage
1G iSCSI Dual Controller SFF Storage
10G iSCSI Dual Controller LFF Storage
10G iSCSI Dual Controller SFF Storage

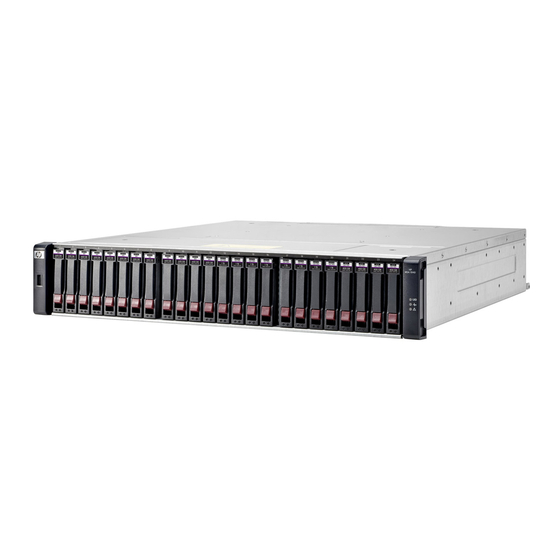

MSA 1040 front features (24, 2.5 inch drive)

1. Left bezel ear
3. Fault LED
5. Unit Identification LED

MSA 1040 front features (12, 3.5 inch drives)

1. Left bezel ear
3. Fault LED
5. Unit Identification LED
Page 1
2. Drive in slot 9
4. Heartbeat LED
6. Right bezel ear
2. Drive in slot 4
4. Heartbeat LED
6. Right bezel ear
