Expansion Storage Shelf rear panel features (continued)
Table 1-14
Number
3
4
5
6
7
8
9
10
11

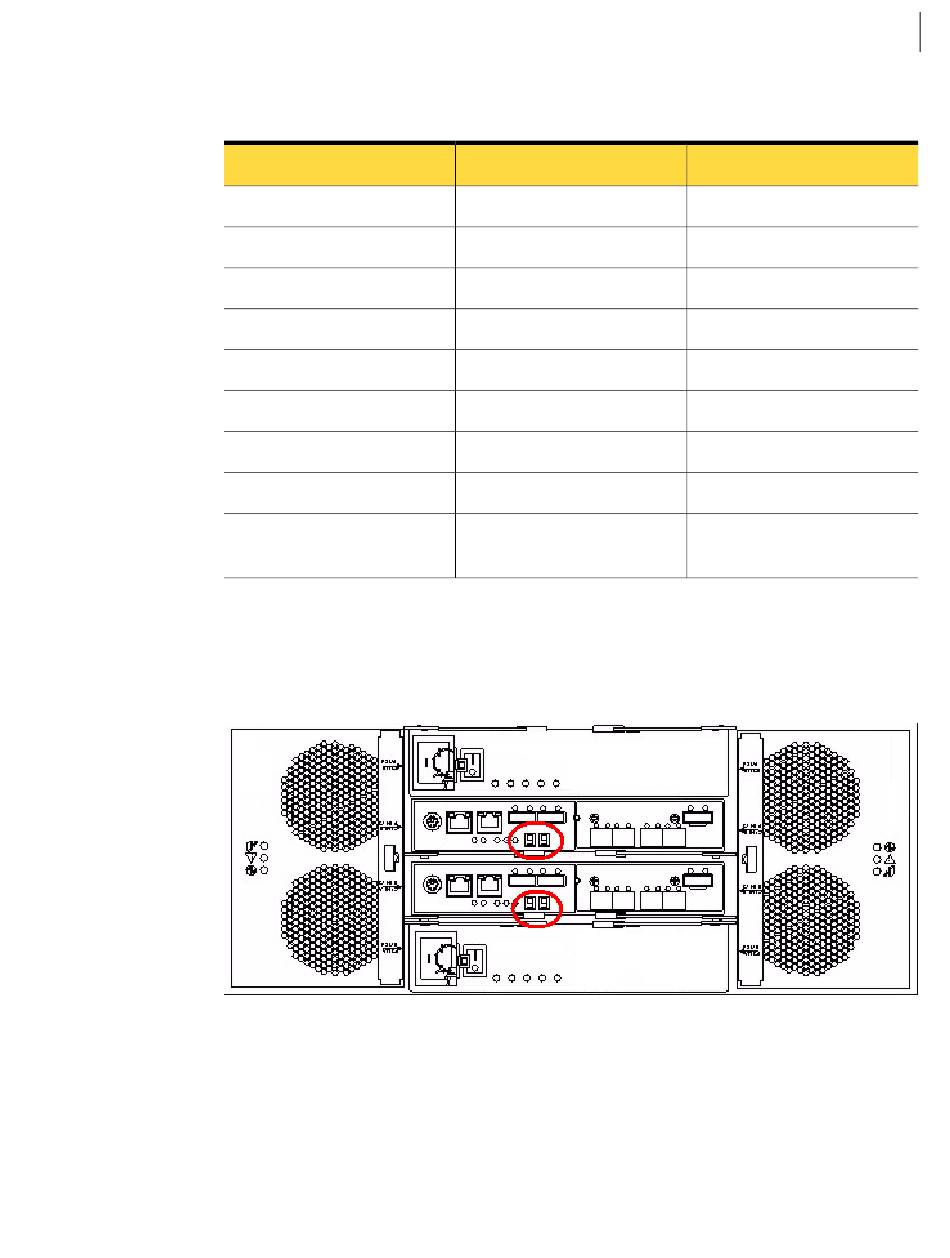

As seen in both diagrams, the seven-segment display LEDs shows the storage
system ID, once the devices have been turned on and are recognized. The following
diagram shows the location of these displays, as seen on the rear panel of the
Primary Storage Shelf, which are circled in red.
IMPORTANT: Notice that both systems have identical power supply canisters and
fan canisters. However, the Primary Storage Shelf contains RAID controller canisters.
The Extension Storage Shelf contains expansion canisters instead of RAID canisters.
The following figure provides a comparison of the two canister types.
About the NetBackup 5330 Appliance storage capacity
Description
Data Link LED
SAS port
Link fault LED
Data Link LED
SAS port
Service action allowed LED
Service action required LED
Power LED
Seven-segment display LEDs
for system ID
