the disks in slot 3 and slot 4 are configured as the RAID1, VOLUME 1 device.
VOLUME 0 contains the NetBackup 5330 server operating system and the
NetBackup application.
The disks in slots 3 and 4 are configured as the RAID 1, VOLUME 1 device.
The appliance uses the disks that are located in slot 2 and slot 5 as hot-spare disks.
If a disk in either RAID volume experiences a hardware error, the appliance
automatically initiates a RAID rebuild operation. During the rebuild operation, the
appliance randomly selects a hot-spare disk from slot 2 or slot 5, and then rebuilds
the RAID volume.
The disks in slots 6 and 7 are reserved for future use.

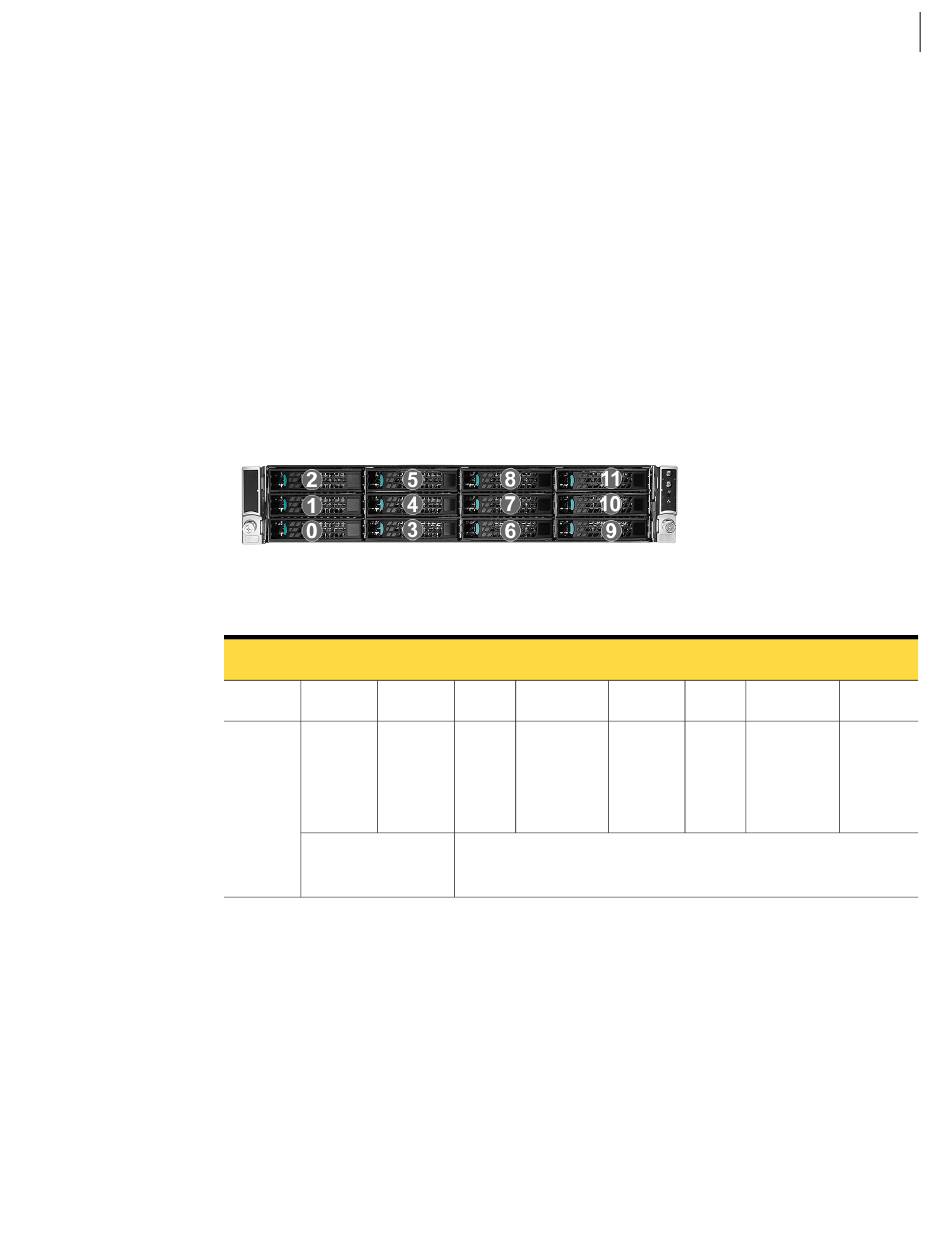

NetBackup 5330 server front panel disk slot assignments
Figure 1-1
NetBackup 5330 server disk slot assignments and RAID disk
Table 1-2
assignments
NetBackup 5330 server disk slot assignments and RAID disk assignments
Slots
0
1
RAID
Disk0 of
Disk1 of
layout
RAID1,
RAID1,
Volume
Volume
0
0
Set as Boot
Volume
About NetBackup 5330 server disk drive LEDs
Each disk drive module contains two LEDs on the left-hand side of each module.
The LEDs appear as follows:
The LED on the top is solid amber when a disk drive fault occurs. This LED is
■
not lit when there are no disk drive faults.
The LED on the bottom is solid green when power is supplied to the disk drive.
■
This LED flashes green when the disk drive is active.
About the NetBackup 5330 Appliance
2
3
4
Hot
Disk0 of
Disk1 of
spare
RAID1,
RAID1,
disk
Volume 1
Volume
1
Slots 8, 9, 10, and 11 are intentionally empty for server
cooling purposes.
NetBackup 5330 Appliance overview
5
6
Hot
Reserved
spare
for future
disk
use
11
7
Reserved
for future
use
