About NetBackup 5330 server PCIe slot configurations

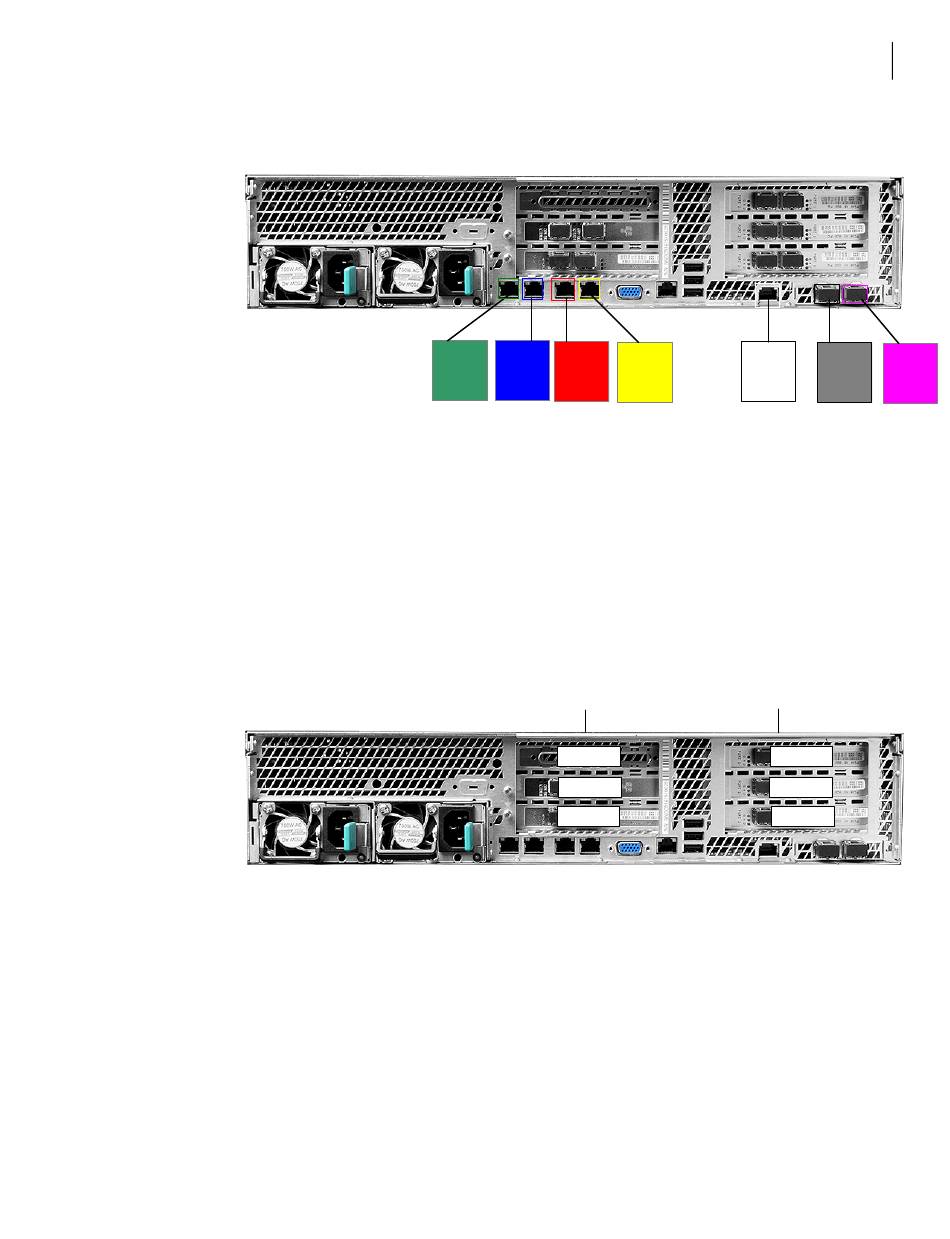

NetBackup 5330 server rear port colors
Figure 1-5
The rear panel also has two sets of low profile, full height, 3.5" form factor PCIe
slots.
See "About NetBackup 5330 server PCIe slot configurations"
The rear panel of the NetBackup 5330 server contains six PCIe slots that are
numbered 1 to 6. Slots 1, 2, and 3 are located in PCIe Riser Assembly 2. Slots 4,
5, and 6 are located in PCIe Riser Assembly 1.
All PCIe slots are factory-populated. Each slot contains either a Fibre Channel (FC)
host bus adapter (HBA) card or a 10GB Ethernet network interface card (Ethernet).
Slots 1 and 4 are reserved exclusively for attachment to the Primary Storage Shelf.
The following table describes the factory-available PCIe card configurations for the
NetBackup 5330 Appliance.
About the NetBackup 5330 Appliance
NIC1/ NIC2/ NIC3/
ETH0 ETH1
ETH2
Riser 2
Slot 3
Slot 2
Slot 1
NetBackup 5330 Appliance overview
NIC4/
IPMI
ETH3
on page 15.
Riser 1
Slot 6
Slot 5
Slot 4
15
NIC5/
NIC6/
ETH4 ETH5
