About the NetBackup 5330 Appliance Primary Storage Shelf and
Expansion Storage Shelf front panel
Shelf contain five drawers, with each drawer containing 12 disk drives. The front
panels of both systems are the same, physically and functionally.

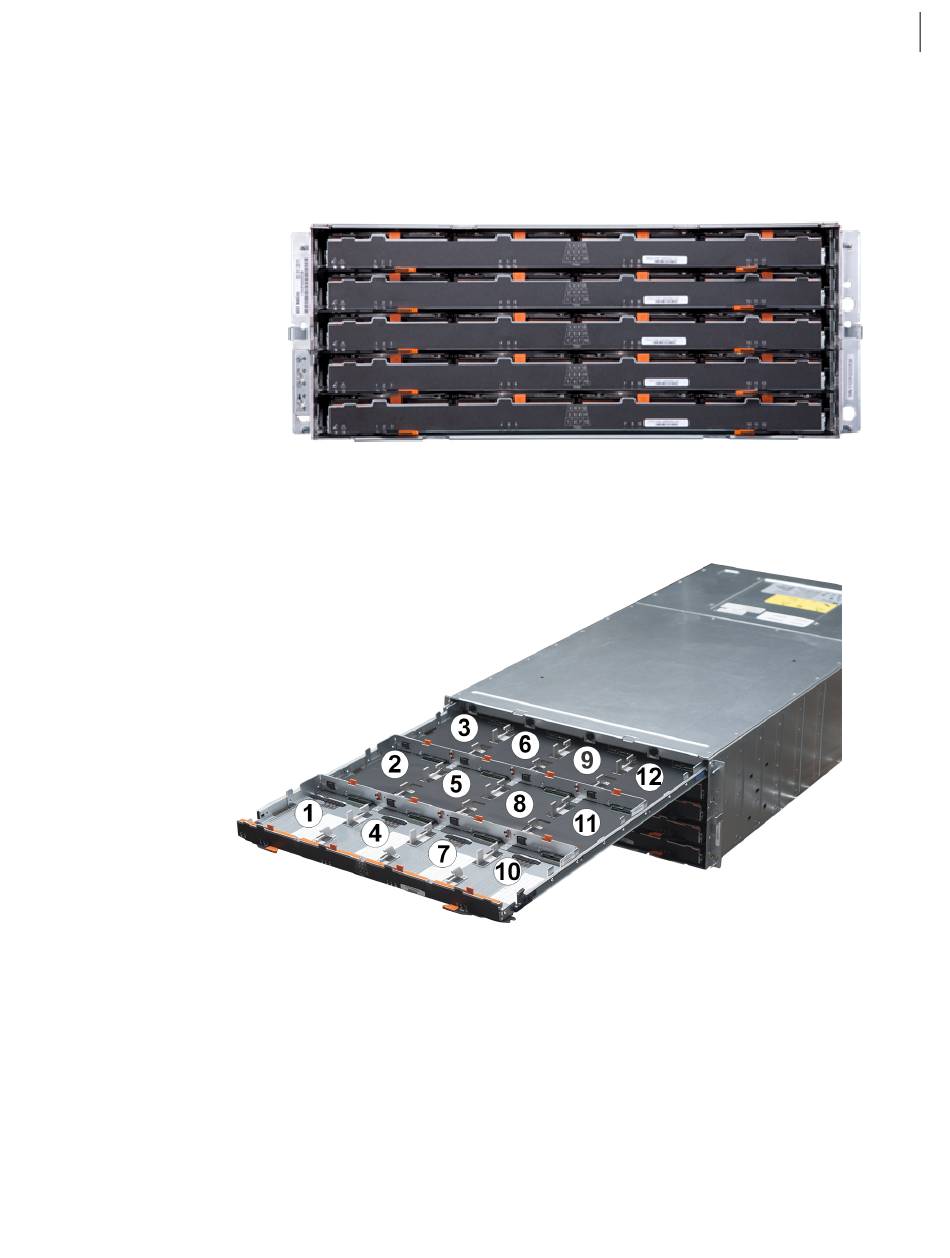

Primary Storage Shelf and Expansion Storage Shelf front panel
Figure 1-7
Primary Storage Shelf and Expansion Storage Shelf disk
Figure 1-8
configuration
The NetBackup 5330 Appliance Primary Storage Shelf and Expansion Storage
Shelf each contain 60 SAS hard disk drives. The front panel of the Primary Storage
Shelf and Expansion Storage Shelf contain five drawers. The drawers are numbered
one through five, beginning with the top drawer. Each storage shelf drawer contains
NetBackup 5330 Appliance overview
About the NetBackup 5330 Appliance storage capacity
19
