About the NetBackup 5330 server control panel

Note that the disk drive modules that do not contain disk drives also have LEDs.
Although there is no drive activity going on, some colored lights may still be seen
through the disk modules.

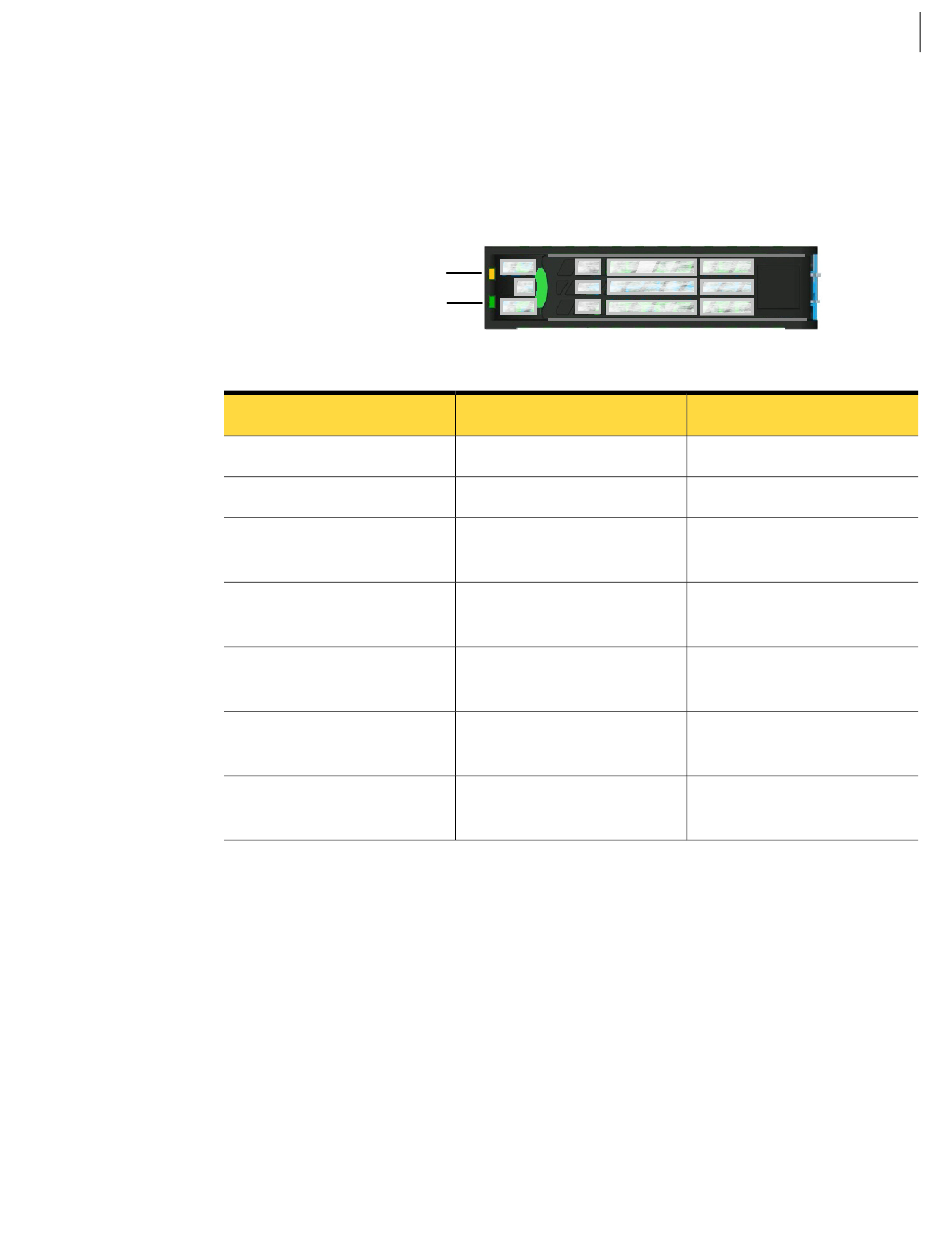

Disk drive module LEDs
Figure 1-2
Amber Status LED
Green Activity LED
Disk drive module LED descriptions
Table 1-3
LED color
Amber
Amber
Amber
Green
Green
Green
Green
The front panel of the NetBackup 5330 server includes a small panel that is attached
to the right side of the device. System information is shown on this panel.
About the NetBackup 5330 Appliance
Condition
Off
Solid On
Blinking
Power on with no drive
activity
Power on with drive activity
Power on and drive spun
down
Power on and drive spinning
up
NetBackup 5330 Appliance overview
Description/Behavior
No access and no fault
A hard drive fault has occured
A RAID rebuild is in progress
(1 Hz), Identify (2 Hz)
LED stays on
LED blinks off when
processing a command
LED stays off
LED blinks
12
