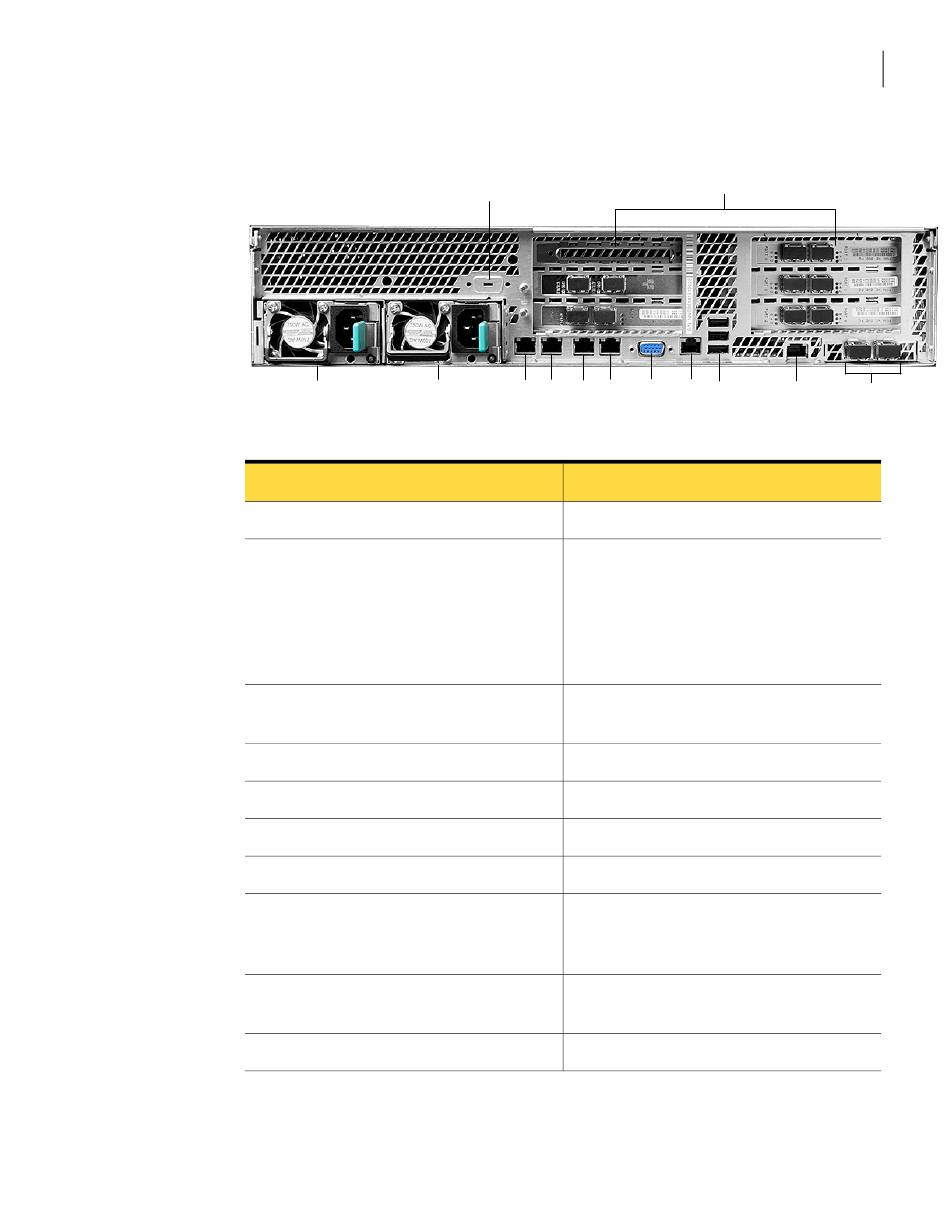

NetBackup 5330 server rear panel access ports and features
Figure 1-4
1
NetBackup 5330 server port functions
Table 1-5
Number
1,2
3,4
5,6
7
8
9
10
11
12
13
The ports on the rear panel are color-coded for easy identification.
13
1 1
2 3 4 5 6
Function
Power Supply Modules #1, #2 (120/220VAC)
NIC1/eth0 and NIC2/eth1. NIC1/eth0 is
reserved for use during the initial
configuration of the appliance. However, after
initial configuration is complete, both
NIC1/eth0 and NIC2/eth1 can be used for
public networks. Both are 1GB connectors
NIC3/eth2 and NIC4/eth3 - used for public
networks. Both are 1GB connectors
DB-15 VGA connector
RJ45 Serial-A port (reserved)
USB connectors
A NIC port for IPMI remote management
NIC5/eth4 and NIC6/eth5, left to right: 10Gb
network connectors that can be used for
public networks
Add-in PCIe adapter slots (Fibre Channel,
10Gb Ethernet)
Serial-B port (reserved)
