The Primary Storage Shelf has two RAID canisters, which are inserted in the central
slots of the back panel. The power supplies are inserted at the top and bottom of
the back panel, and the fans are on either side. The RAID canisters are attached
to the NetBackup 5330 Appliance with fiber optic cables. The device must have at
least one functioning RAID canister, one functioning power supply, and one
functioning fan.

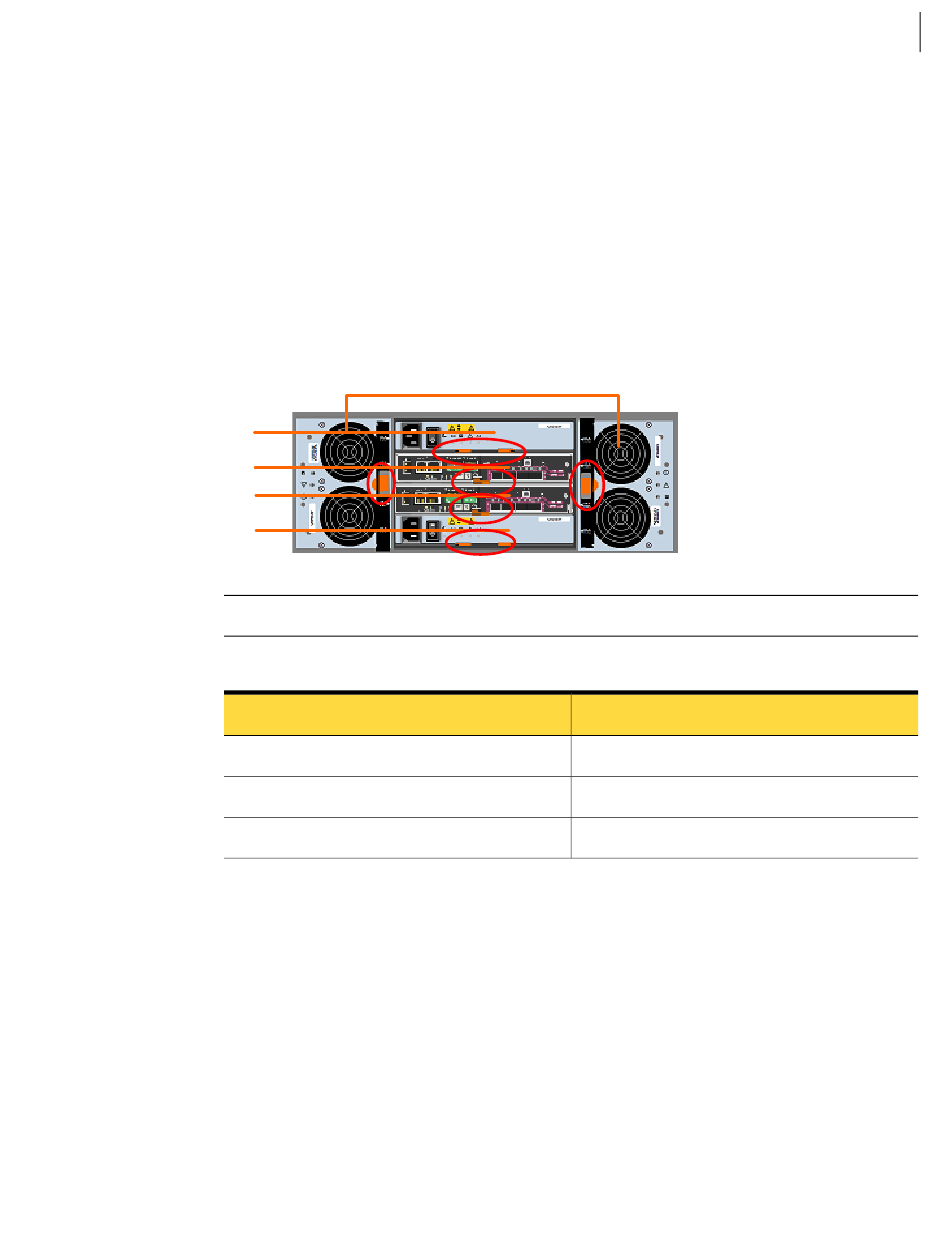

The following figure shows the Primary Storage Shelf rear panel.
Primary Storage Shelf rear panel
Figure 1-12
2
3
4
5
Note: Latches that let you remove the canisters are circled in red.
Primary Storage Shelf rear panel components
Table 1-11
Number
1
2 and 5
3 and 4
Each RAID canister has a set of LEDs which are defined in the following figure.
The table describes the LEDs functions and colors. The LEDs labeled '1' track the
data rate of the link. If both are off, the link is inactive, and if both are on, the data
rate is 8 Gb per second. If only one LED is on, the LED on the left indicates a 2
Gb/s data rate, and the one on the right indicates a 4 Gb/s data rate. The canister
also displays the ID of the Primary Storage Shelf, which is set to '99'.
About the NetBackup 5330 Appliance storage capacity
1
Description
Fan canisters
Power canisters
RAID controller canisters
