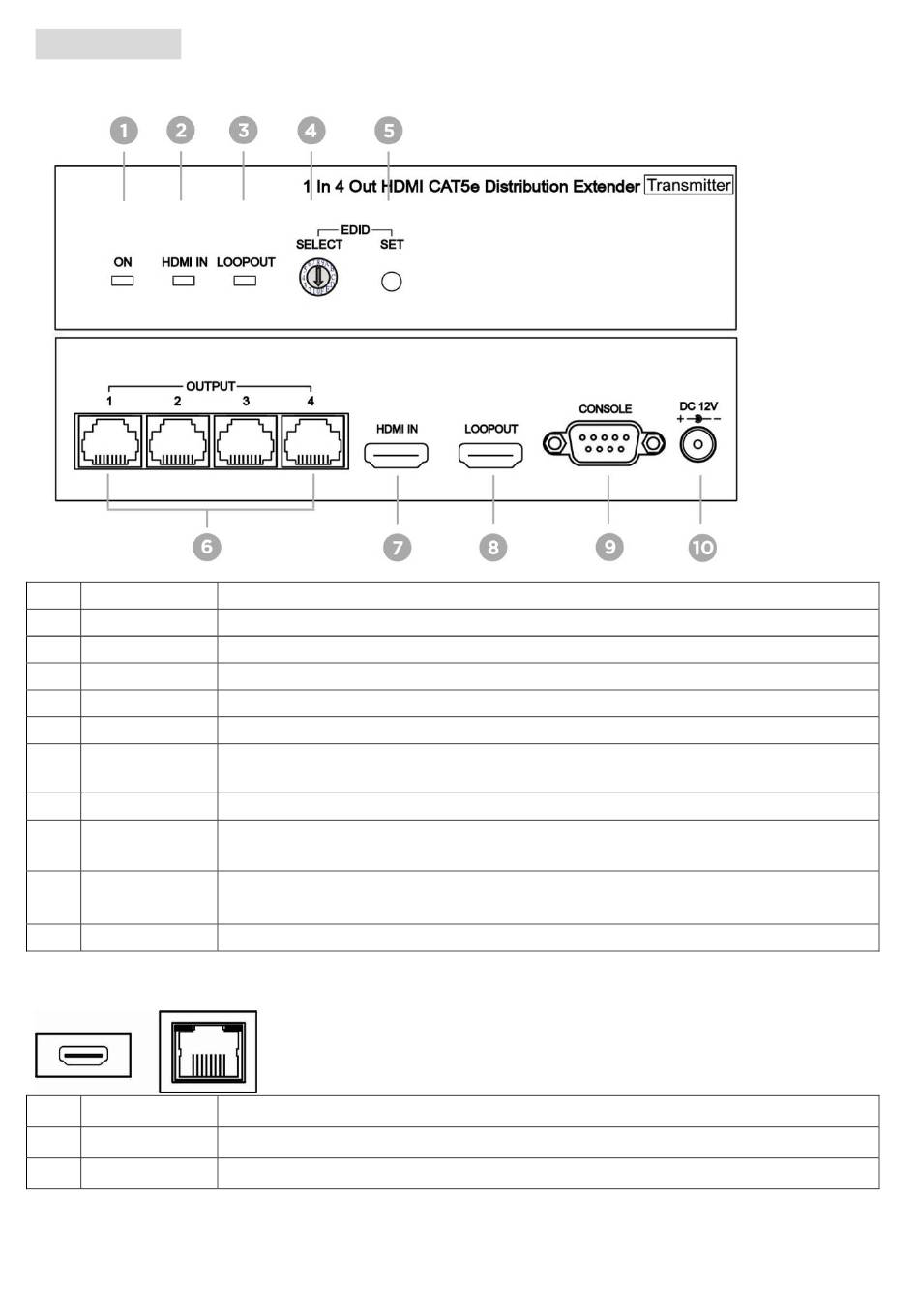

Panel Review:

(1) HE04SET
No.
Interface
1
Green LED
2
Blue LED
3
Blue LED
4
Rotary Switch
5
SET Button
6
Output 1~4
7
HDMI Input
8
Loop Out
9
Console
10
Power Input
(2) HE01SER
No. Interface
1
Green LED
2
Yellow LED
Description
Green light indicates "ON" status.
Blue light indicates "HDMI IN" is connected to HDMI source.
Blue light indicates "LOOPOUT" is connected to HDMI display.
To select EDID by rotating the switch from 0 to F.
Press 1 second to copy selected EDID.
Connects to remote receivers (HE01SER, HE01SLR) with CAT5e cables.
(please refer to Note 2-4)
Connects to HDMI source with HDMI cable.
Connects to HDMI display or another HE04SET with HDMI cable.
(please refer to Note 1)
Connects to RS232 control device with DB9(F) cable for controlling
HE04SET or updating firmware. (please refer to RS232 setting)
Connects to DC12V 1A adapter.
Description
Green light indicates receiving power and video signals.
Yellow light indicates no signal input or receiving an unsupported format.
(please refer to EDID setting)
