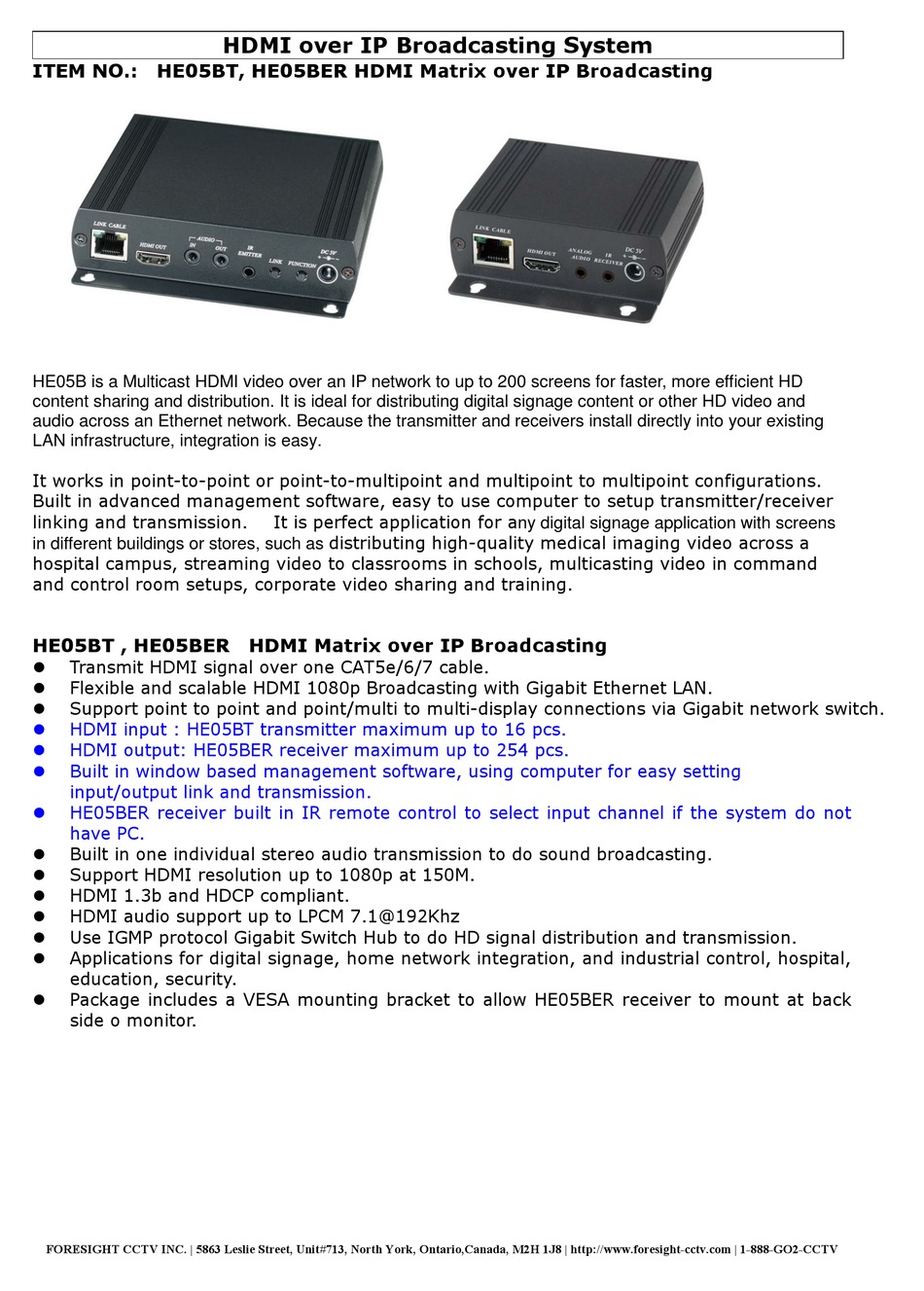

SC&T HE05BT User Manual

ITEM NO.: HE05BT, HE05BER HDMI Matrix over IP Broadcasting
HE05B is a Multicast HDMI video over an IP network to up to 200 screens for faster, more efficient HD
content sharing and distribution. It is ideal for distributing digital signage content or other HD video and
audio across an Ethernet network. Because the transmitter and receivers install directly into your existing
LAN infrastructure, integration is easy.
It works in point-to-point or point-to-multipoint and multipoint to multipoint configurations.
Built in advanced management software, easy to use computer to setup transmitter/receiver
linking and transmission.
in different buildings or stores, such as distributing high-quality medical imaging video across a
hospital campus, streaming video to classrooms in schools, multicasting video in command
and control room setups, corporate video sharing and training.
HE05BT , HE05BER HDMI Matrix over IP Broadcasting
Transmit HDMI signal over one CAT5e/6/7 cable.

Flexible and scalable HDMI 1080p Broadcasting with Gigabit Ethernet LAN.

Support point to point and point/multi to multi-display connections via Gigabit network switch.

HDMI input : HE05BT transmitter maximum up to 16 pcs.

HDMI output: HE05BER receiver maximum up to 254 pcs.

Built in window based management software, using computer for easy setting

input/output link and transmission.
HE05BER receiver built in IR remote control to select input channel if the system do not

have PC.
Built in one individual stereo audio transmission to do sound broadcasting.

Support HDMI resolution up to 1080p at 150M.

HDMI 1.3b and HDCP compliant.

HDMI audio support up to LPCM 7.1@192Khz

Use IGMP protocol Gigabit Switch Hub to do HD signal distribution and transmission.

Applications for digital signage, home network integration, and industrial control, hospital,

education, security.
Package includes a VESA mounting bracket to allow HE05BER receiver to mount at back

side o monitor.
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
HDMI over IP Broadcasting System
It is perfect application for any digital signage application with screens
