SC&T HE04SEK Manual

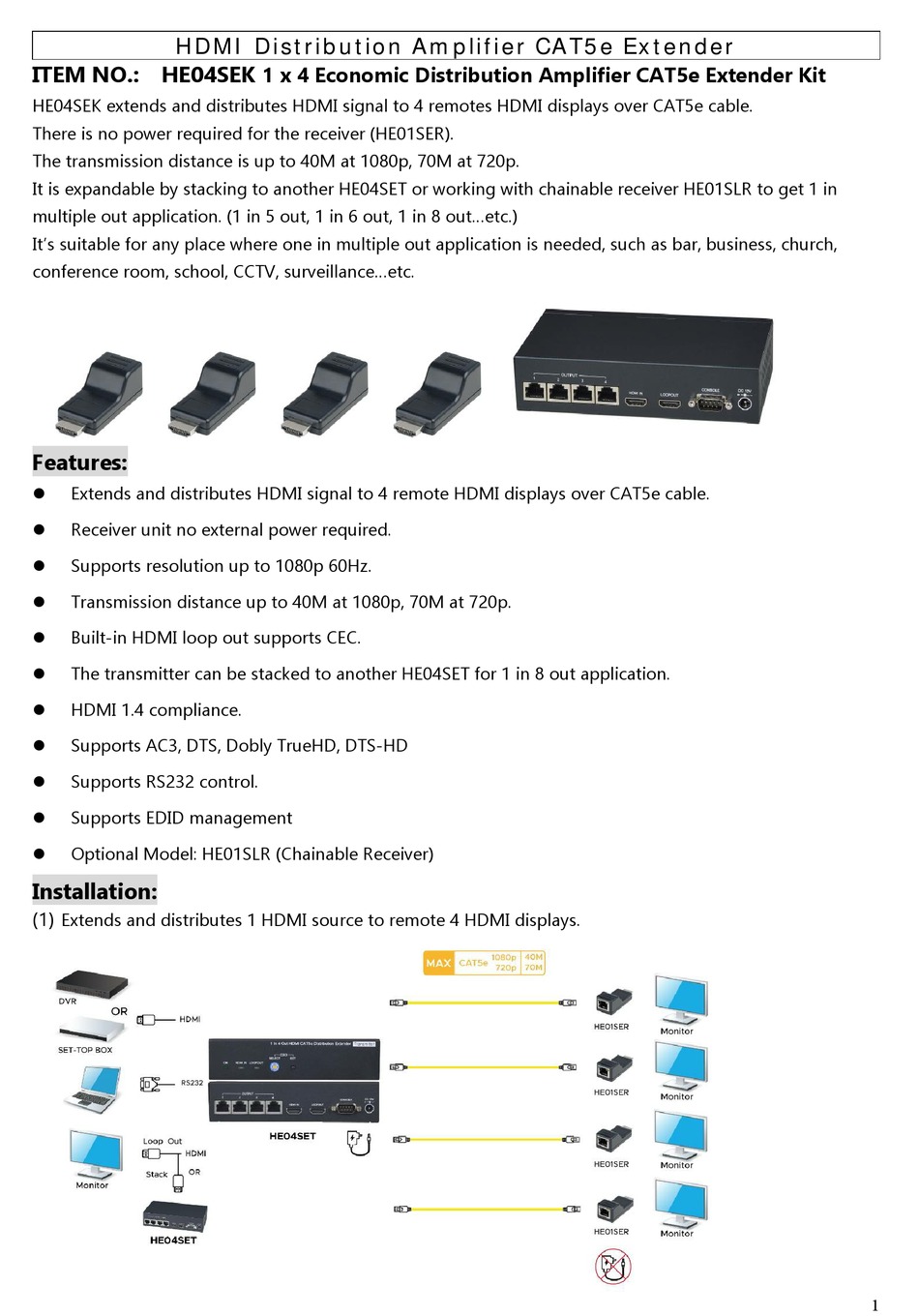

HDMI Distribution Amplifier CAT5e Extender
ITEM NO.: HE04SEK

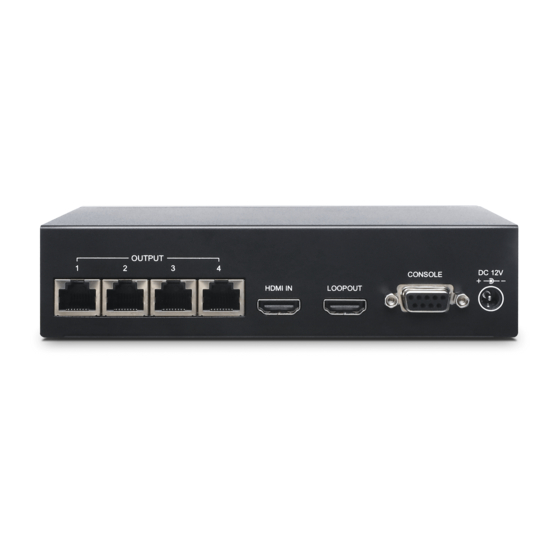

HE04SEK extends and distributes HDMI signal to 4 remotes HDMI displays over CAT5e cable.
There is no power required for the receiver (HE01SER).
The transmission distance is up to 40M at 1080p, 70M at 720p.
It is expandable by stacking to another HE04SET or working with chainable receiver HE01SLR to get 1 in
multiple out application. (1 in 5 out, 1 in 6 out, 1 in 8 out...etc.)
It's suitable for any place where one in multiple out application is needed, such as bar, business, church,
conference room, school, CCTV, surveillance...etc.
Features:
Extends and distributes HDMI signal to 4 remote HDMI displays over CAT5e cable.

Receiver unit no external power required.

Supports resolution up to 1080p 60Hz.

Transmission distance up to 40M at 1080p, 70M at 720p.

Built-in HDMI loop out supports CEC.

The transmitter can be stacked to another HE04SET for 1 in 8 out application.

HDMI 1.4 compliance.

Supports AC3, DTS, Dobly TrueHD, DTS-HD

Supports RS232 control.

Supports EDID management

Optional Model: HE01SLR (Chainable Receiver)

Installation:
(1)
Extends and distributes 1 HDMI source to remote 4 HDMI displays.
1 x 4 Economic Distribution Amplifier CAT5e Extender Kit
1
