SC&T IP02 Manual

IP CABLING TRANSMISSION – Active Series
ITEM NO.: IP02, IP03
IP02/IP03 IP extender are designed to extend any TCP/IP devices for long range transmission up
to 1.2Km over existing coaxial or cost effective CAT5 cable. They are completely transparent to
protocols, codes, and applications ensuring compatibility with any IP camera and its management
software. It is perfect solution for sending IP video links to remote camera installation that are
beyond the 100 meters distance limit of Ethernet.
IP02 Active IP Extender over Coax
Send and extend IP camera signal or any TCP/IP devices over existing coaxial cable.
Active type, including transmitter and receiver.
Plug and play for easy connection
Long range transmission up to 1800 meters ( Max.)
IP03 Active IP Extender over CAT5
Identical to IP02, but over CAT5 cable instead of coaxial cable.
Long range transmission up to 1200 meters ( Max.)

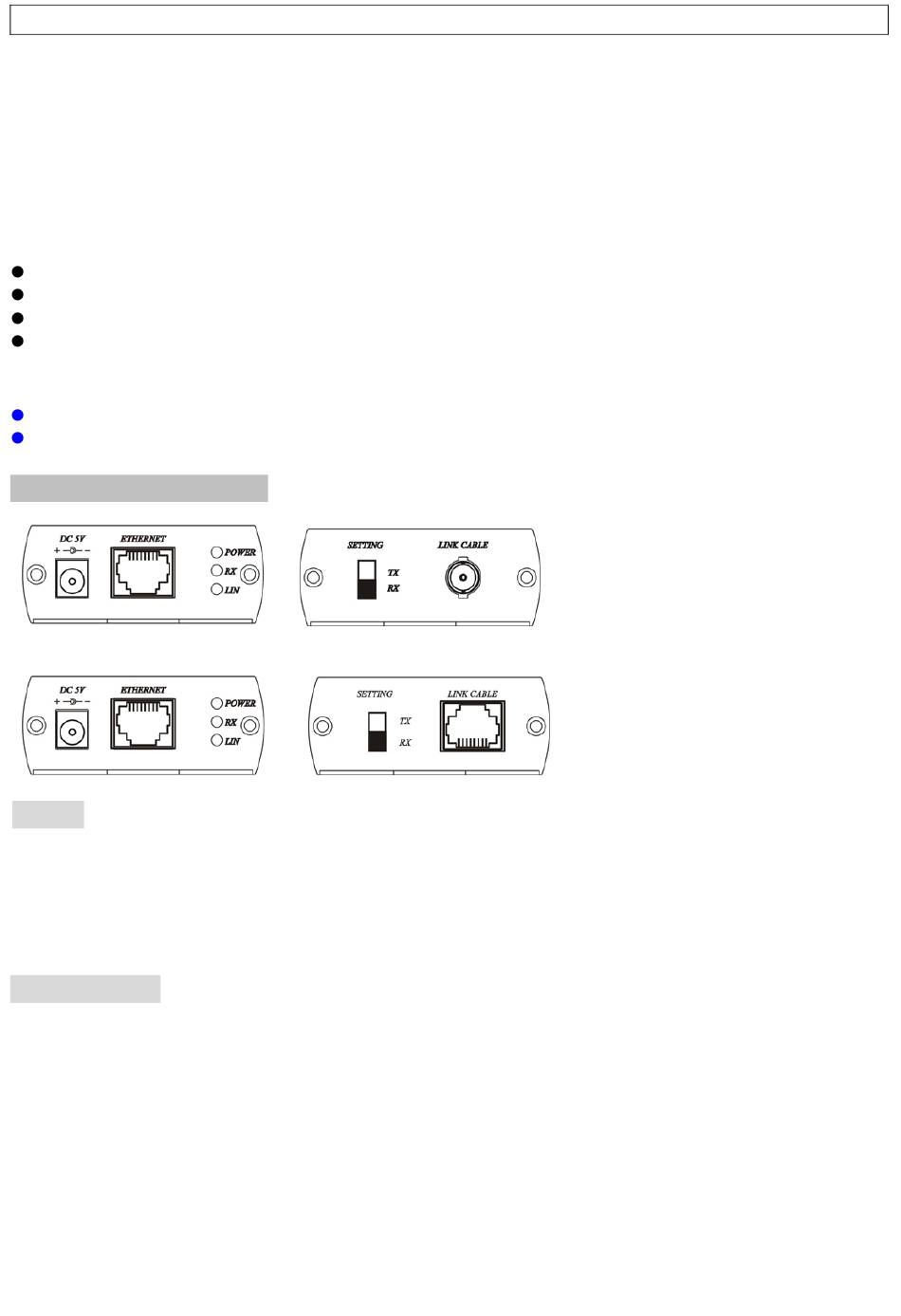

Panel view & Function:
IP02
IP03
Cable:
IP02 link cable: Hi quality coax cable such as RG59/U
Ethernet: Standard CAT5/CAT5e cable.
IP03 Link Cable/ Ethernet : Standard CAT5/CAT5e cable.
Cable Define:
IP02 Link Cable
1. Central
2. Ground
IP03 Link Cable (TIA/EIA-568-B)
1. Orange-white
2. Orange
3. Green-white
4. Blue
5. Blue-white
6. Green
DATA +
DATA -
DATA -
DATA +
Reserve
Reserve
Reserve
Reserve
