Notes:
1. When connect HDMI display with loop out port, please make sure HDMI cable connects to the
Input 1 of HDMI display.
2. It is recommended using UTP cable.
3. When using the STP cable, the transmission distance might be shorter. (CAT6a: 25-30M,
CAT7:25- 40M)
4. The cable must be straight, do not roll the cable to avoid crosstalk interference.

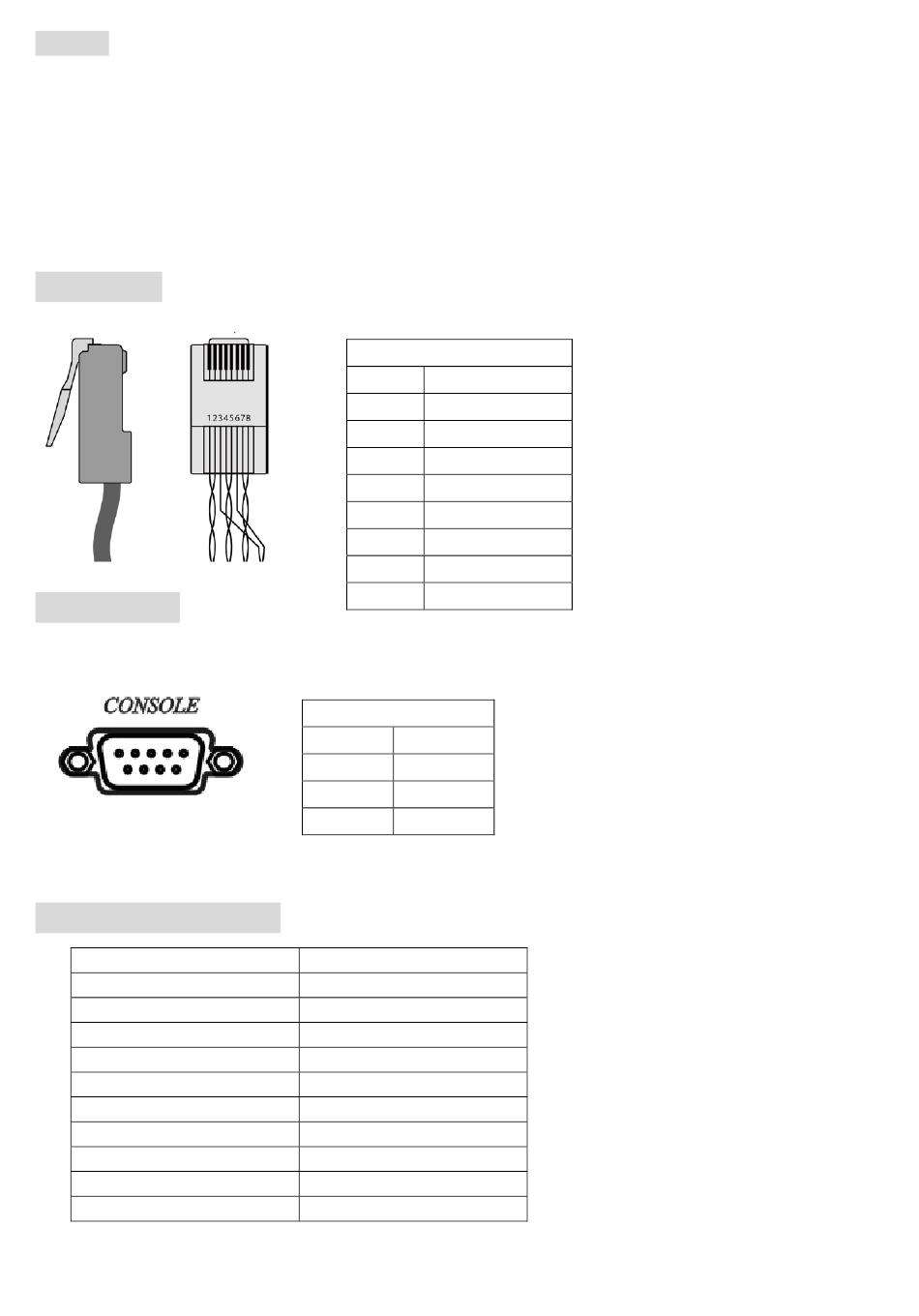

RJ45 Pinout
(PIN TIA/EIA-568B)
RS232 Wiring
Hyper Terminal setting:〔57600bps (8-N-1)〕
Note: Pins not shown in table have no connection

RS232 Command Table

Command
OFF 1(Enter)
OFF 2(Enter)
OFF 3(Enter)
OFF 4(Enter)
OFF 5(Enter)
ON 1(Enter)
ON 2(Enter)
ON 3(Enter)
ON 4(Enter)
ON 5(Enter)
(PIN TIA/EIA-568B)
PIN Wire Color
1 Orange-white
2 Orange
3 Green-white
4 Blue
5 Blue-white
6 Green
7 Brown-white
8 Brown
RS232
Pin Definition
2 TX
3 RX
5 GND
Description
OUTPUT 1 OFF
OUTPUT 2 OFF
OUTPUT 3 OFF
OUTPUT 4 OFF
HDMI LOOPOUT OFF
OUTPUT 1 ON
OUTPUT 2 ON
OUTPUT 3 ON
OUTPUT 4 ON
HDMI LOOPOUT ON
