- Page 1 HDMI Distribution Amplifier User Manual Model : HE04SEK 1x4 Out HDMI Distribution Amplifier CAT5e Extender Kit Smart Cabling & Transmission Corp. V1.0...
-
Page 2: Installation View
HE04SEK Introduction HE04SEK is an HDMI distribution extender that can use CAT5e cables to not only extend one HDMI but also split it into 4 HDMI signal for remote displays. Its RX units don't require external power supplies. and have built-in HDMI connectors that allow the RX to directly connect to HDMI devices. - Page 3 User Manual HE04SEK Works with chainable receiver HE01SLR (Max. 3pcs) to get extra transmission distance and outputs. Stack to another HE04SET through HDMI loop out port to get configuration of 1 in 8 out.
-
Page 4: Panel Review

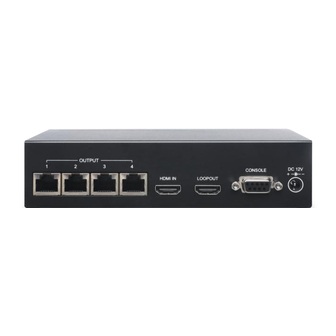

User Manual HE04SEK Panel Review HE04SET Interface Description Green LED Green light indicates “ON” status. Blue LED Blue light indicates “HDMI IN” is connected to HDMI source. Blue LED Blue light indicates “LOOPOUT” is connected to HDMI display. Rotary Switch To select EDID by rotating the switch from 0 to F. - Page 5 User Manual HE04SEK RJ45 Pinout (PIN TIA/EIA-568B) Wire Color Orange-white Orange Green-white Blue Blue-white Green Brown-white Brown RS232 Configuration Wiring Terminal setting: 57600bps (8-N-1) Definition Pins not shown in the table have no connection. RS232 Commands Command Description OFF 1 (Enter)
-
Page 6: Edid Configuration
User Manual HE04SEK EDID Configuration Step 1: Refer to EDID table and find the number of which EDID is needed. (0~F) Step 2: Rotate the rotary dip switch arrow to the selected number. Step 3: Click “SET” button and the two blue LEDs will flash quickly. -
Page 7: Package Includes
The wiring must be away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines. HE04SEK isn’t networking device, please do not connect with Ethernet device to avoid damages. Package Includes Item Amount... -
Page 8: Specification
User Manual HE04SEK Specification: ITEM NO. HE04SET HE01SER Support Compliance HDMI 1.4, CEC Max. Video Resolution 1080p@60Hz Max. Transmission Distance 40M at 1080p over CAT5e or better cable RS232 Baud Rate 57600 bps Audio Format AC3, DTS, Dolby TrueHD, DTS-HD Ports &...
