Connection Layout; Warnings - Key-Disp KD58C User Manual

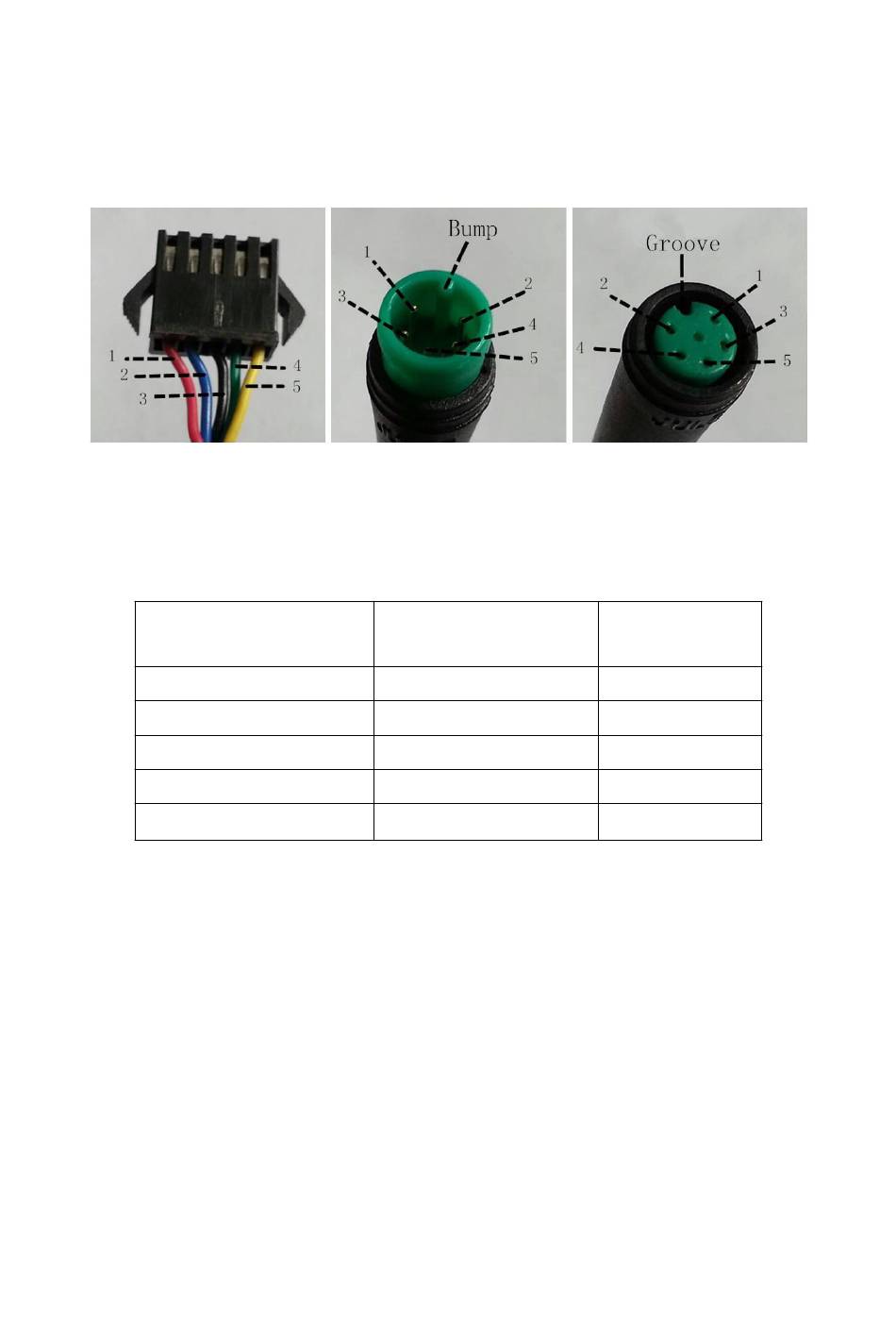

Wire connection layout
Connector wire sequence
Connector to controller
Wire sequence
■Some products have wire connection with water-proof connectors, users can
not see the color of wires in the harness.

Warnings:

1. Use the display with caution. Don't attempt to release or link the connector when
battery is on power.
2. Try to avoid hitting the display.
3. Don't modify system parameters to avoid parameter disorder.
4. Make the display repaired when an error code appears.
THIS MANUAL INSTRUCTION IS A GENERAL-PURPOSE VERSION.SOME OF
▉
THE VERSIONS FOR THE DISPLAY SOFTWARE WILL BE DIFFERENT FROM
SPECIFICATION TO SPECIFICATION. PLEASE ALWAYS REFER TO AN
ACTUAL VERSION
display end
Wire sequence table
1
2
3
4
5
connection wire end to display
Color
Red(VCC)
Blue(K)
Black(GND)
Green(RX)
Yellow(TX)
12
Function
+
Lock
-
RX
TX
