Wire connection layout

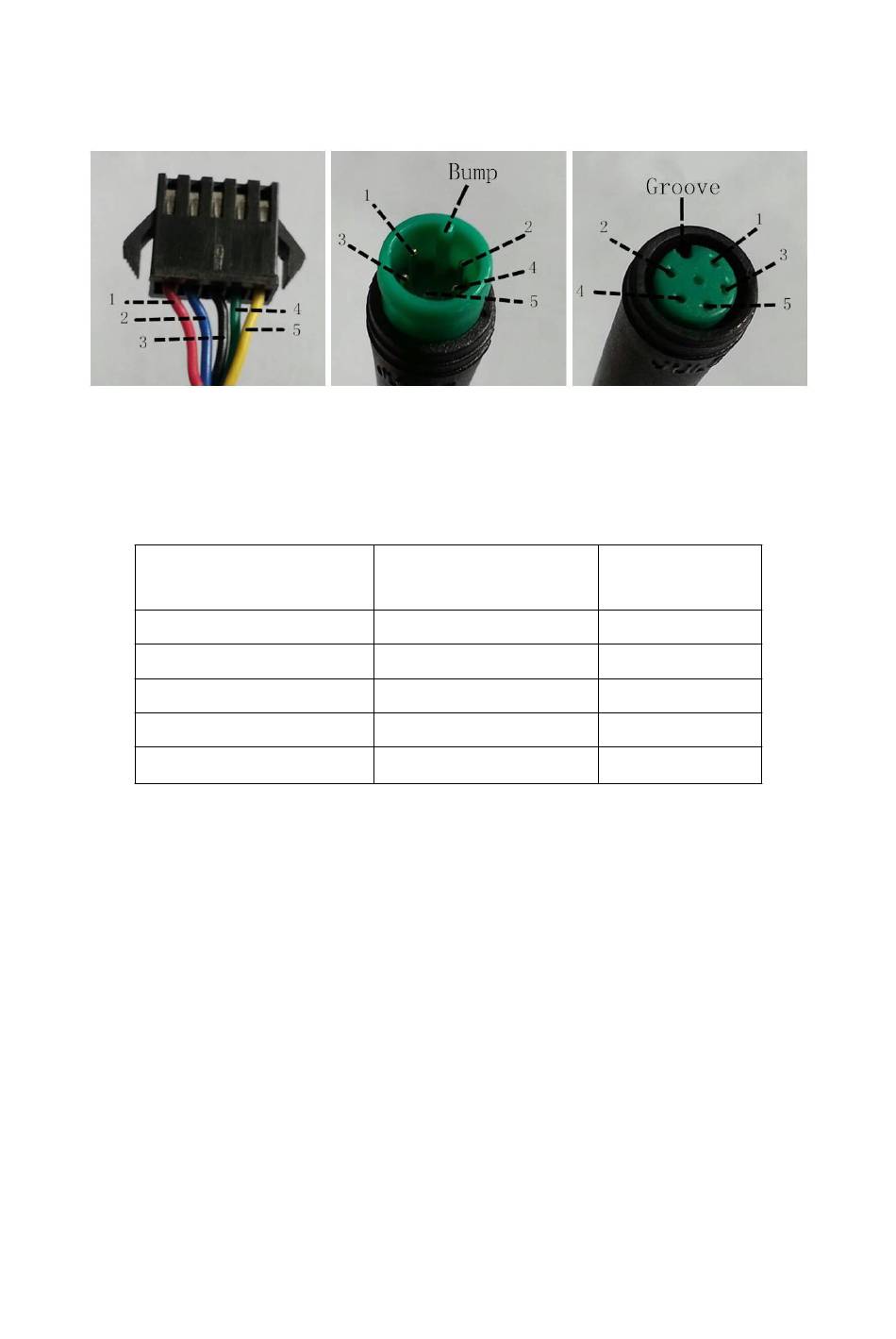

Connector wire sequence
Connector to controller
Wire sequence
■Some products have wire connection with water-proof connectors, users can
not see the color of lead wires in the harness.

Warnings:

1. Use the display with caution. Don't attempt to release or link the connector when
battery is power on.
2. Try to avoid hitting the display.
3. Don't modify display background parameters to avoid parameter disorder. Or else,
you will not be able to ride the bike normally.
4. Have the display repaired when it does not work properly.
▉This manual instruction is a universal version for DISPLAY KD58C. Some versions
of this display may be different from specification to specification as to the software.
Please always refer to an actual version.
display end
Wire sequence table
1
2
3
4
5
connection wire end to display
Color
Red(VCC)
Blue(K)
Black(GND)
Green(RX)
Yellow(TX)
12
Function
+
Lock
-
RX
TX
