6.4 Identification

6.4.1 Nameplate
DK-8850 Bjerringbro, Denmark
14
SCALA2 3-45 AKCHDE
Model A
15
200-240V 50/60Hz
Made in Serbia
16
PCS XXXXX.XX.XX 04-6292.2.41-2003
LSPr-022-IDN
NRP XXX-XXX-XXXXXX
I(A)
Min. 0.01
Max. 2.8
1

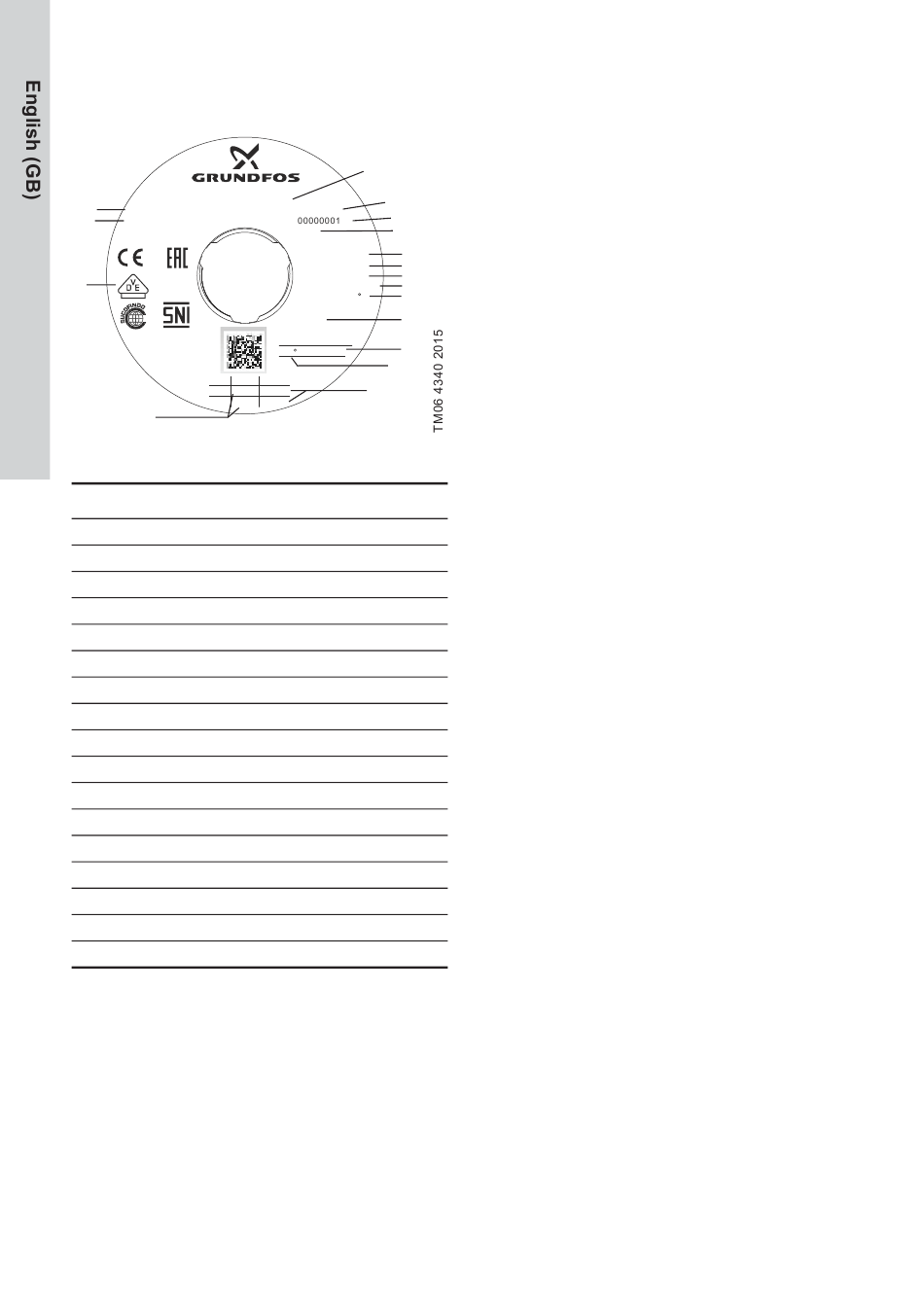

Fig. 12 Example of nameplate
Pos. Description
1 Type designation
2 Product number
3 Serial number
4 Production code (year and week)
5 Maximum head
6 Minimum head
7 Rated head
8 Rated flow rate
9 Maximum ambient temperature
10 IP class
11 Maximum operation pressure
12 Maximum liquid temperature
13 Minimum and maximum rated power
14 Model
15 Voltage and frequency
16 Approvals
17 Minimum and maximum rated current
10
1
2
P/N 99999999
3
S/N
4
P/C 1519
5
H 45 m
max
6
H 16 m
min
7
H 27 m
nom
8
3
Q 3 m /h
nom
T 55 C 9
amb.max
10
IPX4D
T /P
liq.max syst.max: 11
45 C/
1MPa
12
P1(W)
13
2
550
