Lockly LATCH EDITION SECURE PGD628 Installation Manual page 17

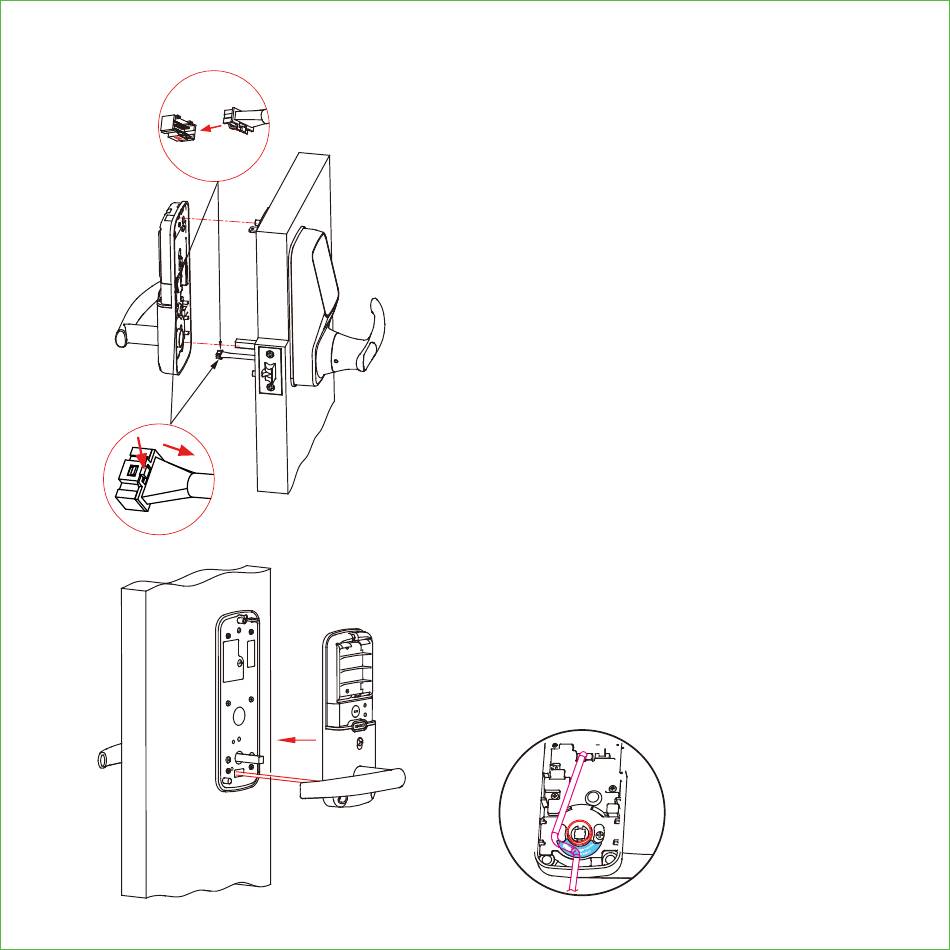

6.5
Plug the cable that is coming through
the door into the lock interior. Make sure
you match the direction of the plug
correctly and matching the red side of
the plug with the red side on the lock.
Secure the connection by ensuring the
snap is inserted tightly.
In case you need to reinstall the lock and
disconnect the cable, make sure to press
the snap to release the plug before carefully
pulling it out. Do not force to pull the plug as
this may result to lose connection and
damage the lock.
6.6
Align the square rod to the lock interior
and attach the Interior lock to the Interior
mounting plate.
While you are doing so, gently push
some of the excess cable through the
rectangular hole into the door.
Place the remaining cable against the
interior side of the lock interior so the
lock interior sits securely onto the
mounting plate.
