STEP 3: CHANGING HANDLE ORIENTATION FOR
RIGHT OR LEFT SWING DOORS
How to determine if your door is a Right Swing or Left Swing door?
While facing the door, if the door hinges are on the right side of the door, you have a Right Swing
Door. If the hinges are on the left side of the door, you have Left Swing Door.
The lock ships default for Right Swing Doors. You may skip STEP 3 if your door is a
Right Swing Door. To change your door handle orientation for a left swing door,
please continue reading.
Changing the Exterior Handle Orientation
3.1

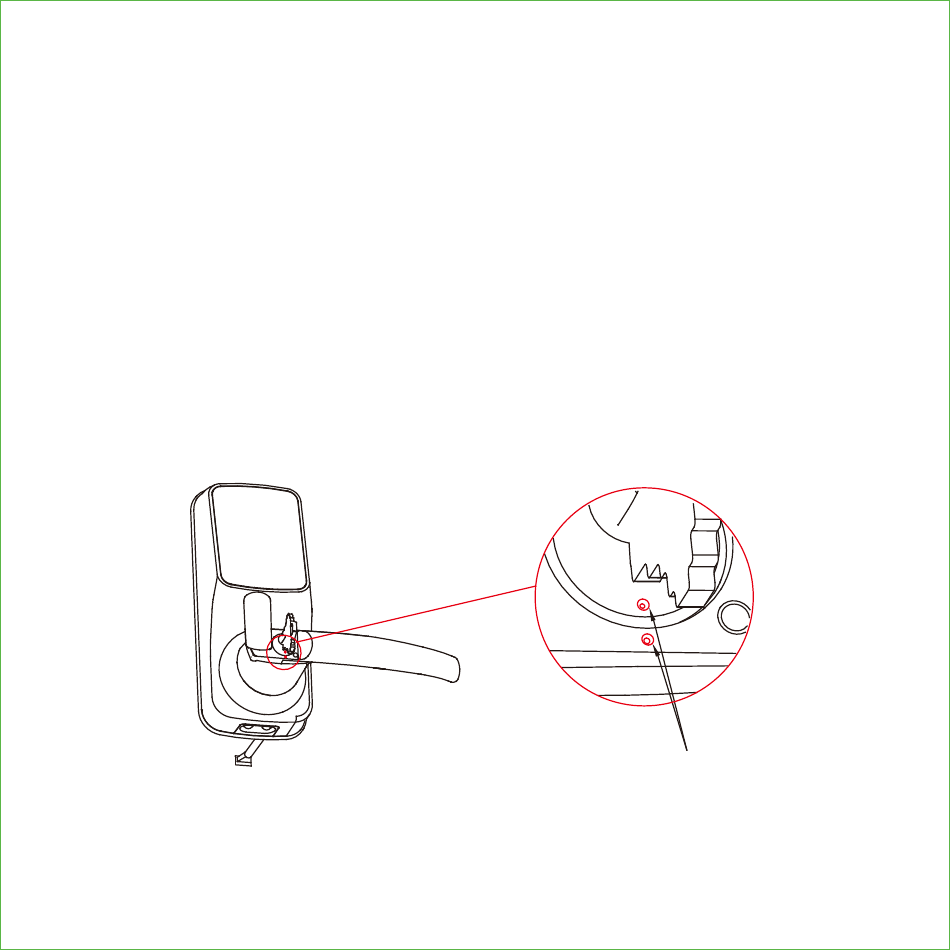

Insert the key and rotate to align the
two white dots as shown in the picture.
IMPORTANT:
The following steps are only possible
when these two white dots are aligned!
