Lockly LATCH EDITION SECURE PGD628 Installation Manual page 13

STEP 4: PREPARING LOCK FOR INSTALLATION
If you drilled a hole in Step 1, use Slotted Barrel Extension (U) and securely tighten with a flat head screwdriver
by turning it clockwise onto the lock. If you did not drill a hole in step 1, you can leave this pole removed.

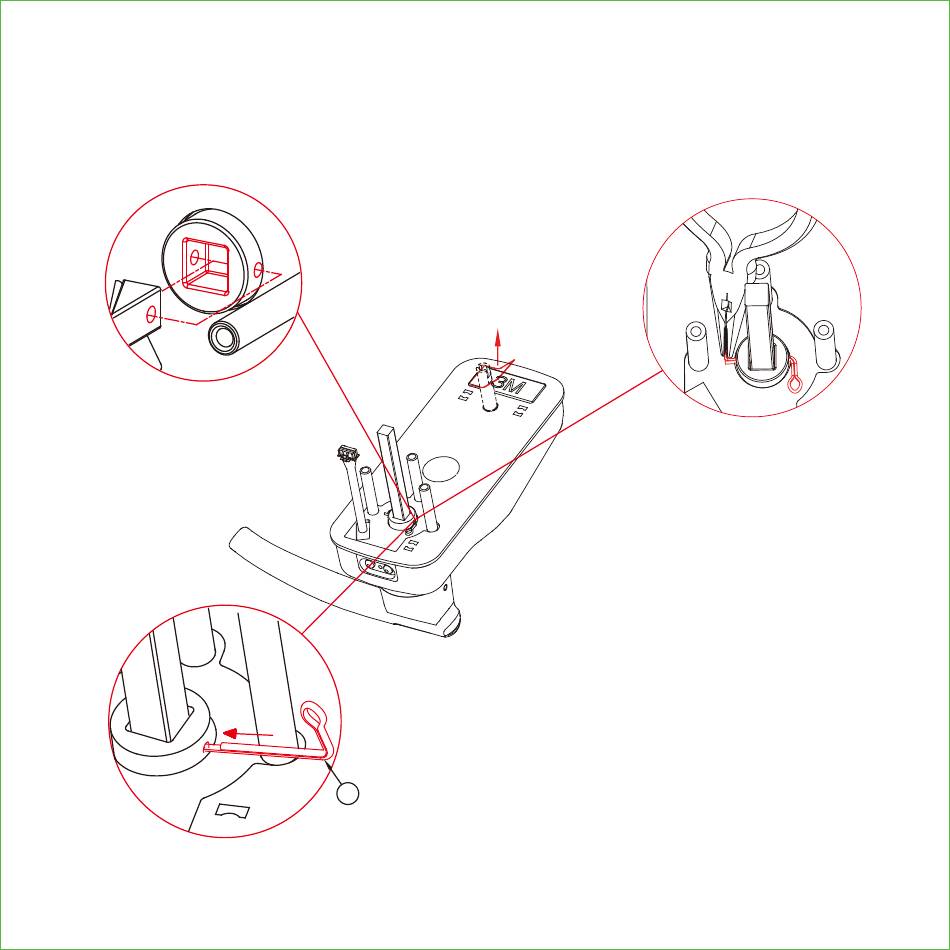

4.1
Install Spindle (C) with the holes
side into the base of the lock
and align the holes locate in
the 3 o'clock and 9 o'clock
position.
4.2
Insert locking pin (D) in to
the hole as shown above.
D
4.3
Carefully bend the end of the locking
pin (D) with a needle nose pliers.
Failure to bend the locking pin and turn
the handle freely without obstruction will
result to malfunction.
Peel paper layer OFF the Adhesive
4.4
tape and prepare for installation.
