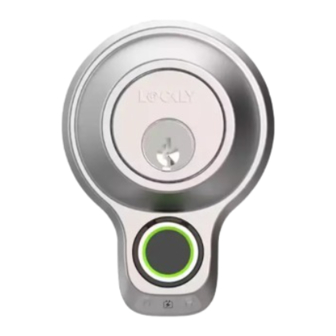

- Page 1 Enjoy the freedom ACCESS TOUCH PRO INSTALLATION GUIDE WI-FI CONNECTED FINGERPRINT DEADBOLT...
- Page 2 Welcome! This guide will walk you through step-by-step how to install and get your Lockly Access Touch Pro up and running. Installation generally takes less than 30 minutes. If you have any questions please reference our online support at: Lockly.com/support or call (669) 500-8835 for help.
- Page 3 Preparation To complete installation, you would need the following: Phillips Screwdriver Tape measure or ruler Prepare door and remove existing lock. If necessary, use provided Installation Template to prepare door. 2-⅜" (60mm) or 2-¾" (70mm) 1-⅜" (35mm) to 2" (50mm) *Optional 1"...
- Page 4 Step 1 ADJUST DEADBOLT AND INSTALL Deadbolt slot must align to the center of the door hole. Adjust as shown if needed. 2-3/4" (70mm) or 2-3/8” (60mm) The deadbolt comes set to 2-3/4" (70mm). Adjust length to 2-3/8” (60mm) if necessary (wear gloves to protect from possible pinching). Push the crank to extend the deadbolt...
- Page 5 Step 1 ADJUST DEADBOLT AND INSTALL continued Extend the deadbolt by inserting Insert deadbolt to the door edge, make sure that the right side is up a flat-head screwdriver into the and the slot is in the vertical position. slot and turning clockwise. Secure with 2 screws.
- Page 6 Step 2 INSTALLING EXTERIOR ASSEMBLY (B) Before mounting exterior lock assembly (B) make sure torque blade is in the vertical position while deadbolt is extended [1]. Place assembly and torque blade through the deadbolt slot and guide connection cables through the cross- bore hole under the deadbolt as shown.
- Page 7 Step 2 INSTALLING EXTERIOR ASSEMBLY (B) continued 1: Check mounting plate 2: Align and secure mounting plate alignment to door hole before with adhesive strips. Guide connection securing with adhesive strips. cable through and secure to the lower left notched hole. Remove key when finished Leave deadbolt extended 4: Use the key to ensure deadbolt locks...
- Page 8 It also sends push notifications to your phone whenever your door opens and enables voice control with Amazon Alexa or Hey Google. Lockly Access Touch Pro comes with a pre-wired door sensors consisting of two parts: Part (P) - Wired...
- Page 9 Step 3 PREPARING WIRED DOOR SENSOR continued When installing the wired door sensors, make sure the arrow on the wired sensor aligns to the arrow of the sensor magnet as close as possible. 2-3/8" (60mm) Foam pad 2-3/4" (70mm) 3/4" (20mm) The sensors need to be as close to level as possible.
- Page 10 Step 3 PREPARING WIRED DOOR SENSOR continued The interior assembly comes For left swing doors, re-route with the pre-installed wired the door sensor wire through door sensor setup for a right the side channel. Pull the foam swing doors with 2 ¾" (70mm) pad then re-insert to secure the backset*.
- Page 11 Step 4 INSTALLING INTERIOR ASSEMBLY (F) Plug the cable coming through mounting plate into the interior assembly as shown. Tuck cable under eyelet hooks and route to the right on interior assembly Plug into , match red side of plug with red on socket- insert tightly.
- Page 12 Step 4 INSTALLING INTERIOR ASSEMBLY (F) continued Torque Blade Thumb turn shaft Align torque blade with thumb turn shaft, make sure both are in the vertical position. Before placing the Place the interior assembly Secure the interior interior assembly against the mounting assembly to mounting onto the mounting plate and make sure the...
-
Page 13: Installing Batteries
Step 5 INSTALLING BATTERIES PRESS & HOLD 1: With door open and deadbolt fully extended, place ribbon inside compartment and insert 4 batteries (note correct -/+ polarity). 2: After all batteries are installed, PRESS and HOLD the program button for 10S. The lock will automati- cally start self-check (release program button once check starts). - Page 14 Step 6 INSTALLING WIRED DOOR SENSOR Make sure you have prepared the door sensors for installation, see step 3. LOCK SENSOR (P) Install on the interior side only. If necessary, trim tab from sensor for doors with 2-3/8" (60mm) backset. Clean surface of door and doorframe, remove film from adhesive, attach and secure close to door edge as shown.
- Page 15 Once satisfied both sensors are as level as possible, remove film from adhesive and install with arrows aligned to each other with less than a 3/4" gap between each sensor. NOTE: When properly installed, the Lockly logo blinks red when door opens and closes.
- Page 16 Step 7 INSTALLING DOOR STRIKE Use the supplied door strike or use your existing as long as deadbolt operates smoothly without binding or catching. K(2X) IMPORTANT: Because doors and frames vary in design, it may be necessary to make slight adjustments to your strike plate and/or dust box in order to ensure smooth deadbolt operation.
- Page 17 Hey Google or Amazon Alexa, you will need to setup the included Secure Link Wi-Fi hub and pair it with the Lockly Access Touch Pro fingerprint deadbolt smart lock and door sensor. Before connecting Secure Link Wi-Fi hub, download the Lockly app on your smartphone.
- Page 18 Step 9 SECURE LINK WI-FI HUB SETUP To set up your Lockly Access Touch Pro, choose an appropriate location for the Secure Link Wi-fi Hub for optimum performance (see below). For optimum connectivity, it is recommended that the hub be no further away from the lock than 30 feet (9 meters).
- Page 19 Setup Button Once you have confirmed that your Secure Link Wi-Fi Hub is ready to connect to your lock, open the Lockly App from your smartphone. Make sure you are standing between the Wi-Fi hub and Lockly smart...
- Page 20 9:41 AM 100% ●●●●● AT&T Plug in your Secure Link Input Activation Code and Click "YES" AT&T 9:44 AM 100% ●●●●● AT&T 9:44 AM 100% Activation Card SAVE Turn to the next page Need help? Email: help@Lockly.com | Support: +1(669) 500-8835...
- Page 21 Step10 CONNECTING YOUR LOCKLY ACCESS TOUCH PRO continued Green light is on Set Wi-Fi Select lock Bluetooth Click “Yes” when the AT&T 9:47 AM 100% 9:46 AM 100% AT&T 9:45 AM 100% AT&T 9:46 AM 100% AT&T Successfully Added 9:49 AM...
-
Page 22: Voice Control
Alexa Skill or Lockly Action on Google. TIP: In Google Home or Amazon Alexa app, add Lockly skill for Alexa or Lockly Action on Google, then follow on screen instructions. See full list of commands, help videos, or troubleshooting your Lockly at https://Lockly.com/help... - Page 23 Bonus WIRELESS WINDOW/ DOOR SENSOR Adding wireless door/window sensor is optional. For extra peace of mind we have included a wireless sensor you can use to replace the pre-wired sensor or use it for another door or even for a window. We recommend installing this sensor as it provides the ability to verify that your door or window is securely closed and it also sends push notifications to your phone on the status of your door or window when someone opens and...
- Page 24 If you have replaced or deleted the sensor, you will need to pair it again following these steps: In the Lockly App, go to Settings>Secure Link/ Sensor, then select “Add new sensor” , then “Add Wireless Sensor”. Lockly continuously optimizes user experience, please follow the actual screen instructions on the app.
- Page 25 FCC Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 26 For more information go to www.P65Warnings.ca.gov. For the latest version of this manual, please visit the following Lockly.com/help link: We’re here to help! help@Lockly.com To ensure you have access to the most updated and newly added features of your Lockly smart lock, please visit: www.Lockly.com/newfeatures...
- Page 27 Activation Card Wired Sensor Sensor Magnet Wi-Fi Hub Power Adaptor Wireless Door Sensor Activation Card SAVE Lockly Access Touch Pro can be fitted for both right swing doors and left swing doors. Need help? Email: help@Lockly.com | Support: +1(669) 500-8835...
- Page 28 ACCESS TOUCH PRO To download the latest digital copy of installation guide, user manual and/or watch instructional videos, go to Lockly.com/installation.
- Page 29 ® the Bluetooth SIG, Inc. , and any use of such marks by Lockly is under license. Other trademarks and trade names are those of their respective owners. Google, Android, Google Play and Google Home are trademarks of Google LLC.
