Lockly LATCH EDITION SECURE PGD628 Installation Manual page 16

Screw (O)
*Secure top with M1 or M2
Screw (O)

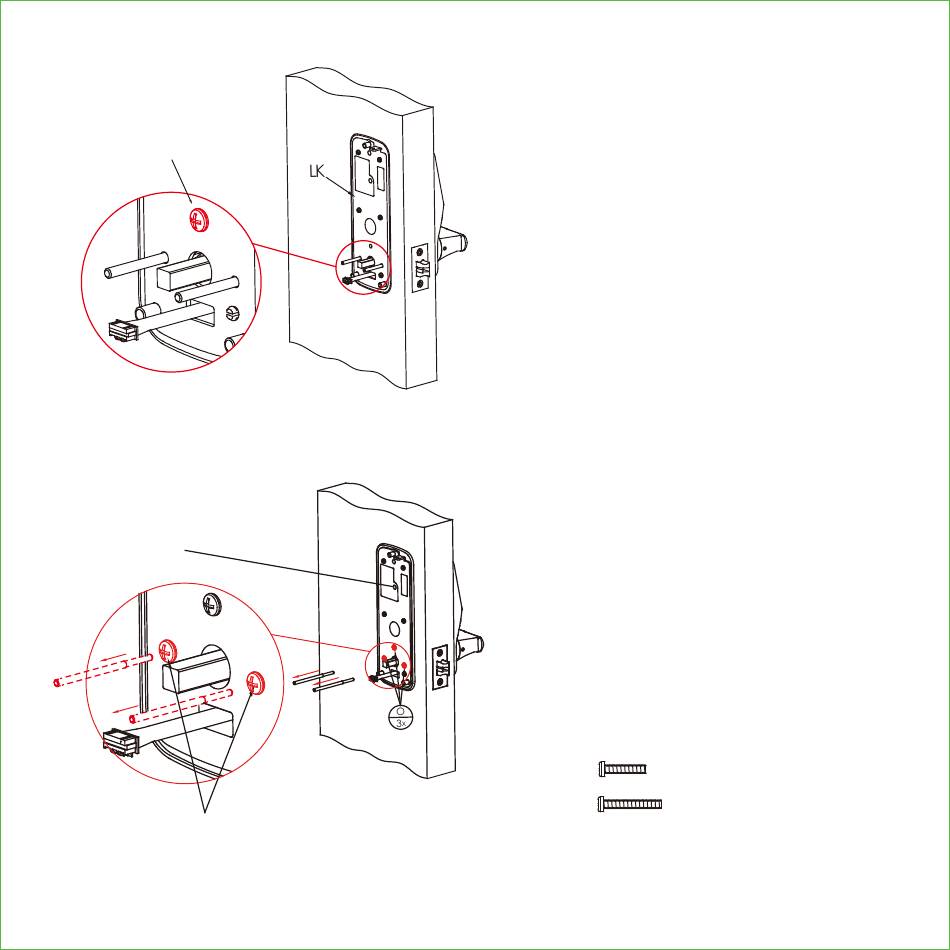

6.3
Pull the cable from the lock exterior
through the rectangular hole
underneath the positioning rods
and spindle.
Secure the hole above the
spindle with screws (O).
6.4
Remove the position rods (V)
and replace them with screws (O)
Tighten clockwise until the mounting
plate is secure.
* If you have drilled a hole on the
top in Step 1, please secure the
hole with screw M1 or M2 depending
on your door thickness. Skip this if
no hole was drilled in Step 1.
M 1
P M 5 X 2 5 m m
M 2 P M 5 X 3 5 m m
