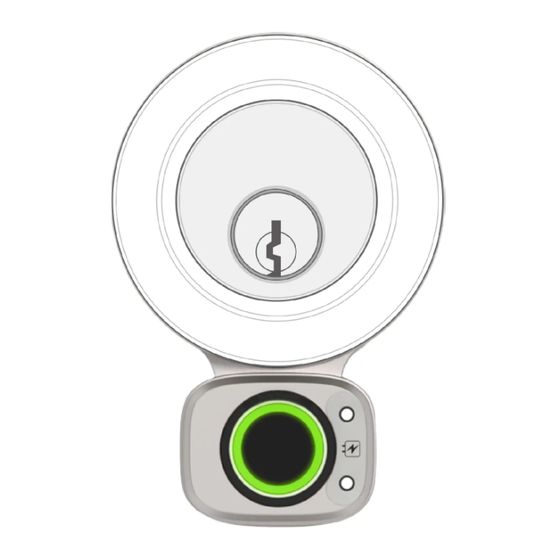

- Page 1 Enjoy the freedom FLEX TOUCH PRO 3D FINGERPRINT SCANNER FOR DEADBOLTS INSTALLATION GUIDE...
-
Page 2: Required Tools
Failure to do so will impede the performance of the Lockly Flex Touch Pro. If needed, Lockly offers standard mechanical deadbolts designed to work with Lockly Flex Touch Pro to replace old or worn deadbolts. To purchase, visit www.lockly.com/accessories or call our Customer Hotline: (669) 500-8835. - Page 3 Step 1 REMOVE EXISTING DEADBOLT Remove the existing lock installed on your door and retain the deadbolt.
-
Page 4: Remove Existing Deadbolt
Step 1 REMOVE EXISTING DEADBOLT continued There are primarily 3 different styles of deadbolts (shown below) found on most doors. Depending on which type yours is, you may need to do a slight modification on your door hole (trim by wood file or utility knife) to ensure the cable of the fingerprint sensor is not pinched between the door and the lock. - Page 5 Step 2 INSTALLING FINGERPRINT SENSOR Depending on the style and shape of your existing deadbolt, select either the square or round , provided mounting plate. Round Mounting With the mounting plate Plate facing out, route the cable on the fingerprint sensor through the deadbolt hole as shown.
- Page 6 Step 2 continued INSTALLING FINGERPRINT SENSOR Guide the cable through the Remove protective paper door hole under the existing from adhesive strips. deadbolt. Insert the Positioning Sleeve Open area positioned at the bottom Door Exterior Existing Deadbolt CABLE UNDER DEADBOLT BODY * If you trimmed or filed your door hole, the cable should be seating IMPORTANT:...
- Page 7 Step 3 INSTALLING THE EXTERIOR ASSEMBLY Make sure the deadbolt If necessary, remove key is extended. from deadbolt Reinstall the deadbolt . According to the following figure, select an appropriate installation method based on different brands of deadbolts.(The diagram shows the right swing door) Note: The brand LOGO of the deadbolt is on the top.
- Page 8 Step 3 continued INSTALLING THE EXTERIOR ASSEMBLY Schlage Deadbolt Defiant Deadbolt Left swing door : Left swing door : First turn clockwise to Turn clockwise until the bottom, and then you can no longer turn counterclockwise turn. to the direction shown in the picture (Angle Door Exterior Door Exterior...
- Page 9 Step 4 INSTALLING THE INTERIOR ASSEMBLY Select the appropriate spindle/torque blade adapter that matches your lock based on the deadbolt . There are approximately 4 different deadbolts on the market, and for each deadbolt there are detailed instructions on the installation diagram. Kwikset Deadbolt : Open the door left, select the gold adapter, open the door right, select the black adapter.
- Page 10 Step 4 continued INSTALLING THE INTERIOR ASSEMBLY Defiant Deadbolt select green adapter. Green Attached the temporary positioning guide tool to the selected adapter to form the adapter assembly. You will use the adapter in the succeeding steps. (Select an adapter based on the brand of deadbolt you are not using, as shown in the previous step Adapter Assembly If none of the provided adapters match...
- Page 11 Step 4 INSTALLING THE INTERIOR ASSEMBLY continued Secure the rubber gasket to the interior mounting plate. Route the sensor cable through the notched rectangular hole located at the bottom of the mounting plate...
- Page 12 Step 4 continued INSTALLING THE INTERIOR ASSEMBLY Attach the adapter assembly to the torque blade or spindle. Ensure assembly mated with the torque blade or spindle and it is level with the lock and the mounting plate. Check alignment of the mounting plate before securing it with adhesives.
- Page 13 Step 4 continued INSTALLING THE INTERIOR ASSEMBLY Insert and hand tighten backplate screws. Adjust alignment as needed and tighten with a screwdriver until mounting plate is secure. *Use the existing screws of your deabolt. Make sure the screw head will not pass through the mounting plate holes.
- Page 14 Step 4 continued INSTALLING THE INTERIOR ASSEMBLY Using the key for your Remove positioning tool deadbolt, test locking and and return adapter unlocking to ensure smooth torque blade or spindle. operation. If there is binding or resistance, loosen the back NOTE: Positioning tool must plate mounting screws...
- Page 15 It also sends push notifications to your phone whenever your door opens and enables voice control with Amazon Alexa or Hey Google. Lockly Flex Touch Pro comes with a pre-wired door sensors consisting of two parts: Part (P) - Wired...
- Page 16 Step 5 PREPARING WIRED DOOR SENSOR continued When installing the wired door sensors, make sure the arrow on the wired sensor aligns to the arrow of the sensor magnet as close as possible. 2-3/8" (60mm) Foam pad 2-3/4" (70mm) 3/4" (20mm) The sensors need to be as close to level as possible.
- Page 17 Step 5 PREPARING WIRED DOOR SENSOR continued The interior assembly comes For left swing doors, re-route with the pre-installed wired the door sensor wire through door sensor setup for a right the side channel. Pull the foam swing doors with 2 ¾" (70mm) pad then re-insert to secure the backset*.
- Page 18 Step 6 INSTALLING THE INTERIOR ASSEMBLY Plug the cable coming through mounting plate into the interior assembly as shown. Tuck cable under eyelet hook and route to the right on interior assembly. Plug into , match red side of plug with red on socket - insert tightly. Push any excess cable that might interfere with the back assembly or the spindle/torque blade back...
- Page 19 Step 6 continued INSTALLING THE INTERIOR ASSEMBLY Before placing the Merge the interior as- Secure the interior sembly to the mount- interior assembly assembly to mounting onto the mounting plate, ing plate ensuring the plate with 2 screws. ensure the thumb turn spindle torque/blade is vertical.
- Page 20 Step 7 INSTALLING BATTERIES With door open and deadbolt fully extended, place ribbon inside compartment and insert 8 batteries (note correct -/+ polarity). After all batteries are installed, PRESS and HOLD the program button for 10S. The lock will automatically start self-check (release program button once check starts).
-
Page 21: Installing Batteries
Step 7 INSTALLING BATTERIES continued Once self-check completes ensure the lock operates smoothly by manually locking and unlocking the door using the thumb turn on the interior assembly. The deadbolt should operate smoothly without any interference or binding. If necessary, repeat steps 3 &... - Page 22 Step 8 INSTALLING WIRED DOOR SENSOR Make sure you have prepared the door sensors for installation, see step 5. LOCK SENSOR (P) Install on the interior side only. If necessary, trim tab from sensor for doors with 2-3/8" (60mm) backset. Clean surface of door and doorframe, remove film from adhesive, attach and secure close to door edge as shown.
- Page 23 Once satisfied both sensors are as level as possible, remove film from adhesive and install with arrows aligned to each other with less than a 3/4" gap between each sensor. NOTE: When properly installed, the Lockly logo blinks red when door opens and closes.
- Page 24 Hey Google or Amazon Alexa, you will need to setup the included Secure Link Wi-Fi hub and pair it with the Lockly Flex Touch Pro fingerprint deadbolt smart lock and door sensor. Before connecting Secure Link Wi-Fi hub, download the Lockly app on your smartphone.
- Page 25 Step 10 SECURE LINK WI-FI HUB SETUP To set up your Lockly Flex Touch Pro, choose an appropriate location for the Secure Link Wi-fi Hub for optimum performance (see below). For optimum connectivity, it is recommended that the hub be no further away from the lock than 30 feet (9 meters).
- Page 26 Setup Button Once you have confirmed that your Secure Link Wi-Fi Hub is ready to connect to your lock, open the Lockly App from your smartphone. Make sure you are standing between the Wi-Fi hub and Lockly smart...
- Page 27 Step 11 CONNECTING YOUR LOCKLY FLEX TOUCH PRO The App will take you through the following steps, make sure the smart lock has been properly installed. You will need your activation card that is included in the box to proceed.
- Page 28 Step 11 continued CONNECTING YOUR LOCKLY FLEX TOUCH PRO Green light is on Set Wi-Fi Select lock Bluetooth Click “Yes” when the AT&T 9:47 AM 100% 9:45 AM 100% AT&T 9:46 AM 100% AT&T AT&T 9:46 AM 100% Successfully Added...
-
Page 29: Voice Control
Alexa Skill or Lockly Action on Google. TIP: In Google Home or Amazon Alexa app, add Lockly skill for Alexa or Lockly Action on Google, then follow on screen instructions. See full list of commands, help videos, or troubleshooting your Lockly at https://Lockly.com/help... - Page 30 FCC Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 31 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développe- ment économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage. 2.
- Page 32 Download the latest detailed user/installation manuals , instructional videos, and FAQs SCAN or VISIT Lockly.com/installation To ensure you have access to the most updated and newly added features of your Lockly smart lock, please visit: www.Lockly.com/newfeatures...
- Page 33 LOCK SERIAL PGDXXXXXXXXXXXXXXXX Parts List (Not Included) ACTIVATION CODE XXXXXXXX SCAN & SAVE Labeled As Description Lock Exterior Deadbolt Screws I I I Lockly Flex Touch Pro can be fitted for both right swing doors and left swing doors. Keys...
- Page 34 FLEX TOUCH PRO Go to Lockly.com/installation to watch a video version of this installation guide.
-
Page 35: We're Here To Help
UK Patent NO. EP3176722B1 The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. , and any use of such marks by Lockly is under license. Other trademarks and trade names are those of their respective owners.
