Reading The Offset Jets Scale - 3D Systems CubePro Replacement Manual

Y-Axis Scale
Print Jet 3 Y-Axis Scale
Print Jet 1 Y-Axis Scale
Print Jet 2 Y-Axis Scale

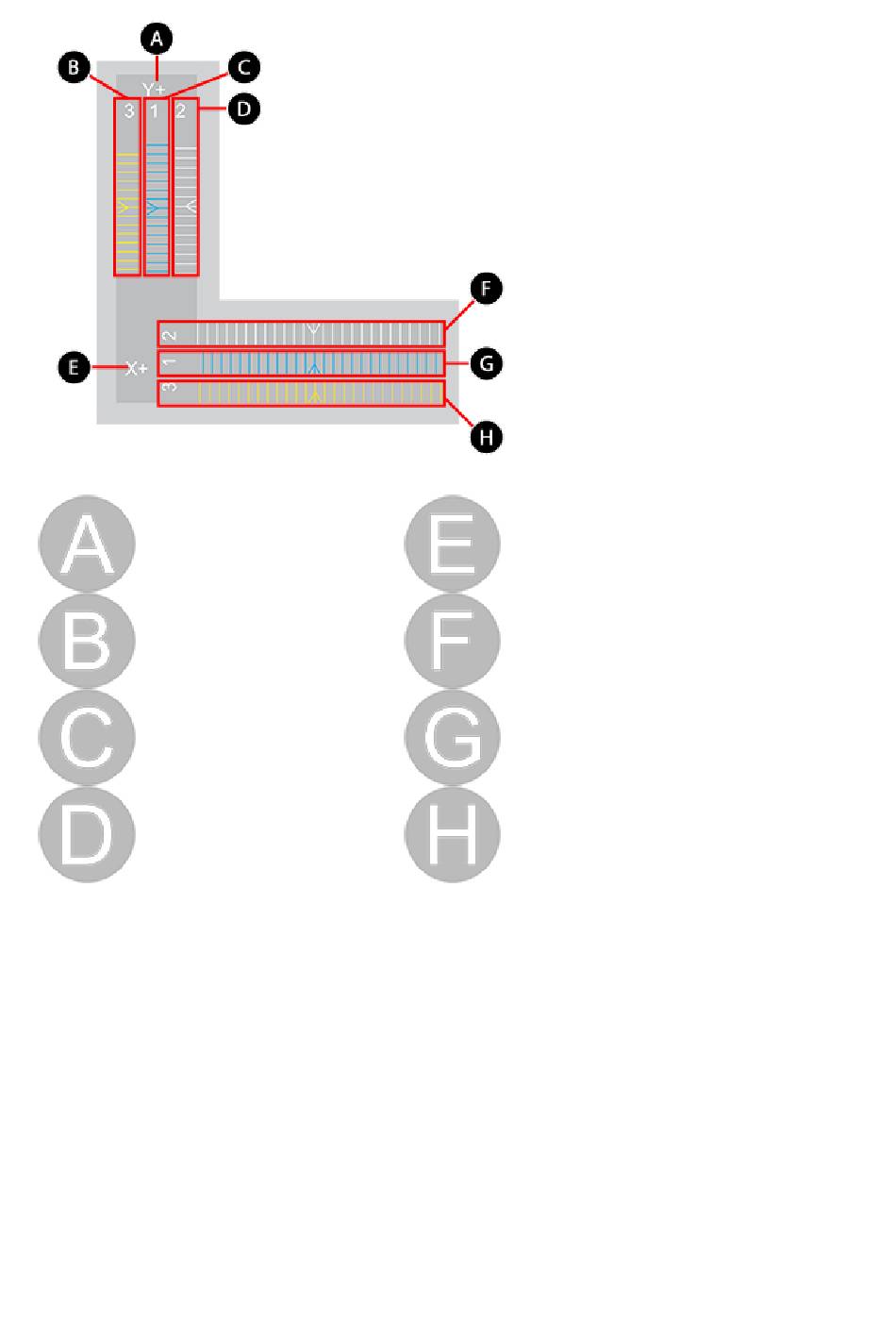

In the print scale illustration, the X+ scale (left-to-right) contains three (3) rows of printed
lines. Each line represents a print jet. The prints are numbered 1, 2 and 3 for each of the
three print jets. Print jet 1 always prints the middle scale so the scales of print jets 2 and 3
can be easily compared to it. Print jet 2 prints above print jet 1 and print jet 3 prints below
print jet 1. For printers with only two (2) print jets, the scale below the print jet 1 scale will
not be printed.
The lines on the calibration print represent an offset of 0.1 mm and should be measured
from the printed arrows in the center of the scales.
Reading the Offset Jets Scale
X-Axis Scale
Print Jet 2 X-Axis Scale
Print Jet 1 X-Axis Scale
Print Jet 3 X-Axis Scale
