42.
Verify that the nozzles of print jet 1 and print jet 3 are also touching the printpad.
43.
When all of the print jet nozzles lightly touch the print pad, power off the printer and
disconnect it from utility power.
44.

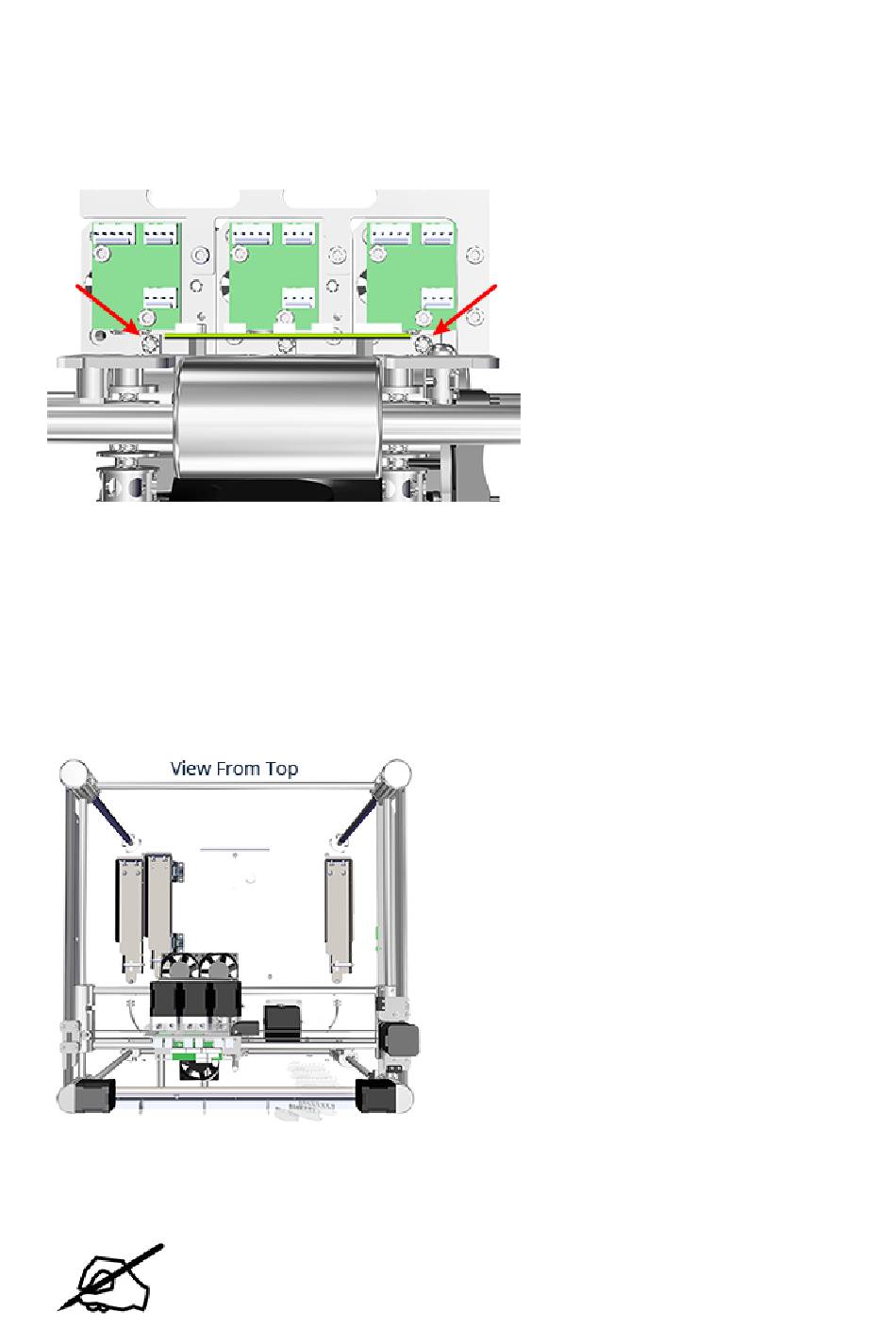

Tighten the left and right print jet T10 torx screws using a T10 torx driver.
45.
Connect the printer to utility power and power on the printer.
46.
Ensure the print pad is at its lowest position.
47.
Power off the printer and disconnect it from utility power.
48.
Holding on to the extruder carriage assembly, gently position it over the jet wiper
assembly.
49.
Verify the wiper blade meets the tapered portion (A) of the print jet nozzle. If it does,
the jet wiper is properly adjusted. Proceed to step 51.
NOTE: If the wiper tip is too high, proceed to the next step. If the wiper tip is too
low, proceed to step 50.
