Open Access Protocol (OAP)

This function makes it possible for customer applications to communicate with other connected
systems, for example the Cordless Telephone System. The protocol that is used for communi-
cation is called Open Access Protocol (OAP).
Refer to the Function Description for Open Access Protocol (OAP) for more information about
the protocol and when it can be used.

Configuration

The Message Distribution lists for the different interfaces have to be configured to send the in-
formation to the OAP Server, in order to give the client access to the information. The address of
the OAP Server is xxx.xxx.xxx.xxx/OAP.
Configuration Example
The WLAN Interface should be configured to send User Data to the OAP Server.
1) Click "Configuration" on the start page.
2) Select Other Settings > Advanced Configuration in the menu on the Configuration page.
3) Under WLAN Interface, click "Message Distribution" in the menu on the Advanced Configu-
ration page.
4) Select "Alarm".

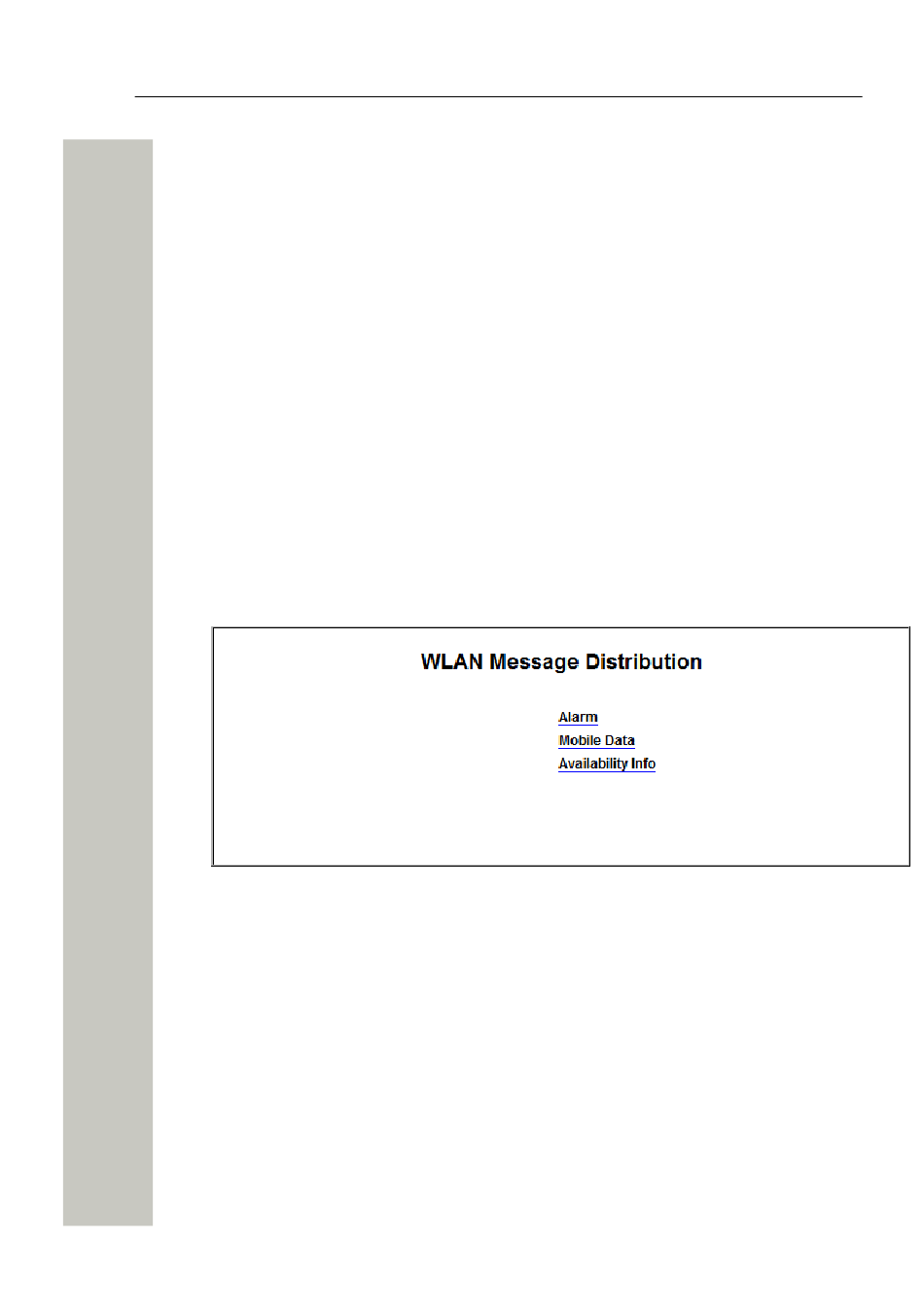

Figure 41: WLAN Message Distribution
5) Enter the address xxx.xxx.xxx.xxx/OAP in one of the address fields.
6) Click "Activate".

Importing a new OA-XML file

It is possible to import new services, and update existing services, by importing a new OA-XML
file to the module. The OA-XML description and OA-XML schema documents will also be updat-
ed when a new file is imported.
