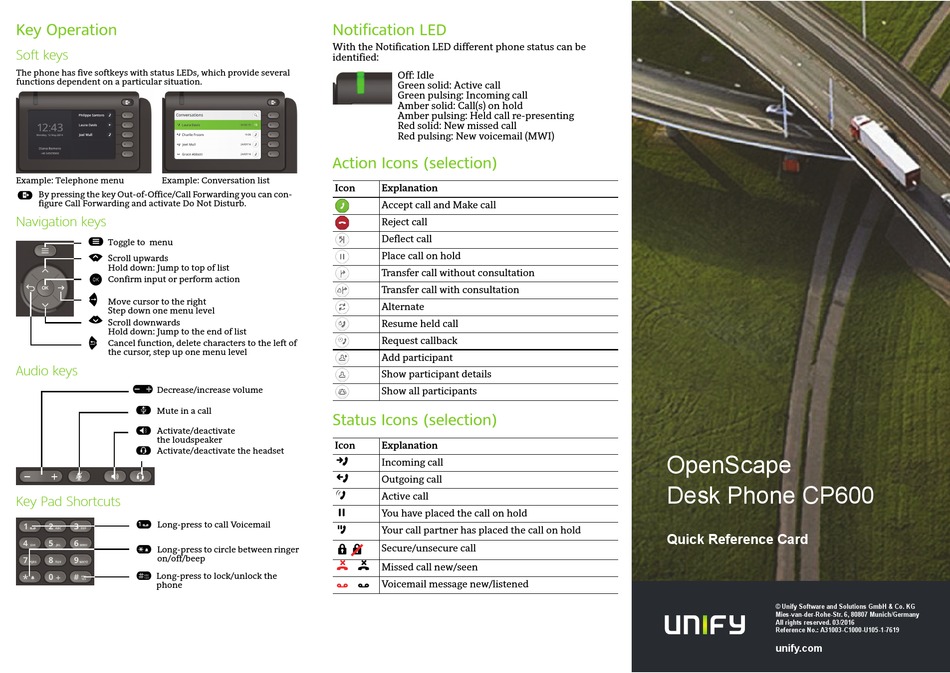

Unify OpenScape CP600 Quick Reference Card

Key Operation

Soft keys
The phone has five softkeys with status LEDs, which provide several
functions dependent on a particular situation.
Example: Telephone menu Example: Conversation list
\
By pressing the key Out-of-Office/Call Forwarding you can con-
figure Call Forwarding and activate Do Not Disturb.
Navigation keys
@
Toggle to menu
μ
Scroll upwards
Hold down: Jump to top of list
Z
Confirm input or perform action
«
Move cursor to the right
Step down one menu level
€
Scroll downwards
Hold down: Jump to the end of list
^
Cancel function, delete characters to the left of
the cursor, step up one menu level
Audio keys
"
Decrease/increase volume
;
Mute in a call
:
Activate/deactivate
the loudspeaker
.
Activate/deactivate the headset
Key Pad Shortcuts
1
Long-press to call Voicemail
*
Long-press to circle between ringer
on/off/beep
#
Long-press to lock/unlock the
phone
Notification LED
With the Notification LED different phone status can be
identified:
Off: Idle
Green solid: Active call
Green pulsing: Incoming call
Amber solid: Call(s) on hold
Amber pulsing: Held call re-presenting
Red solid: New missed call
Red pulsing: New voicemail (MWI)
Action Icons (selection)
Icon Explanation
Accept call and Make call
Reject call
Deflect call
Place call on hold
Transfer call without consultation
Transfer call with consultation
Alternate
Resume held call
Request callback
Add participant
Show participant details
Show all participants
Status Icons (selection)
Icon Explanation
c
Incoming call
b
Outgoing call
g
Active call
e
You have placed the call on hold
–
Your call partner has placed the call on hold
++
Secure/unsecure call
‰ ‰
Missed call new/seen
% %
Voicemail message new/listened

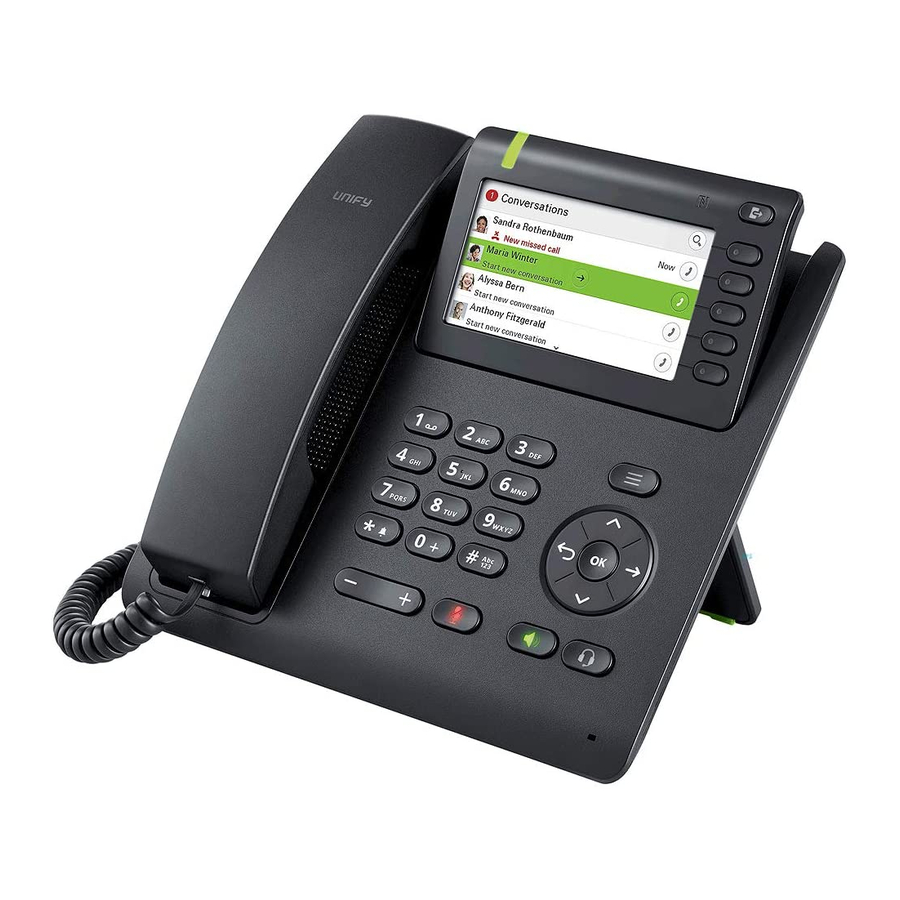

OpenScape
Desk Phone CP600
Quick Reference Card
© Unify Software and Solutions GmbH & Co. KG
Mies-van-der-Rohe-Str. 6, 80807 Munich/Germany
All rights reserved. 03/2016
Reference No.: A31003-C1000-U105-1-7619
