Completion of the assembly
2
1
Version: 2.2

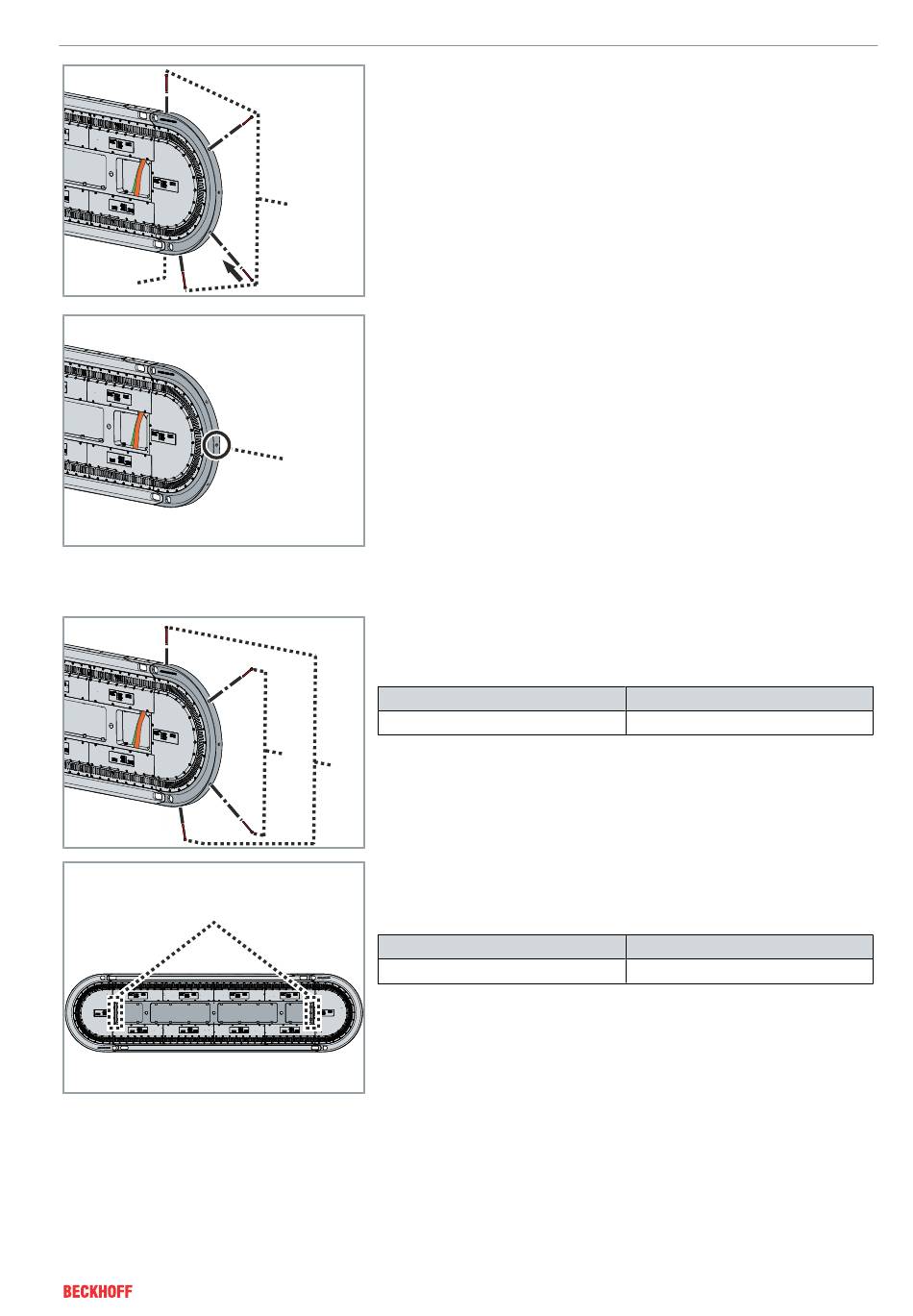

► Insert all screws 1 with threadlocker immediately into the curved
rails 2 and screw in hand tight
1
The hole 3 in the center of the curved rail is not used for fixing. You
have the option to use hole 3 for dismantling.
3
► Tighten the screws 1 in the curved rails
► Tighten the screws 2
► Observe tightening torques:
Components
Screws, M4 x 40
1
2
► Insert all screws with washers into the remaining curved mod-
ules on the machine bed 1 and screw tight
► Observe tightening torques:
Components
Screws, M5 x 20
Mechanical installation
Tightening torque [Nm]
4
Tightening torque [Nm]
6
