Mechanical installation

Guide rails

7.3
Straight guide rails
7.3.1
1
3
1
72 ───
7.3.1

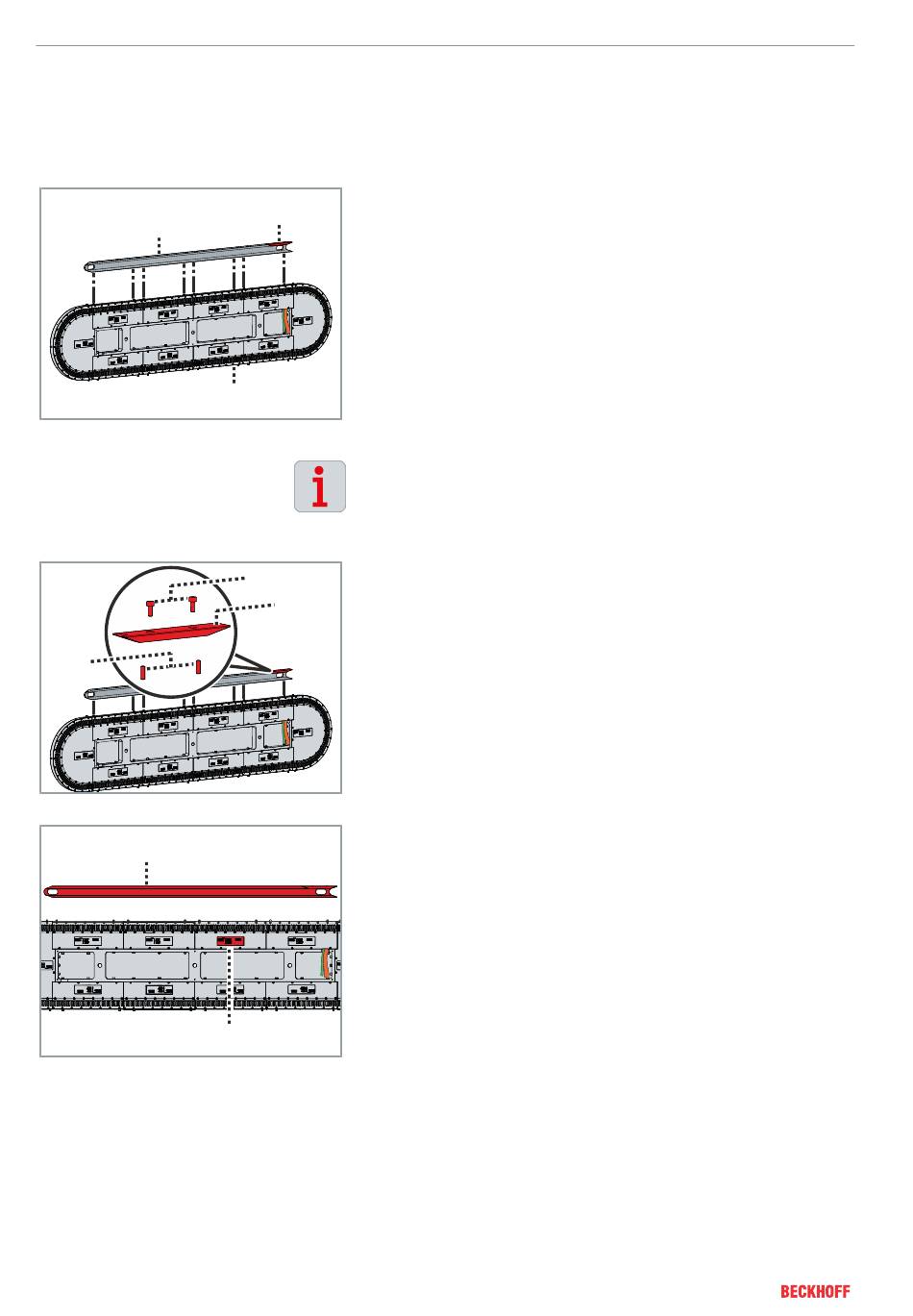

► Always use guide rail 1 with lock 2 on top of the installed system
2
3
3
Pre-mounted lock
A lock is available for installing the movers on the guide rails. The
lock must be replaced by a rail on support during the assembly.
Further information is given in the course of the mechanical instal-
lation in the chapter "Mover", [Page 79].
The screws 1 with the lock 2 and the locating pins 3 are pre-
1
mounted on the guide rail.
2
► Observe the alignment of the guide rail 1
The name plate 2 serves as an orientation aid with regard to the
side of the complete system from which you have to observe the
alignment of the guide rail 1.
2
