Beckhoff eXtended Transport System Operating Instructions Manual page 67

1+2
4+5
1
4
3
Version: 2.2

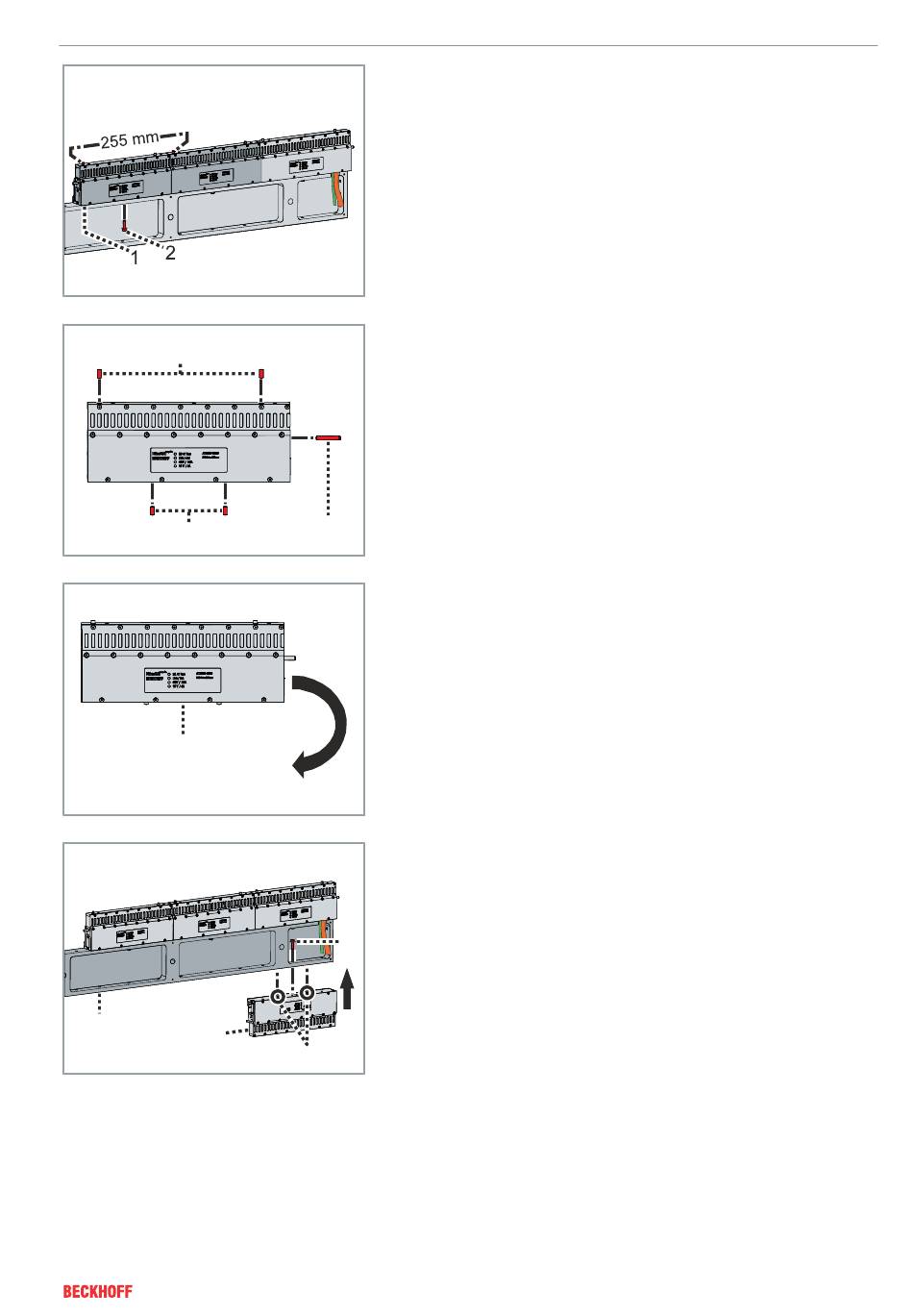

► Connect further modules 1 in line and fix them hand tight in the
center to the machine bed with screw and washer 2
► Checking the distance between the outer edges of the locating
pins with a vernier caliper. It should be 255 mm
► Insert short locating pins 1 and 2 on the top of the module
► Insert long locating pin 3 at the side
► Insert short locating pins 4 and 5 underneath the module
3
► Then rotate module 1 by 180 degrees
► Position module 3 with the locating pins 2 in the slots in the ma-
chine bed 4
► Fix module 3 hand tight in the center with a screw and washer 1
► Make sure that the module 3 is slightly movable in the slots
1
2
Mechanical installation
XTS ─── 67
