2
1
1
2
1
3
2
Version: 2.2

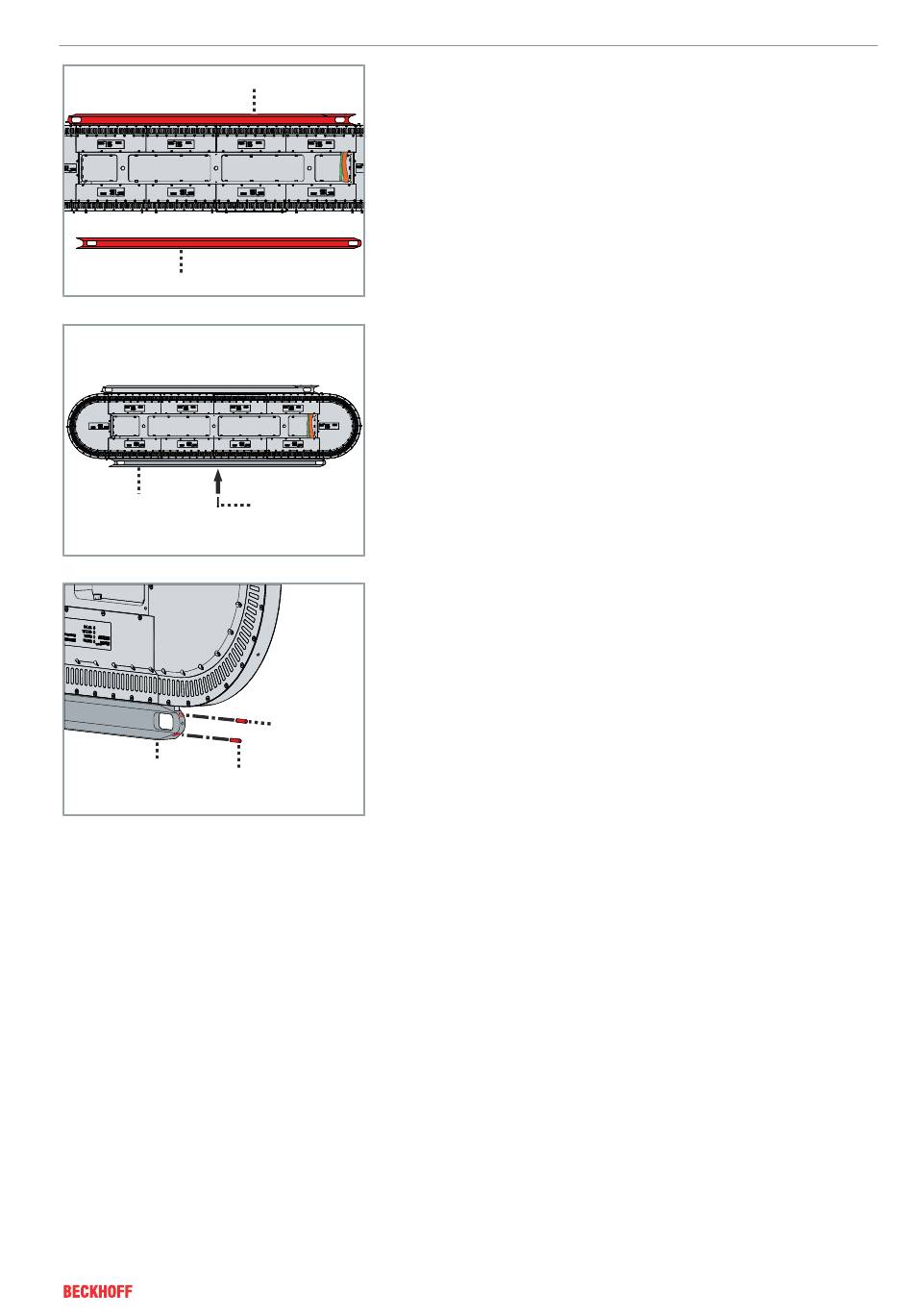

► Observe the alignment of the guide rails 1 and 2 to each other
► The guide rails on the lower side of the XTS are now mounted
horizontally and vertically mirrored
► Fix the opposite guide rail 1 with screw 2 and threadlocker hand
tight again
► Insert locating pins 1 and 2 into the opposite guide rail 3
XTS
Mechanical installation
───
75
