Section 2: Platforms; Install Platforms - EZ-ACCESS Modular Ramp Assembly Manual

2. PLATFORMS
2.1. INSTALL PLATFORMS: If your system does not include a platform, skip to 'CONNECT
RAMP SECTIONS' of this instruction guide. It is strongly suggested that all platforms and
ramps be installed before installing handrails (see 'HANDRAILS').

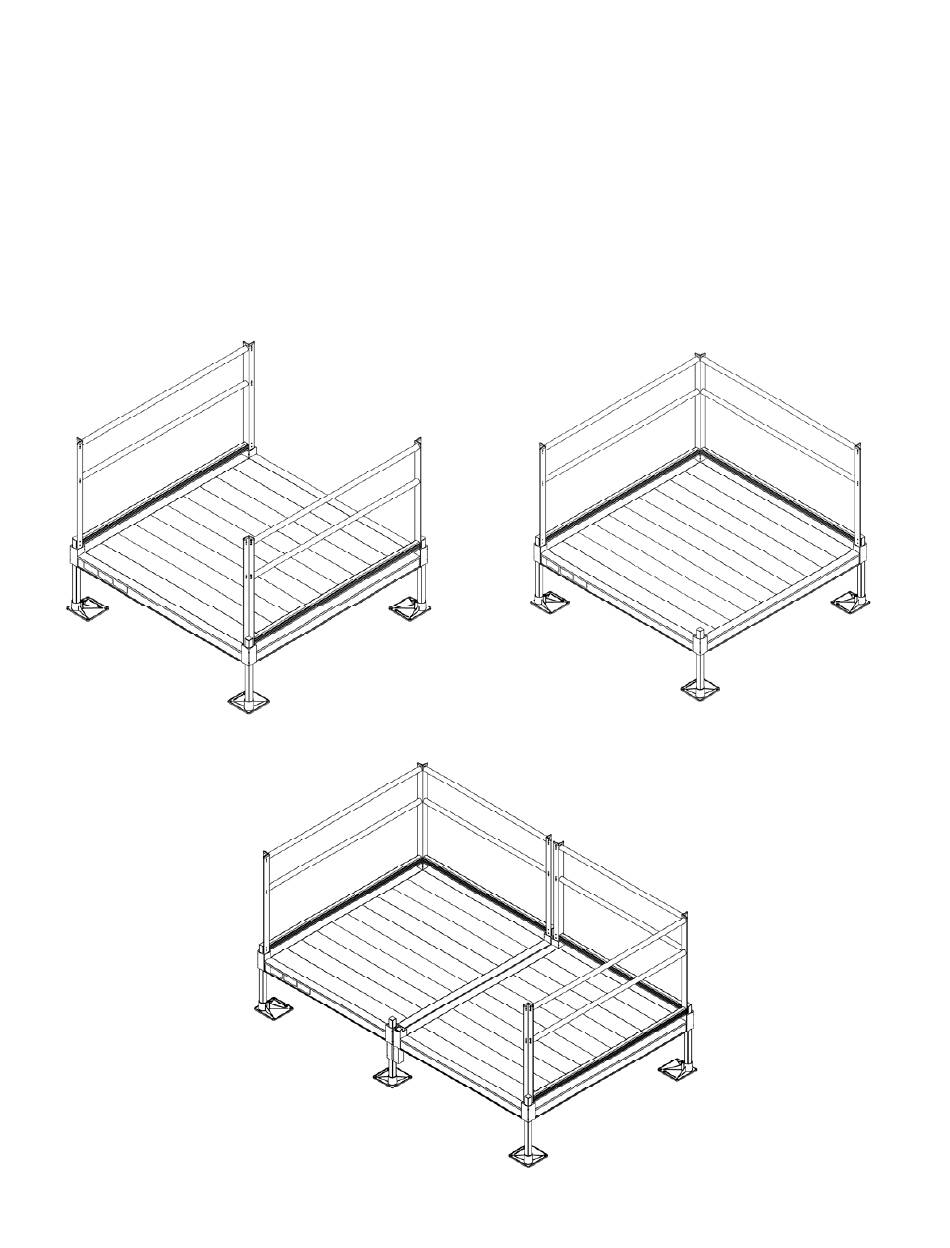

2.1.1. There are three types of platforms (one or more of these platform
FIG. 2.1
arrangements may be used in an installation). All three require the same
procedure for assembly except for FIG.2.3 which requires an additional
MPPC (PLATFORM TO PLATFORM CONNECTOR).
Universal platform straight configuration
FIG. 2.1
Universal platform turn configuration
FIG. 2.2
Platform turn back configuration (two 5' x 4' platforms
FIG. 2.3
shown combined to make 5' x 8' turn back platform).
FIG. 2.3
FIG. 2.2
- 7 -
