Instructions

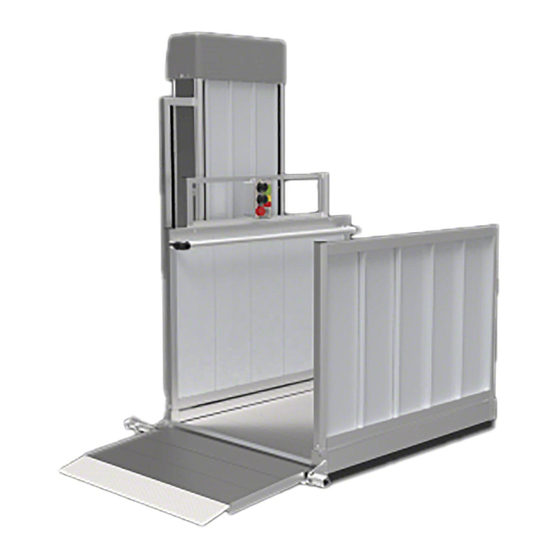

Passport® Top Landing Gate Hinge Replacement
© Homecare Products, Inc. All rights reserved. All text and images contained in this document are
proprietary and may not be shared, modified, distributed, reproduced, or reused without the express
®
written permission of EZ-ACCESS
, a division of Homecare Products, Inc.
Manufactured in the USA
PN 13139 REV 10-15-14
Advertisement
Table of Contents
Related Manuals for EZ-ACCESS Passport
Summary of Contents for EZ-ACCESS Passport
- Page 1 Instructions Passport® Top Landing Gate Hinge Replacement © Homecare Products, Inc. All rights reserved. All text and images contained in this document are proprietary and may not be shared, modified, distributed, reproduced, or reused without the express ® written permission of EZ-ACCESS , a division of Homecare Products, Inc.
- Page 2 INSTRUCTIONS ® Passport Top Landing Gate Hinge Replacement ATTENTION INSTALLER: • For residential use only! • Read all instructions, labels, and product warnings prior to use. • Please leave this ASSEMBLY MANUAL with the end user. ATTENTION END USER: •...
- Page 3 • Check that all parts are in good condition. • Use caution at all times. Proper maintenance and upkeep to the system and all Passport® system components is vital. • Regularly check that all parts are in good condition and check the system for damage. Ensure all fasteners and locking mechanisms are in place and tightened.
- Page 4 PAN HEAD PHILLIPS MACHINE SCREW 1/4"-20 X 5/8" SS HEADLESS SOCKET HEAD SET SCREW 5/16"-18 X 5/8" SS PAN HEAD PHILLIPS MACHINE SCREW #10-24 X 3-1/2" SS #10-24 LOCKNUT SS #10 X 7/16" OD FLAT WASHER SS PASSPORT GATE HINGE REPLACEMENT INSTRUCTIONS Page | 4...
- Page 5 6. REMOVING THE EXISTING TOP LANDING GATE AND GATE HINGES Remove the post cap from the gate frame post (FIG. 1). Loosen or remove the two 5/16” set screws in each hinge connector bar (FIG. 1). Slide the entire Top Landing Gate up and out of the gate frame post. Manually rotate the latch out of the way as needed to remove the gate.
- Page 6 7. INSTALLING THE REPLACEMENT HINGES Install hinges using the #10-24 x 3-1/2” pan head machine screws, # 10-24 locknuts and #10 washers included in the hinge replacement kit (FIG. 3). Install the #10-24 x 3-1/2” pan head machine screws with the head of the machine screw on the lift side of the Top Landing Gate, the #10 washers under the head and the #10-24 locknuts in the hinge as shown.
- Page 7 Attach the replacement hinge connector bars to the replacement hinges using two 1/4”-20 x 5/8” pan head machine screws in the two tapped holes closest to the Top Landing Gate when the hinge connector bars and hinges are oriented as shown (FIG. 4). There are four tapped holes for hinge mounting in the hinge connector bar but only the two closest to the Top Landing Gate are used (depending on which side of the Top Landing Gate the hinges are mounted).
- Page 8 Run the Passport® VPL up and down and test the Top Landing Gate operation as described in Section 6, Steps 12 & 13 of the Passport® VPL Installation Manual (Part No. 12274). To download manuals, obtain instructions, warnings, and labels, please call 1-800-258-8503 or visit www.ezaccess.com.
