6. OPTIONAL EQUIPMENT
6.1. CONNECTOR – RAMP HR TO RAMP HR: Connects ramp handrails on the inside
corner of a 90° turn or turn back. Because each installation is unique, the round tubes
connecting the handrails must be cut to fit at the job site. NOTE: A minimum of
approximately 6" is needed between the outside of a platform and both ramp side rails to
install the connector.

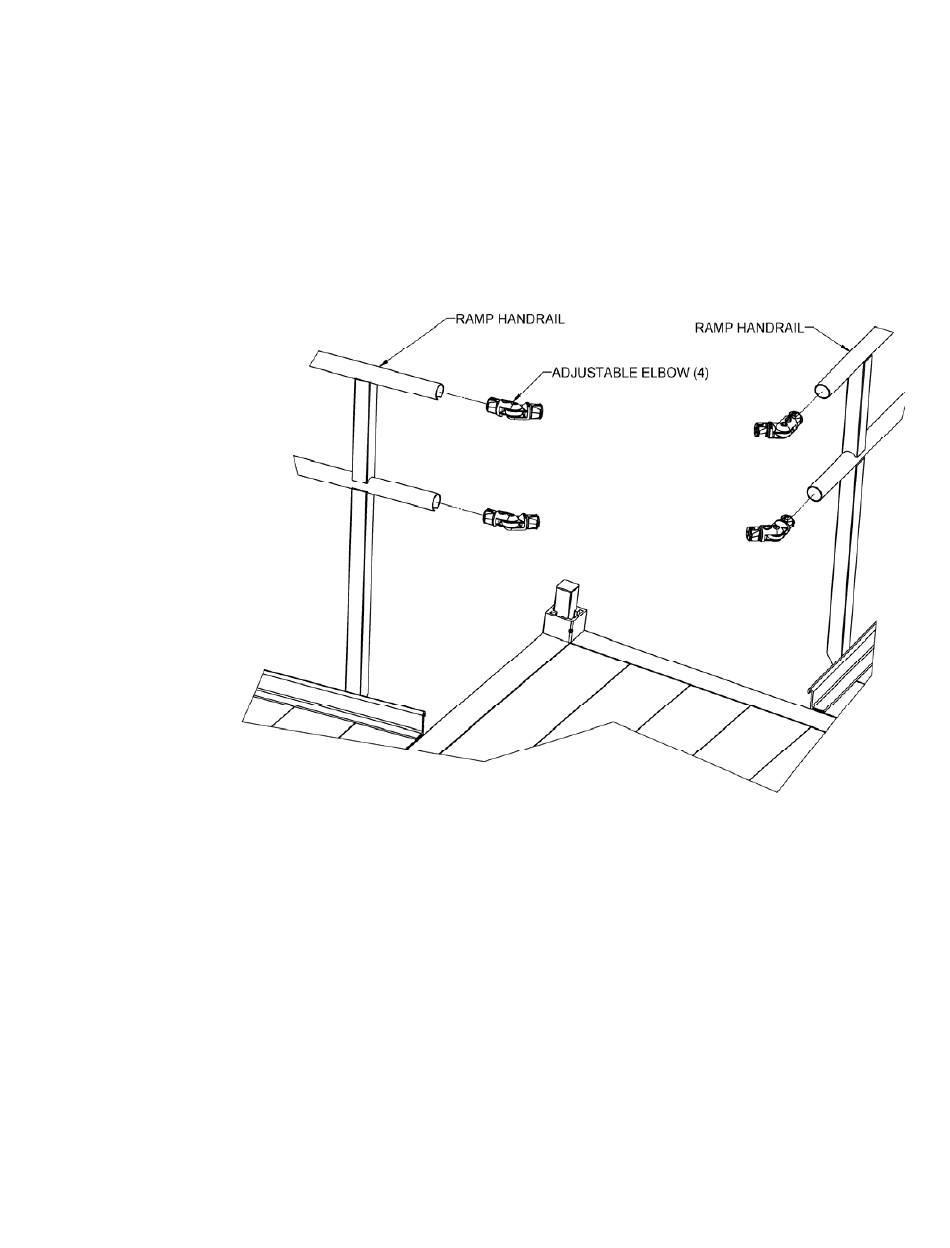

6.1.1. Slide an adjustable elbow into each handrail tube (FIG. 6.1).
6.1.2. Position both until they are aligned (do not tighten), and measure the distance
FIG. 6.1
between the two larger round faces (FIG. 6.2). NOTE: The gap in the upper
and lower handrail will be different. Be sure to measure both before cutting
the round tube.
