Install Ground Transition Ramp - EZ-ACCESS Modular Ramp Assembly Manual

3.4.

INSTALL GROUND TRANSITION RAMP:

3.4.1. The MRGT (RAMP GROUND TRANSITION) consists of two sections that
3.4.2. Pre-assemble the ground transition by first sliding the two sections together
3.4.3. After assembly, lift the lowest end of the ramp, bring the ground transition into
3.4.4. Holes and fasteners are included for anchoring into wood or concrete. Other
3.4.5. If connecting the lowest end of the ramp to an MLP (LANDING PAD) use an

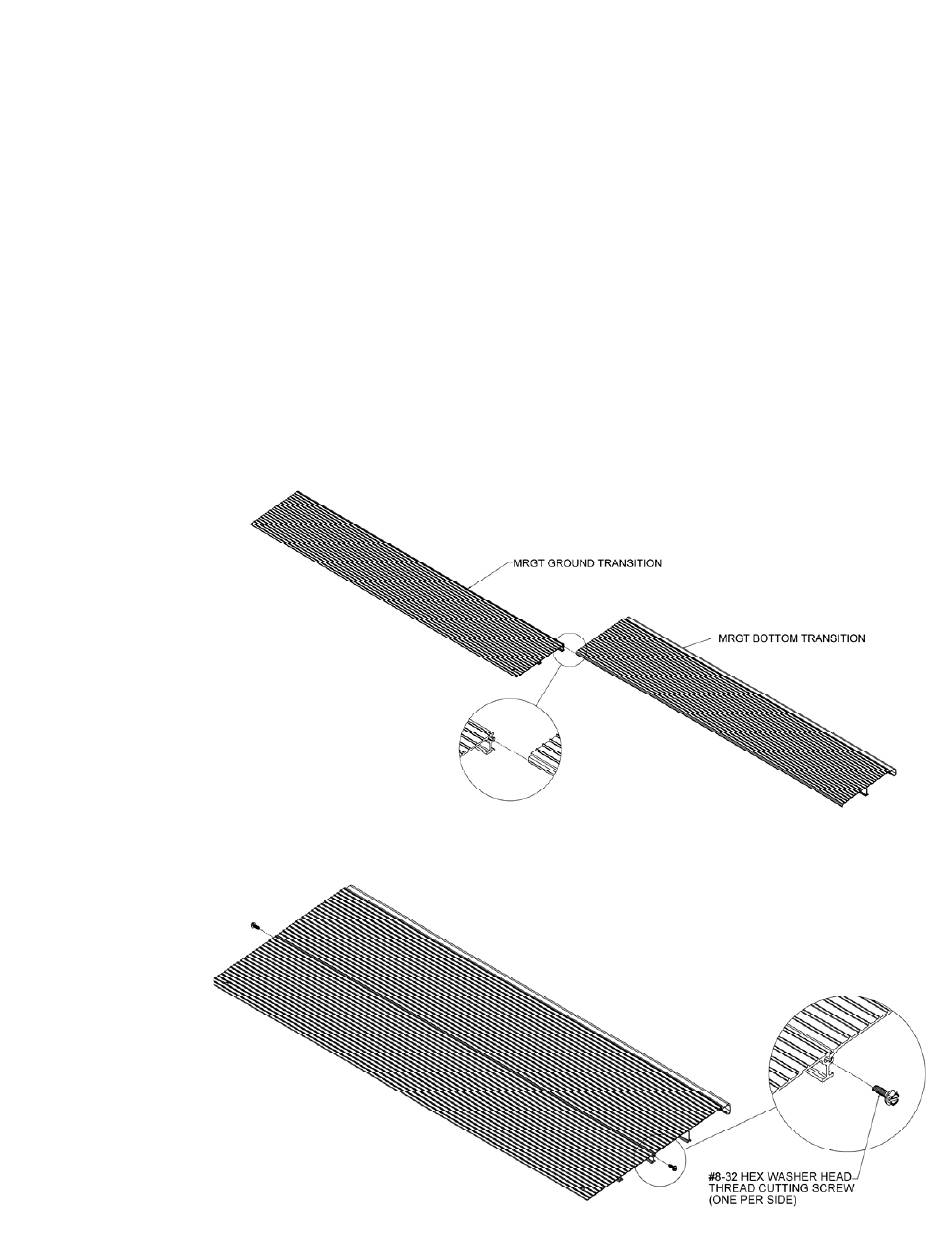

FIG. 3.10
FIG. 3.11
need to be connected together, then installed into ramp. IMPORTANT: The
ground transition is only designed to transition from the lowest ramp in the run
to the ground and should not be used in any other location.
(FIG. 3.10) then install #8-32 hex washer head thread cutting screws into the
screw slots on both sides where the sections intersect as shown in FIG. 3.11.
the ramp end tread until the "hook" is engaged and rotate into place (FIG.
3.12) then set on the ground (FIG. 3.13). NOTE: The hex washer head
screws will keep the sections from sliding with respect to each other but the
sections can still be separated until they are installed in the ramp and resting
on the ground.
methods may be used when anchoring into other surfaces.
MRLT (RAMP LOWER TRANSITION) instead of a ground transition (see
Section 6).
- 17 -
