4. HANDRAILS
4.1.

PRE-ASSEMBLE HANDRAILS:

4.1.1. One pair of handrails is required for each ramp section. Handrails are
4.1.2. In a multiple ramp run configuration, handrail connectors (MRRC –
interchangeable.
CONNECTOR RAMP TO RAMP) are used to join handrails together. Refer to
FIG. 4.1 for the following steps:
Slide connector into ends of handrail tubes. NOTE: If connector
4.1.2.1.
does not fit in the tube, use pliers to slightly compress the
connector while sliding into handrail tube.
4.1.2.2.
Slide the next handrail section over the connectors, unsuring that
the handrail tubes are pushed firmly towards each other.
4.1.2.3.
Join all handrails together in this manner.

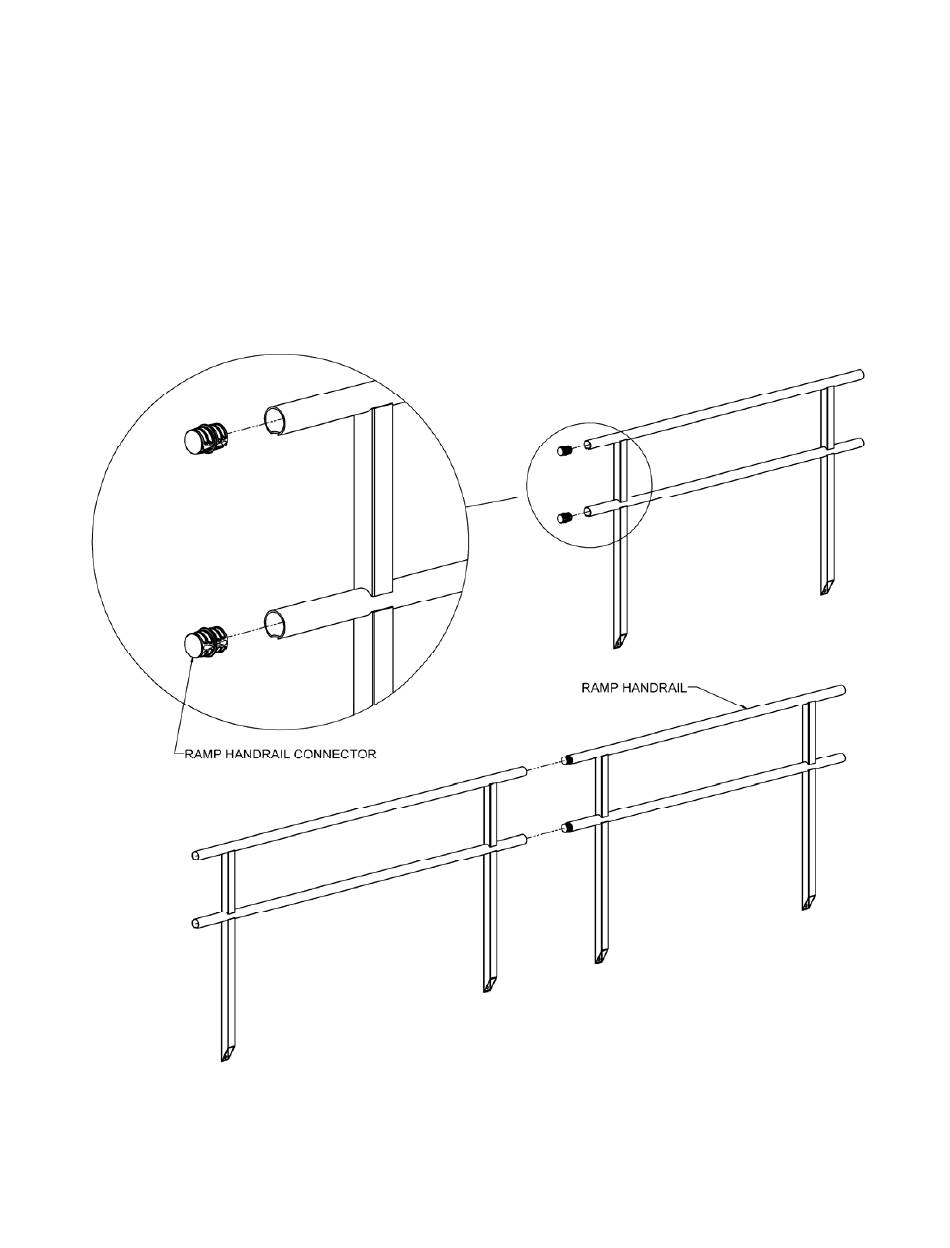

FIG. 4.1
